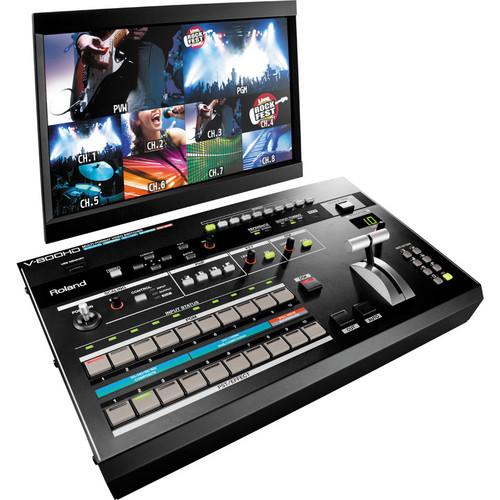

Roland V-800HD Multi-Format Video Switcher V-800HD
  • Manufacturer: Roland
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Production Switchers
  • Safety instructions
  • Startup and operation of the production switchers
  • Tips for setting up your Roland
  • Settings and expert assistance
  • Contact Roland service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Roland V-800HD Multi-Format Video Switcher V-800HD, which address similar problems with connecting and setting up Production Switchers Roland.



User manual for the Roland V-800HD Multi-Format Video Switcher V-800HD

The user manual for the Roland V-800HD Multi-Format Video Switcher V-800HD provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

The Roland V-800HD Multi-Format Video Switcher is a true multi-format video mixer, meaning that it doesn't require input sources to be matched to output resolutions. Every input has it's own broadcast quality scaler that can individually scale, stretch, crop and zoom each source as needed for the output resolution chosen. And most every type of digital and analog input is available, in video or computer format. On the output side, a built-in HDMI multi-viewer output provides a convenient monitoring solution. In addition to video channels, two channels are available for still images, which upload by USB memory stick or frame grab.

Ten assignable video cross-points allow the reordering of channel buttons, especially useful when sudden changes in camera lines or differences in formats create blank spaces between select buttons on the bus. A dedicated composite output allows for a down-converted SD signal to always be ready for use in archiving to a DVD recorder or to an encoder for streaming. Multi-Zoom functionality can be enabled when one video input is shared internally with up to three more inputs. The scaler for each input can zoom into any position in the video image to give the appearance that additional cameras are connected, thus creating a virtual multi-camera environment.
If you own a Roland production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Roland V-800HD Multi-Format Video Switcher V-800HD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Roland V-800HD Multi-Format Video Switcher V-800HDDownload user manual for Roland V-800HD Multi-Format Video Switcher V-800HD
(PDF file, 0.63 MB)
Additional parameters of the Roland V-800HD Multi-Format Video Switcher V-800HD:
Specifications
    Processing Y:Pb:Pr, 4:4:4, 10-bit
    Supported Formats Video:
    480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p. The SDI input can input the same frame rate as a setup menu setting. (1080/50p conforms to VESA DMT Version 1.0 Revision 10.)

    PC:
    640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920x1080/60 Hz, 1920 x 1200/60Hz

    For all but the last three PC formats:
    Output refresh rate is 75 Hz when frame rate is set to 50 Hz

    920 x 1200/60Hz:
    Reduced blanking

    800 x 600/60Hz:
    When reference is set to external, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.
    Still Image Windows Bitmap File (.bmp)
    Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed
    Input/Output Level and Impedance Composite: 1.0 Vp-p, 75 ohms
    Analog HD/RGB: 0.7 Vp-p, 75 ohms (H, V : 5 VTTL)
    Inputs 4x 3G/HD/SD-SDI, conforms to SMPTE 424M (Level-A), 292M, 259M-C
    4x DVI-I (select between DVI-A or DVI-D/HDMI by switches next to the connector)
    4x 15-pin D-sub Component and Analog RGB combined
    4x Composite on BNC
    Outputs 2x 3G/HD/SD-SDI, conforms to SMPTE 424M (Level-A), 292M, 259M-C
    2x DVI-D
    1x HDMI for multi-view monitor
    1x 15-pin D-sub Component and Analog RGB combined
    1x Composite on BNC
    Other Connectors 2x Tally on mini D-sub 15-pin (max input:12V, 200 mA open collector type)
    1x RS-232C D-sub 9-pin
    Reference: BNC (in, through), Black Burst (sync to frames), Bi-Level, Tri-Level
    MIDI 5-pin DIN (in, out, through)
    1x USB type A (for USB memory)
    Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
    Power Consumption 75 W
    Dimensions 19 x 10.8 x 4.6" (48.2 x 27.4 x 11.6 cm)
    Weight 12.1 lb (5.5 kg)
    Packaging Info
    Package Weight 16.2 lb
    Box Dimensions (LxWxH) 21.0 x 14.4 x 9.0"
    The user manual for the Roland V-800HD Multi-Format Video Switcher V-800HD can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Roland users keep a unique electronic library for Roland production switcherss, where you can use our link to download the user manual for the Roland V-800HD Multi-Format Video Switcher V-800HD.

    The user manual lists all of the functions of the Roland V-800HD Multi-Format Video Switcher V-800HD, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Roland service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Roland V-800HD Multi-Format Video Switcher V-800HD. User manuals are also available on the Roland website under Professional Video - Studio & EFP Equipment - Production Switchers.
