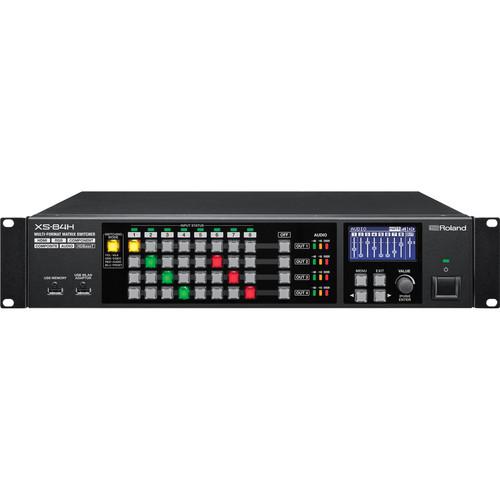

Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H
Click to enlarge image

We recommend checking out our discussion threads on the Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H, which address similar problems with connecting and setting up Routers & Switchers Roland.



User manual for the Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H

The user manual for the Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

The Roland XS-84H 8x4 Multi-Format AV Matrix Switcher is designed for fixed installations requiring high-quality integrated video and audio conversion and switching.
If you own a Roland routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Roland XS-84H 8x4 Multi-Format AV Matrix Switcher XS-84H:

Go To

Video
Processing 4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors 8 x HDMI (Type A) HDCP Supported
8 x RGB/Component/S-video/Composite (HD DB-15 type)
Output Connectors 4 x HDMI (Type A)
4 x HDBase T (RJ-45)
Input/Output Level and Impedance RGB/Component
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms

Composite/S-video
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms
Supported Input Formats HDMI : up to 1080p/59.94, up to 1920x1200/60
Component : up to 1080p/59.94
RGB : up to 1920x1200/60 Reduced Blanking (Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed)
Composite : 480i/59.94, 576i/50
S-video 480i/59.94, 576i/50
Still Image: Windows® Bitmap File (.bmp)
Supported Output Formats HDMI : up to 1080p/59.94, up to 1920x1200/60
HDBaseT : up to 1080p/59.94, up to 1920x1200/60
Effects Transition : Cut
Composition : PinP
Others : Vertically flip, Horizontally flip, Rotated 90 degrees
Audio
Audio Processing Sampling Rate : 24-bit/48 kHz
Input Connectors Digital : 8 x HDMI (Type A)
Analog : 8 x 5-pin terminal block connector
Output Connectors Digital : 2 x HDMI Type A (19 pin)
Analog : 2 x 5-pin terminal block connector
Input Level and Impedance Ch 1 to 2 : -60 to +4dBu (Maximum: +22 dBu), 10k ohms (Gain 0 to 23 dBu), 5k ohms (Gain 24 to 64 dBu)
Ch 3 to 8 : +4dBu (Maximum: +22 dBu), 8.5k ohms
Output Level and Impedance Ch 1 to 4 : +4dBu (Maximum: +22 dBu), 600 ohms
Audio Formats HDMI : Linear PCM, 24bit, 48kHz, 8ch
Effects Input : High-pass filter, 4-band equalizer, Gate/Expander, Compressor
Output : 4-band equalizer, Gate/Compressor, Delay
Other
Connectors 1 x D-Sub 9 pin type for RS-232C
1 x RJ-45 for Ethernet
2 x USB A Type for USB memory, for WNA-1100RL
Display 2 x color LCD 128 x 64 dots
Power Power Supply : AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption : 50w
Dimensions 18.9 x 13.1 x 3.5" / 481 x 334 x 88 mm
Weight 11.7 lb / 5.3 kg
Packaging Info
Package Weight 18.85 lb
Box Dimensions (LxWxH) 22.677 x 18.661 x 8.583"
