User manual Rolls MX422 - 4 Channel Field Audio Mixer MX422

Operating instructions and pdf manual for use - Rolls MX422 - 4 Channel Field Audio Mixer MX422 User manual, User manual Rolls MX422 - 4 Channel Field Audio Mixer MX422, Rolls, MX422, 4, Channel, Field, Audio, Mixer, MX422, Video


User manual for Rolls MX422 - 4 Channel Field Audio Mixer MX422

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Rolls  MX422 - 4 Channel Field Audio Mixer MX422
  • Manufacturer: Rolls
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Field Mixers
  • Safety instructions
  • Startup and operation of the field mixers
  • Tips for setting up your Rolls
  • Settings and expert assistance
  • Contact Rolls service
  • Troubleshooting
  • Warranty information
  • Price: 456 USD
We recommend checking out our discussion threads on the Rolls MX422 - 4 Channel Field Audio Mixer MX422, which address similar problems with connecting and setting up Field Mixers Rolls.



User manual for the Rolls MX422 - 4 Channel Field Audio Mixer MX422

The user manual for the Rolls MX422 - 4 Channel Field Audio Mixer MX422 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Field Mixers.

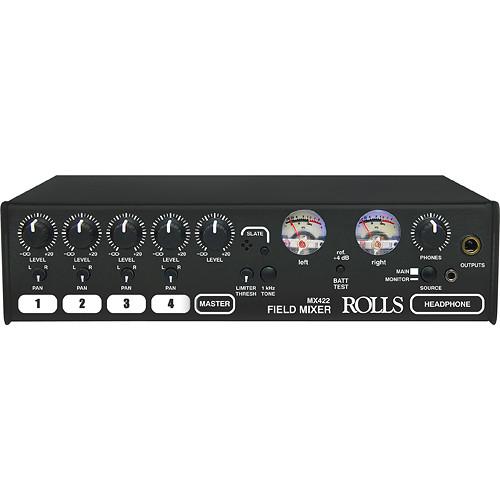

The Rolls MX422 is a 4-channel professional field mixer designed for Electronic Field Production (EFP), Electronic News Gathering (ENG), video, and more. The mixer includes a feature set that meets the demands of the professional field audio engineer while remaining at a modest price point. The MX422 features 4 balanced XLR inputs that are capable of accepting line level or microphone signal. The stereo XLR outputs feature a -30dB pad switch for feeding low impedance inputs. Additional features include a low-cut filter switch for minimizing low frequency noise and a built-in limiter for controlling noise cause by excessive levels.
If you own a Rolls field mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rolls MX422 - 4 Channel Field Audio Mixer MX422 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Rolls  MX422 - 4 Channel Field Audio Mixer MX422Download user manual for Rolls MX422 - 4 Channel Field Audio Mixer MX422
(PDF file, 0.68 MB)
Additional parameters of the Rolls MX422 - 4 Channel Field Audio Mixer MX422:
Inputs 4 - Balanced XLR Female
Output 2 - L/R Balanced XLR Male
Monitor/Headphone Out 1/4" Phone
3.5mm Mini
ALT I/O AUX Input: 3.5mm mini
Monitor Input: 3.5mm mini
Link Input/Output No
Impedance Mic: 10k Ohms XLR Balanced
Source: 22k Ohms RCA
Gain +65 dB
Hum & Noise 115 dB
Frequency Response 20Hz to 30kHz +0, -3dB
Distortion Not Specified by Manufacturer
Metering Calibrated VU Metering
Controls Channel Level
Pan
Limiter Threshold
1kHz Tone
Headphone Level
Trim (Gain)
Phantom power (+48 V)
Low-Cut Filter
Battery Select
Control Voltage Out No
Phantom Power +48 Volt
Operating Temperature Not Specified by Manufacturer
Power 12VDC / 200mA or 9V Batteries
Dimensions 9.5 x 7.25 x 2.375" (24.13 x 18.415 x 6.0325cm)(WxDxH)
Weight 4 lbs
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 14.0 x 8.8 x 4.1"
The user manual for the Rolls MX422 - 4 Channel Field Audio Mixer MX422 can be downloaded in .pdf format if it did not come with your new field mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rolls users keep a unique electronic library for Rolls field mixerss, where you can use our link to download the user manual for the Rolls MX422 - 4 Channel Field Audio Mixer MX422.

The user manual lists all of the functions of the Rolls MX422 - 4 Channel Field Audio Mixer MX422, all the basic and advanced features and tells you how to use the field mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rolls service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rolls MX422 - 4 Channel Field Audio Mixer MX422. User manuals are also available on the Rolls website under Pro Audio - Location Sound - Field Mixers.
