User manual Rycote Cyclone Windshield Kit (Large) 089101

Operating instructions and pdf manual for use - Rycote Cyclone Windshield Kit (Large) 089101 User manual, User manual Rycote Cyclone Windshield Kit (Large) 089101, Rycote, Cyclone, Windshield, Kit, Large, 089101, Video


User manual for Rycote Cyclone Windshield Kit (Large) 089101

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Rycote  Cyclone Windshield Kit (Large) 089101
  • Manufacturer: Rycote
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Shotgun Wind Protection
  • Safety instructions
  • Startup and operation of the shotgun wind protection
  • Tips for setting up your Rycote
  • Settings and expert assistance
  • Contact Rycote service
  • Troubleshooting
  • Warranty information
  • Price: 699 USD
We recommend checking out our discussion threads on the Rycote Cyclone Windshield Kit (Large) 089101, which address similar problems with connecting and setting up Shotgun Wind Protection Rycote.



User manual for the Rycote Cyclone Windshield Kit (Large) 089101

The user manual for the Rycote Cyclone Windshield Kit (Large) 089101 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Shotgun Wind Protection.

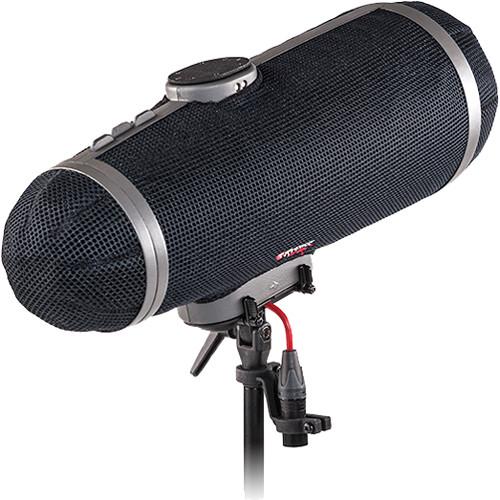

Ideal for a multitude of outdoor ENG, broadcast, and film applications, the Cyclone Windshield Kit from Rycote features a two-piece "Z-Locking" basket design that magnetically affixes around your microphone, isolating the mic from wind-caused noise. Up to 50 dB of reduction can be achieved with use of the Cyclone Windshield alone, and >60 dB is possible when used with a Windjammer on top of it. Increased transparency is achieved due to the cone-like shape, which reduces reflections from parallel surfaces in the recording environment, to provide clean audio recordings during outdoor interviews, location shoots, and more. It's designed to provide wind noise reduction that exceeds traditional modular-style windshield/windjammer combined performance.

The Cyclone introduces a "multi-suspension" design that provides isolation against handling noise, cable-borne noises, and windshield basket self-noise. This multi-suspension design inhibits noise and vibration induced by the windshield itself from being mechanically transmitted and thereby improves recording quality.

The kit includes the Cyclone Suspension fitted with 72-shore Universal Lyres, fitted Cyclone XLR cable, large Cyclone Windshield, pair of Universal Lyres 62-shore for lightweight microphones, and a hex key driver for making adjustments to the Lyres on the suspension.
If you own a Rycote shotgun wind protection and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rycote Cyclone Windshield Kit (Large) 089101 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rycote Cyclone Windshield Kit (Large) 089101:
Compatibility Mic Type: Shotgun or rifle microphones

Mic Lengths: 250 mm - 280 mm

Mic Diameters: 19 mm - 25 mm

Max. Weight of Mic: 180 g

Mic Connector: XLR 3-pin female

Output Connector: XLR 3-pin male



Performance Wind Attenuation: 50 dB (without Windjammer), >60 dB (with Windjammer), measured total power - 10Hz - 20kHz, no weighting, under real wind conditions

Frequency Response: Substantially flat (+0db, -3dB), measured differential twin microphone technique, 10Hz

Handling Isolation: Typically >10dB, dependent on microphone type and LF band shaping

Temperature Range: Safe operating range - min. -20°C (-5°F), max. 38°C (100°F)

Dimension Overall Length: 18.5" (470 mm)

Body Length: 13.0" (330 mm)

Max. Diameter: 6.2" (157 mm)

Height: 8.7" (220 mm)



Weight 20.8 oz (590 g)
Packaging Info
Package Weight 2.7 lb
Box Dimensions (LxWxH) 19.2 x 9.2 x 7.2"
The user manual for the Rycote Cyclone Windshield Kit (Large) 089101 can be downloaded in .pdf format if it did not come with your new shotgun wind protection, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rycote users keep a unique electronic library for Rycote shotgun wind protections, where you can use our link to download the user manual for the Rycote Cyclone Windshield Kit (Large) 089101.

The user manual lists all of the functions of the Rycote Cyclone Windshield Kit (Large) 089101, all the basic and advanced features and tells you how to use the shotgun wind protection. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rycote service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rycote Cyclone Windshield Kit (Large) 089101. User manuals are also available on the Rycote website under Pro Audio - Location Sound - Shotgun Wind Protection.
