User manual for the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012

The user manual for the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.

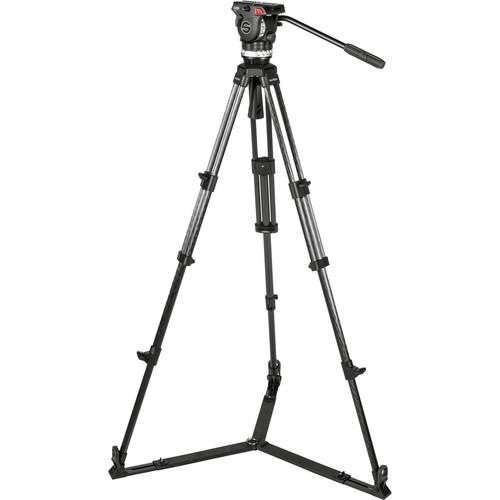

The Ace L GS CF Tripod System with Ground Spreader from Sachtler is a tripod system for payloads up to 13.2 pounds, making it suitable for both DSLR cameras and medium-sized camcorders. The Ace L system provides professional-level performance in a versatile package weighing only 9 pounds. It features the Ace L fluid head, two-stage Ace 75/2 carbon fiber tripod legs, SP 75 On-Ground Tripod Spreader, and a carry bag.

Constructed from fiberglass reinforced composite material, the Ace L fluid head is strong and lightweight at only 3.7 pounds. A 7-step counterbalance allows you to quickly and precisely balance your camera for stable and smooth operation. The patented SA-drag provides three horizontal and three vertical grades for consistent and repeatable drag. The head has a tilt range of +90° to -75°. An Ace quick-release plate is included and has a 1/4" screw and pin for attaching to your camera. Spare 1/4" and 3/8" camera screws are stored within the plate.

The Ace L fluid head attaches to the Ace 75/2 CF via a 75mm bowl attachment for professional stability and leveling. The legs feature a two-stage design with carbon fiber construction. The SP 75 ground spreader provides added stability when shooting on a level surface, such as a studio, and attaches directly to the feet of the tripod legs. The entire system provides a height range of 22.4 to 68.1".
If you own a Sachtler tripod systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sachtler Ace L GS CF Tripod System with Ground Spreader 1012Download user manual for Sachtler Ace L GS CF Tripod System with Ground Spreader 1012
(PDF file, 4.5 MB)
Additional parameters of the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012:
Specifications
    Head
    Load Capacity 13.2 lb (6 kg)
    Counter Balance System 7-step
    Quick Release/Wedge Plate Ace plate
    Sliding range: 4.1" (10.4 cm)
    Drag Control 3 grades each in horizontal and vertical, plus zero
    Tilt Range +90° / -75°
    Tilt Lock Yes
    Spring Loaded Counter Balance In 7 steps
    Pan Bar 1 x Ace type
    Pan Range 360°
    Pan Lock Yes
    Leveling Bubble Yes
    Illuminated
    Legs
    Material Carbon fiber
    Load Capacity 44 lb (20 kg)
    Head Attachment Fitting 75mm bowl
    Leg Stages/Sections 2 stages
    Leg Lock Type Rotary Clamp
    Independent Leg Spread No
    Spiked/Retractable Feet Non-retractable spikes with removable rubber spike protectors / anti-slip pads
    Spreader
    Material Plastic
    Type On-ground
    Adjustable Yes
    Maximum Length 22.8"
    Minimum Length 13.0"
    Load Capacity 88 lb (40 kg)
    General
    Temperature Range Head
    -30 to 60°F (-34 to 15° C)

    Legs
    -22 to 140°F (-30 to 60°C)
    Height Range 22.4 to 68.1" (57.0 to 173.0 cm)
    Folded Length 34.3" (87.0 cm)
    Weight Head
    3.7 lb (1.7 kg)

    Legs
    4.9 lb (2.2 kg)

    Ground Spreader
    1.3 lb (0.6 kg)

    System
    9 lb (4.1 kg)
    Packaging Info
    Package Weight 14.3 lb
    Box Dimensions (LxWxH) 37.0 x 12.4 x 8.0"
    The user manual for the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012 can be downloaded in .pdf format if it did not come with your new tripod systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sachtler users keep a unique electronic library for Sachtler tripod systemss, where you can use our link to download the user manual for the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012.

    The user manual lists all of the functions of the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012, all the basic and advanced features and tells you how to use the tripod systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sachtler service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sachtler Ace L GS CF Tripod System with Ground Spreader 1012. User manuals are also available on the Sachtler website under Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.
