User manual Sachtler Ace Matte Box S2152-0001

Operating instructions and pdf manual for use - Sachtler Ace Matte Box S2152-0001 User manual, User manual Sachtler Ace Matte Box S2152-0001, Sachtler, Ace, Matte, Box, S2152-0001, Video


User manual for Sachtler Ace Matte Box S2152-0001

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Sachtler  Ace Matte Box S2152-0001
  • Manufacturer: Sachtler
  • Basic description and contents of package
  • Product classification: Professional Video - Lenses & Lens Accessories - Matte Boxes & Sunshades
  • Safety instructions
  • Startup and operation of the matte boxes & sunshades
  • Tips for setting up your Sachtler
  • Settings and expert assistance
  • Contact Sachtler service
  • Troubleshooting
  • Warranty information
  • Price: 477 USD
We recommend checking out our discussion threads on the Sachtler Ace Matte Box S2152-0001, which address similar problems with connecting and setting up Matte Boxes & Sunshades Sachtler.



User manual for the Sachtler Ace Matte Box S2152-0001

The user manual for the Sachtler Ace Matte Box S2152-0001 provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Matte Boxes & Sunshades.

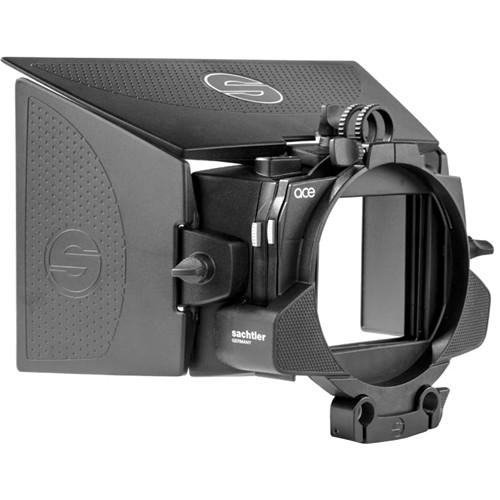

The Sachtler Ace Matte Box features a reversible 15mm rod bridge that allows you to mount the matte box on rigs with both large and small diameter lenses. The rod bridge can be screwed on right-side-up or upside-down to provide either 3.3" or 4.3" of distance between the center of the support rod to the center of the rear clamping interface. Once mounted, it secures with just a single lever.

The Ace Matte Box features two filter stages, one fixed and the rear one rotating up to 90° left or right. Included are adjustable top and side flags, two 4 x 4" and two 4 x 5.65" filter frames, and two different-sized neoprene rings. The flags gently clip on and fix into desired positions when you tighten each one's lever. The filter frames click into place as you insert them while holding a release button. The neoprene rings slide over your lenses to block out any light coming in through the back. They can be cut if necessary for larger lenses.

Two small accessory bars are available on the top of the matte box, each featuring two 1/4"-20 threads for mounting articulating arms, lights, mics, and other accessories.
If you own a Sachtler matte boxes & sunshades and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sachtler Ace Matte Box S2152-0001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sachtler Ace Matte Box S2152-0001:
Rod Support 15 mm
Payload 2.2 lb (1 kg) in accessories on each side
Max Lens Diameter Supported 143 mm
Rod Bridge Height Small diameter lens configuration: 3.3" (8.5 cm) (center of support rod to center of rear clamping interface)

Large diameter lens configuration: 4.3" (10.9 cm) (center of support rod to center of rear clamping interface)
Weight 2 lb (0.9 kg)
Packaging Info
Package Weight 4.85 lb
Box Dimensions (LxWxH) 14.646 x 9.291 x 6.221"
The user manual for the Sachtler Ace Matte Box S2152-0001 can be downloaded in .pdf format if it did not come with your new matte boxes & sunshades, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sachtler users keep a unique electronic library for Sachtler matte boxes & sunshadess, where you can use our link to download the user manual for the Sachtler Ace Matte Box S2152-0001.

The user manual lists all of the functions of the Sachtler Ace Matte Box S2152-0001, all the basic and advanced features and tells you how to use the matte boxes & sunshades. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sachtler service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sachtler Ace Matte Box S2152-0001. User manuals are also available on the Sachtler website under Professional Video - Lenses & Lens Accessories - Matte Boxes & Sunshades.
