User manual Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H

Operating instructions and pdf manual for use - Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H User manual, User manual Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H, Samson, Concert, 288, All-In-One, Dual-Channel


User manual for Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H

Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H
  • Manufacturer: Samson
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Samson
  • Settings and expert assistance
  • Contact Samson service
  • Troubleshooting
  • Warranty information
  • Price: 330 USD

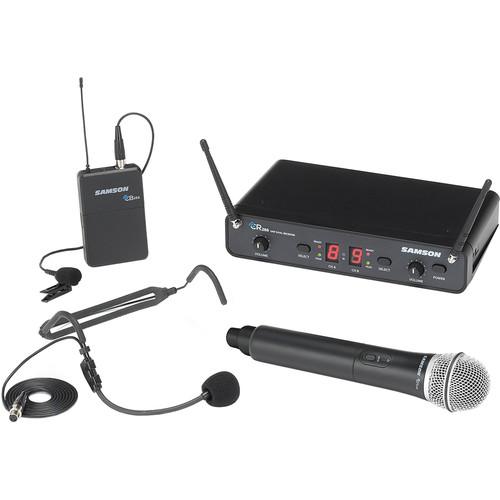

Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H
Click to enlarge image

We recommend checking out our discussion threads on the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H, which address similar problems with connecting and setting up Wireless Systems Samson.



User manual for the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H

The user manual for the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

The Concert 288 All-In-One Dual-Channel Wireless System from Samson is the ideal solution for any application requiring two wireless microphones. Featuring simple operation with 16 available channels per receiver, which is set by infrared transmitter channel, the Concert 288 can quickly be up and running out-of-the-box for vocal performances, presentations, Q&A sessions, houses of worship, and more.
If you own a Samson wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H:
Specifications
    System
    Band H
    Frequency Band 470 to 518 MHz
    Working Range 300' (100 m) line of sight
    Frequency Response 50 Hz to 15 kHz
    Total Harmonic Distortion <1% (@AF 1 kHz, RF 46 dBu)
    Dynamic Range >100 dB A-weighted
    Signal to Noise >85 dB
    Operating Temperature 14° to 140°F (-10° to 60°C)
    Tone Key Frequency: 32.768 kHz
    Beltpack Transmitter
    Input Connector Mini-XLR (P3)
    Input Impedance 1 MOhms
    Input Gain Range: 38 dB
    RF Power 10 mW EIRP
    Power Requirements 2x AA (LR6) alkaline batteries
    Battery Life 8 Hours
    Dimensions (H x L x D) 3.75 x 2.44 x 0.75" (96 x 62 x 18.5 mm)
    Weight 0.2 lb (93 g)
    Handheld Transmitter
    Microphone Element Q6 dynamic
    Input Gain Range: 28 dB
    RF Power 10 mW EIRP
    Power Requirements 2x AA (LR6) alkaline batteries
    Battery Life 8 hours
    Dimensions (H x Diam.) 10.23 x 2.1" (260 x 54 mm)
    Weight 0.48 lb (218 g)
    Receiver
    Audio Output Level Mix Unbalanced: +14 dBu
    Balanced: +14 dBu
    Audio Output Impedance Unbalanced: 1 kOhms
    Balanced: 470 ohms
    Sensitivity -100 dBm / 20 dB sinad
    Image Rejection >50 dB
    Operating Voltage 15 VDC 300 mA
    Dimensions (L x W x H) 8.25 x 4.9 x 1.75" (210 x 125 x 44 mm)
    Weight 0.99 lb (450 g)
    Packaging Info
    Package Weight 4.25 lb
    Box Dimensions (LxWxH) 14.1 x 13.1 x 3.8"
    The user manual for the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samson users keep a unique electronic library for Samson wireless systemss, where you can use our link to download the user manual for the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H.

    The user manual lists all of the functions of the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samson Concert 288 All-In-One Dual-Channel Wireless SWC288ALL-H. User manuals are also available on the Samson website under Pro Audio - Live Sound - Wireless Systems.
