User manual for Samson Expedition XP115A 2-Way Active PA Speaker XP115A
- Manufacturer: Samson
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - PA Speakers
- Safety instructions
- Startup and operation of the pa speakers
- Tips for setting up your Samson
- Settings and expert assistance
- Contact Samson service
- Troubleshooting
- Warranty information
- Price: 270 USD

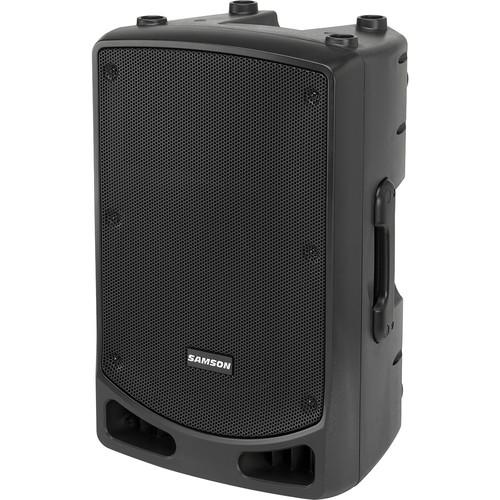

Click to enlarge image
|
We recommend checking out our discussion threads on the Samson Expedition XP115A 2-Way Active PA Speaker XP115A,
which address similar problems with connecting and setting up PA Speakers Samson.
|
User manual for the Samson Expedition XP115A 2-Way Active PA Speaker XP115A
The user manual for the Samson Expedition XP115A 2-Way Active PA Speaker XP115A provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.
The Expedition XP115A 2-Way Active PA Speaker by Samson is for sound reinforcement, and can be used in various environments for applications such as, bands, DJ setups, vocal presentations, in houses of worship, and more. It features a lightweight speaker, with 500 W of peak output power, and delivers low end sound with high-end punch through their respective 15" woofer and 1" high frequency driver. The back panel offers an XLR-1/4" combo input for microphone and line level devices as well as a contour equalization switch for customizing your sound. This speaker also provides an XLR link output connector for daisy chaining additional speakers to expand your PA setup. With a frequency response of 60 Hz to 20 kHz and electronic protection to prevent overload, the Expedition XP115A is sure to get the job done.
|
If you own a Samson pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Samson Expedition XP115A 2-Way Active PA Speaker XP115A in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Samson Expedition XP115A 2-Way Active PA Speaker XP115A:
| Output Power | 500 W peak (400 LF + 100 HF)
250 W RMS (200 LF + 50 HF) | | Low Frequency Drivers | 15" (930 cm) woofer
2" (5.1 cm) voice coil | | High Frequency Driver | 1" (2.5 cm) Neodymium driver
1" (2.5 cm) voice coil | | Frequency Response | 50 Hz - 20 kHz | | Maximum Sound Pressure Level (SPL) | At 1 M: 121 dB | | Limiter | Optical | | Horn | Coverage: 90°H x 60°V | | Crossover Frequency | 2.5 kHz at 12 dB/Oct | | Inputs | 1x Balanced XLR / ¼" (6.3 mm) mic/line connector | | Output | 1x Balanced XLR line output | | Contour | Equalization: 100 Hz & 12 kHz boost | | Protection Circuits | Thermal, overload, analog limiter, compressor | | Power Consumption | 260 W | | AC | 3-pin IEC 250 VAC, 20 A male | | Fuse | 110 to 120 V T4A, AC250 V
220 to 240 V, T2A AC250 V | | Mounting | Integral 1 3/8" (3.5 cm) pole mount receptacle | | Dimensions (L x W x H) | 15.2 x 14 x 24.9" (386 x 356 x 631.5 mm | | Weight | 32.6 lb (14.8 kg) | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 27.25 x 18.0 x 17.0" | |
The user manual for the Samson Expedition XP115A 2-Way Active PA Speaker XP115A can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Samson users keep a unique electronic library
for Samson pa speakerss,
where you can use our link to download the user manual for the Samson Expedition XP115A 2-Way Active PA Speaker XP115A.
The user manual lists all of the functions of the Samson Expedition XP115A 2-Way Active PA Speaker XP115A,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Samson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Samson Expedition XP115A 2-Way Active PA Speaker XP115A. User manuals are also
available on the Samson website under Pro Audio - Live Sound - PA Speakers.
Question and answer discussion forum concerning user instructions and resolving problems with the Samson Expedition XP115A 2-Way Active PA Speaker XP115A
Post new comment to Samson Expedition XP115A 2-Way Active PA Speaker XP115A
| Subject: No sound | | Date: 19.03.2023 20:24:27 | Author: Vinnie atalese | | I hooked up a microphone directly into the back of the speaker and no sound.. it’s a working microphone I checked in another powered speaker what could it be the power blue light is on | | Reply |
