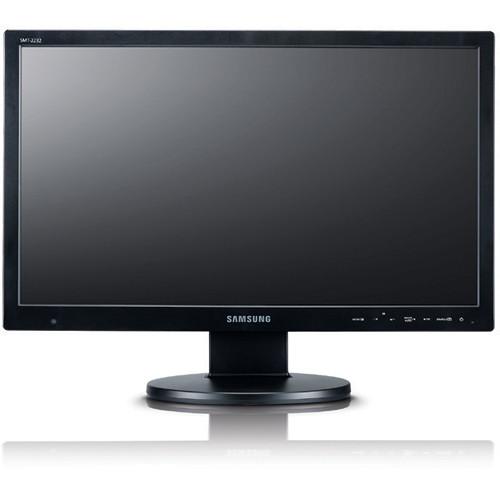

User manual Samsung 22" Wide LED Monitor SMT-2232

Operating instructions and pdf manual for use - Samsung 22" Wide LED Monitor SMT-2232 User manual, User manual Samsung 22" Wide LED Monitor SMT-2232, Samsung, 22, Wide, LED, Monitor, SMT-2232, Video


User manual for Samsung 22" Wide LED Monitor SMT-2232

Samsung  22
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Monitors
  • Safety instructions
  • Startup and operation of the surveillance monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 594 USD
We recommend checking out our discussion threads on the Samsung 22" Wide LED Monitor SMT-2232, which address similar problems with connecting and setting up Surveillance Monitors Samsung.



User manual for the Samsung 22" Wide LED Monitor SMT-2232

The user manual for the Samsung 22" Wide LED Monitor SMT-2232 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

The Samsung 22" Wide LED Monitor features a 16:9 display and a contrast ratio of 1000:1.
If you own a Samsung surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung 22" Wide LED Monitor SMT-2232 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung 22" Wide LED Monitor SMT-2232:
Specifications
    Display LED
    Screen Size 21.5" (546.1 mm)
    Brightness 250 cd/m2
    Maximum Resolution VGA (D-SUB) 1920 x 1080
    BNC (CVBS) NTSC: 600 TVL PAL: 620 TVL
    Contrast Ratio 1000:1
    Aspect Ratio 16:9
    Pixel Pitch (HxV) 0.248 x 0.248
    Viewing Angle (H/V) 170° / 160°
    Display Color 16.7 million
    Response Time 5 ms
    Video System NTSC / PAL
    Scanning Frequency Horizontal: 30 kHz to 81 kHz
    Vertical: 56 Hz to 75 Hz
    Color System NTSC 3.58/PAL 4.43
    Screen Mode 4:3,16:9
    Scan System Progressive
    Panel Life 30,000 hours
    Filter Type 3D combfilter
    Video Connector BNC types (2 in / 2 out)
    Composite 2 channel input, 1 Vp-p, 75 Ω terminated loop through out, BNC type
    RGB Connector: 1 Analogue RGB 15-pin D-sub
    Input Signal: 0.7 Vp-p ±5%
    HDMI 1 HDMI input (Type A connector)
    Audio Connector: 2 RCA type (2 stereo inputs)
    Output Signal Speakers - 2 x 1W
    Application Support Remote controller
    Display Support
    Functions VESA DPM compatible
    Language English, Spanish, French, German, Italian, Portuguese, Russian, Swedish, Turkish, Taiwanese, Chinese, Japanese, Korean
    General
    Electrical
    Input Voltage 100 to 240 VAC (50/60 Hz)
    Power Consumption (max) 35 W
    Environmental
    Operating Temperature 32 to 104°F (0 to 40°C)
    Humidity 20% to 90% (Non-condensing)
    Mechanical
    Tilt -2° to 22°
    Swivel 0° to 350°
    VESA Mount Standard 100 x 100 mm
    Dimensions (WxHxD) With Stand: 20.28 x 15.43 x 8.56" (515.11 x 391.92 x 217.42 mm)
    Without Stand: 20.28 x 12.44 x 2.36" (515.11 x 315.97 x 59.94 mm)
    Weight 11.02 lb (4.99 kg)
    Packaging Info
    Package Weight 15.65 lb
    Box Dimensions (LxWxH) 23.465 x 16.063 x 5.512"
    The user manual for the Samsung 22" Wide LED Monitor SMT-2232 can be downloaded in .pdf format if it did not come with your new surveillance monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung surveillance monitorss, where you can use our link to download the user manual for the Samsung 22" Wide LED Monitor SMT-2232.

    The user manual lists all of the functions of the Samsung 22" Wide LED Monitor SMT-2232, all the basic and advanced features and tells you how to use the surveillance monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung 22" Wide LED Monitor SMT-2232. User manuals are also available on the Samsung website under Surveillance - Surveillance Video - Surveillance Monitors.
