User manual Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH

Operating instructions and pdf manual for use - Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH User manual, User manual Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH, Samsung, 600, TVL, True, Day/Night, PTZ, Dome, Camera, SCP


User manual for Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH

Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 839 USD

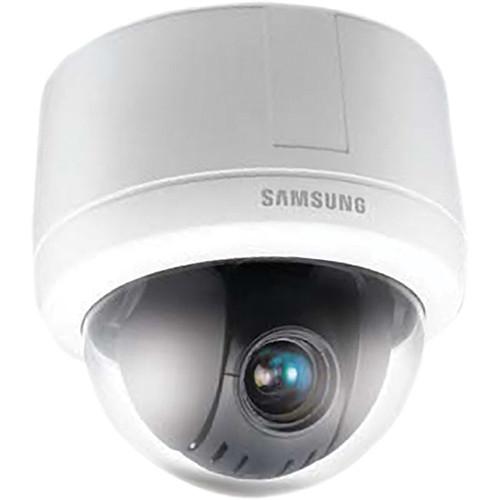

Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH
Click to enlarge image

We recommend checking out our discussion threads on the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH, which address similar problems with connecting and setting up Wired Analog & HD Cameras Samsung.



User manual for the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH

The user manual for the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

The Samsung 600 TVL True Day/Night PTZ Dome Camera uses a 1/4” EX-view HAD PS color CCD image sensor to deliver clear images at a resolution up to 600TVL (color) and 700TVL in (b&w). With built-in 12x optical zoom and 16x digital zoom, the camera can capture clear remote images without compromising the image quality.
If you own a Samsung wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VHDownload user manual for Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH
(PDF file, 9.77 MB)
Additional parameters of the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH:
Specifications
    Image Sensor 1/4" Ex-view HAD PS CCD
    Effective Pixels 768 (H) x 494 (V)
    Scanning System 2:1 Interlace
    Synchronization Internal / Line lock
    Horizontal Resolution Color: 600TVL (Min.) / B/W: 700TVL (Min.)
    Minimum Illumination Color: 0.7Lux (50 IRE@F1.67), 0.001Lux (Sens-up, 512x)
    B/W: 0.03Lux (50 IRE@F1.67)
    Video Output VBS: 1.0 Vp-p / 75Ω composite
    Lens
    Zoom 12x (Optical), 16x (Digital)
    Focal Length 3.6 ~ 44.3mm (F1.67 ~ 2.0)
    Aperture Range 1:1.67 (Wide) - 3.7 ( Tele)
    Lens Mount Board-in type
    Pan/Tilt
    Pan Range 360° Endless
    Tilt Range -5 - 185°
    Pan Speed Preset: 650°/sec / Manual: 0.05°/sec ~ 120°/sec (Proportional zoom ratio), Turbo 200°/sec
    Tilt Speed Preset: 650°/sec / Manual: 0.05°/sec ~ 120°/sec (Proportional zoom ratio)
    Wide Dynamic Range 128x
    Backlight Compensation BLC / WDR / Off
    Electronic Shutter Speed 1/60 ~ 1/10Ksec
    Communication RS-485, Coaxial control
    Alarm 2 In, 2 Out
    Operating Temperature -58 - 122°F (-50 - 50 °C)
    Weight 5.29 lb (2.4 kg)
    Packaging Info
    Package Weight 7.6 lb
    Box Dimensions (LxWxH) 14.0 x 13.0 x 10.0"
    The user manual for the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung wired analog & hd camerass, where you can use our link to download the user manual for the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH.

    The user manual lists all of the functions of the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung 600 TVL True Day/Night PTZ Dome Camera SCP-3120VH. User manuals are also available on the Samsung website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
