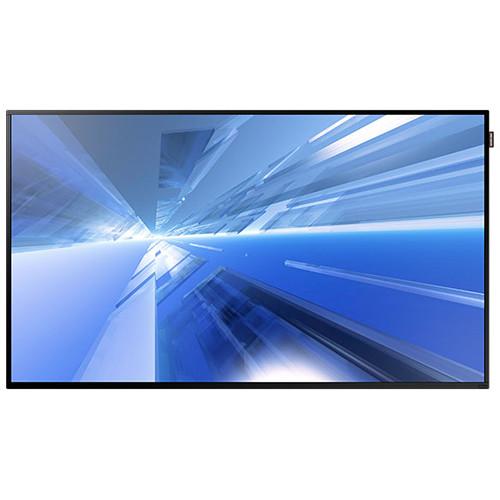

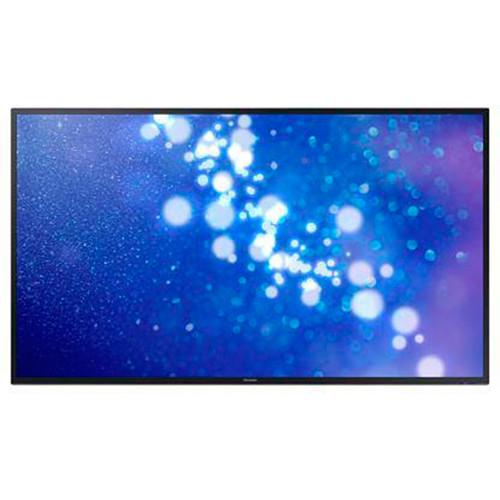

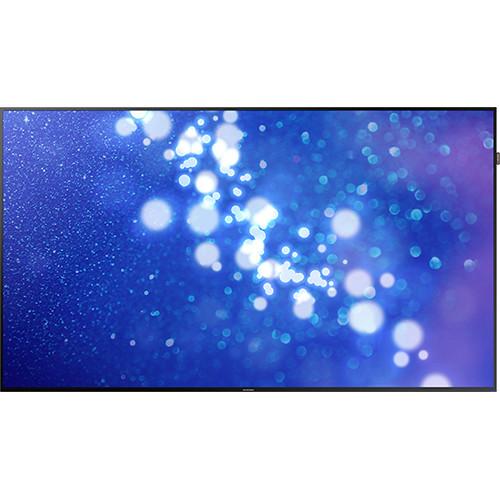

User manual Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E

Operating instructions and pdf manual for use - Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E User manual, User manual Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E, Samsung, DM40E, 40, 1080p, Direct-Lit, LED, Display, DM40E,


User manual for Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E

Samsung DM40E 40
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 771 USD
Samsung DM40E 40 Samsung DM40E 40 Samsung DM40E 40 Samsung DM40E 40 Samsung DM40E 40 Samsung DM40E 40
Click to enlarge image

We recommend checking out our discussion threads on the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E, which address similar problems with connecting and setting up Commercial Monitors Samsung.



User manual for the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E

The user manual for the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

The Samsung DM40E 40" 1080p Direct-Lit LED Display is designed for digital signage and, as such, has an integrated System-on-Chip semiconductor with a 1 GHz quad-core processor and 8GB of storage. Along with Samsung's MagicInfo content management software, you'll be able to create playlists, publish content directly to the display, and do more via the built-in Wi-Fi or Ethernet connections.

The DM40E offers a 60 Hz refresh rate to enhance the quality of fast-moving objects on the 1920 x 1080 screen. Its 2" slim chassis and 0.4" top and side bezel width will integrate well in nearly any décor. The display includes a VGA cable and an IR remote control.
If you own a Samsung commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E:
Specifications
Display
Panel Technology D-LED BLU
Screen Size 40.0" (101.6 cm)
Refresh Rate 60 Hz
Resolution 1920 x 1080
Aspect Ratio 16:9
Brightness 450 cd/m2
Contrast Ratio (Typical) 5000:1
Response Time (GtG) 8 ms
Viewing Angle (H x V) 178 x 178°
System on Chip
Processor 1 GHz quad-core
Storage 8 GB
RAM 1.5 GB
Supported File Formats Photo: .jpg, .jpeg, .png, .bmp, .mpo
Audio: .mp3, .m4a, .mpa, .aac, .3ga, .flac
Video: .avi, .mkv, .asf, .wmv, .mp4, .3gp, .vro, .mpg, .mpeg, .ts, .tp, .trp, .mov, .flv, .vob, .svi, .m2ts, .mts, .divx, .webm
Connectivity
Input 1 x VGA (D-Sub 15-pin)
1 x DVI-D
1 x DisplayPort 1.2
1 x HDMI
1 x Component/Composite via ⅛"
1 x ⅛" audio
1 x USB 5V, 1.5A
Output 1 x DisplayPort 1.2 loop out
1 x ⅛" audio
Other Connectors 1 x SD card slot
1 x Antenna in
1 x RS232C in/out via ⅛" jack
1 x LAN
General
Speakers Yes, 2 x 10W
Power Requirements 100 to 240 VAC, ±10%, 50/60 Hz
Power Consumption Typical: 44 W
Maximum: 121 W
Standby: 0.5 W
Environmental Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: 10 to 80% non-condensing
VESA Compatibility 200 x 200 mm
Certifications ENERGY STAR 6.0
RoHS
EMC emission standard
Bezel Width Top, Sides: 0.4" (9.5 mm)
Bottom: 0.6" (15.0 mm)
Dimensions (WxHxD) Without Stand: 35.7 x 20.7 x 2.0" (90.7 x 52.6 x 5.1 cm)
Weight 16.6 lb (7.5 kg)
Packaging Info
Package Weight 21.4 lb
Box Dimensions (LxWxH) 39.0 x 23.5 x 5.0"
The user manual for the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung commercial monitorss, where you can use our link to download the user manual for the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E.

The user manual lists all of the functions of the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung DM40E 40" 1080p Direct-Lit LED Display DM40E. User manuals are also available on the Samsung website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
