User manual Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens

Operating instructions and pdf manual for use - Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens User manual, User manual Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens, Samsung, NX1, Mirrorless, Digital, Camera, wit


User manual for Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

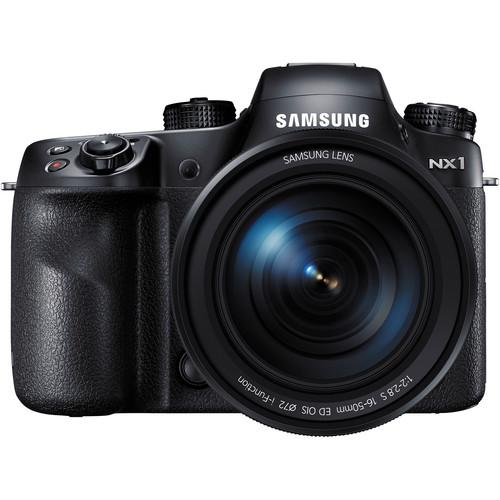

Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens
Click to enlarge image

We recommend checking out our discussion threads on the Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens, which address similar problems with connecting and setting up Mirrorless System Cameras Samsung.



User manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens

The user manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

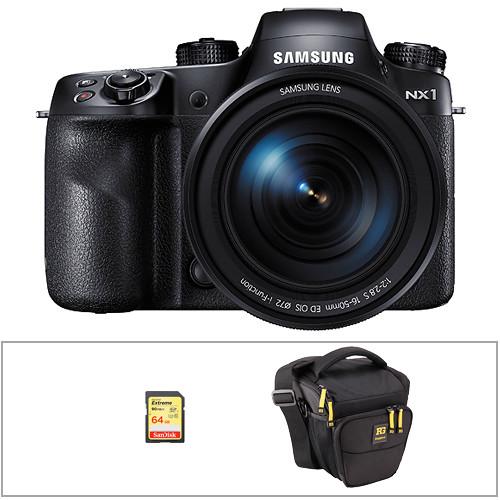

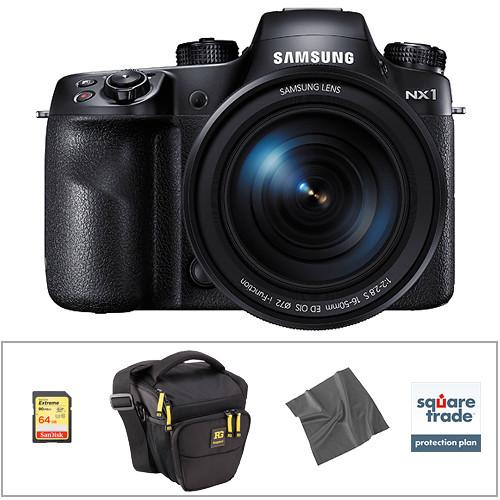

Create high-resolution video and stills almost right away with this Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens & Accessories Kit from B&H. It takes the 4K-capable NX1 camera and lens combo with its impressive 28.2MP backside-illuminated APS-C CMOS sensor and packages it with a 64GB SDXC memory card and a holster-style bag.

The NX1 stands out from the pack with a large APS-C-format backside-illuminated CMOS sensor architecture that boosts performance across the board, enabling fast 15 fps burst shooting with autofocus, DCI 4K at 24 fps, and low noise throughout the 100-51200 ISO range. Speed is further improved thanks to an AF system with 205 phase-detection points across the sensor. Benefitting video capture is the use of the H.265 codec for high efficiency and maximum resolution. For comfortable operation, the NX1 is equipped with both a 3.0" 1,036k-dot touchscreen LCD for intuitive control and a 2.36m-dot XGA OLED EVF for natural eye-level shooting.

The camera is compatible with Samsung NX-mount lenses and included in this kit is the Samsung 16-50mm f/2-2.8 S ED OIS Lens. A Premium "S" Series lens, it offers a 35mm-eqivalent range of 24.6-77mm, and provides an angle of view that can be used for wide-angle shots to portraits. It has a fast f/2.0 - 2.8 maximum aperture range that enables low-light shooting and shallow depth of field, while a 9-blade circular aperture diaphragm creates pleasing blur in out-of-focus regions. The lens can be stopped down to f/22 and features optical image stabilization.
If you own a Samsung mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 Lens:
Specifications
  • Samsung Samsung NX1 Mirrorless Digital Camera with 16-50mm f/2-2.8 S ED OIS Lens
    Imaging
    Lens Mount Samsung NX
    Camera Format APS-C (1.5x Crop Factor)
    Pixels Actual: 30.7 Megapixel
    Effective: 28.2 Megapixel
    Max Resolution 28 MP: 6480 x 4320
    Aspect Ratio 1:1, 3:2, 16:9
    Sensor Type / Size CMOS, 23.5 x 15.7 mm
    File Formats Still Images: JPEG, RAW
    Movies: AVI, MP4
    Audio: AAC
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SDXC (up to 64 GB)
    Image Stabilization Optical
    AV Recording
    Video Recording Yes, NTSC/PAL
    Resolution 4096 x 2160: 24 fps
    3840 x 2160: 30 fps
    1920 x 1080: 60 fps, 30 fps, 24 fps, 50 fps, 25 fps
    1280 x 720: 60 fps, 30 fps, 24 fps, 50 fps, 25 fps
    640 x 480: 60 fps, 30 fps, 24 fps, 50 fps, 25 fps
    Video Format MP4

    AVI
    Aspect Ratio 4:3, 16:9, 26:9
    Video Clip Length Up to 29 Minute 59 Seconds
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Automatic (A), Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Phase Detection: 205
    Contrast Detection: 209
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Pixel Count 2,360,000
    Viewfinder Eye Point 21.00 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 1.04x
    Diopter Adjustment - 4 to +2 m
    Display Screen 3" Rear Touchscreen Tilting  AMOLED (1,036,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 100-25600 (Extended Mode: 100-51200)
    Shutter 30 - 1/8000 seconds in  Manual Mode
    Remote Control ED-SR2NX02 (Optional)
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, C1, C2, Manual, Program, Shutter Priority, Smart
    Metering Range: EV 0.0 - EV 18.0
    Compensation: -5 EV to +5 EV (in 1/3 EV steps)
    White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent, Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (White), Kelvin, Tungsten
    Burst Rate Up to 15 fps at 28 MP
    Flash
    Flash Modes 1st Curtain Sync
    Auto
    Auto/Red-eye Reduction
    Fill-in
    Fill-in/Red-eye Reduction
    Off
    Rear Sync
    Smart
    Built-in Flash Yes
    Guide No. 36.1' (11 m) ISO100 at 28 mm position
    Max Sync Speed Electronic Shutter: 1 / 250 seconds
    Flash Compensation -2 EV to +2 EV (in 1/2 EV steps)
    External Flash Connection Hot Shoe
    Performance
    Continuous Shooting Up to 15 fps
    Self Timer 2 seconds, 30 seconds
    Interval Recording Yes
    Internal Memory None
    Connectivity 1/8" Headphone, 1/8" Microphone, HDMI D (Micro), USB 3.0
    Wi-Fi Capable Yes
    Software System Requirements Windows: 7, 8, 8.1
    Mac: OS X 10.7 or later
    Power
    Battery 1x BP1900 Rechargeable Lithium-ion Battery Pack1860 mAh
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 5 - 85%
    Physical
    Dimensions (WxHxD) 5.5 x 4.0 x 2.6" / 14.0 x 10.2 x 6.6 cm
    Weight 19.4 oz / 550 g
    Kit Lens
    Focal Length 16 - 50mm
    Comparable 35mm Focal Length: 24.6 - 77 mm
    Aperture Maximum: f/2 - 2.8
    Minimum: f/22
    Angle of View 82.6° - 31.4°
    Minimum Focus Distance .98' (.30 m)
    Magnification 0.19x
    Maximum Reproduction Ratio 1:5
    Elements/Groups 18/12
    Diaphragm Blades 9
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front:72 mm
    Dimensions (DxL) Approx. 3.19 x 3.80" (8.10 x 9.65 cm)
    Weight 1.32 lb (.60 kg)
    Packaging Info
    Box Dimensions (LxWxH) 11.3 x 8.1 x 6.0"
  • SanDisk 64GB Extreme UHS-I U3 SDXC Memory Card (Class 10)
    Card Type SDXC
    Storage Capacity 64 GB
    Speed Class 10
    UHS Speed Class U3
    Bus Interface Speed UHS Class I
    Data Transfer Read Speed 90 MB/s Maximum
    Write Speed 40 MB/s Maximum
    Durability Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
    Insertion/Removal Cycles Not Specified By Manufacturer
    Operating Temperature -13 to 185°F/ -25 to 85°C
    Storage Temperature -40 to 185°F/ -40 to 85°C
    Error Correction Not Specified By Manufacturer
    Built-in Write-Protect Switch Yes
    File System Not Specified By Manufacturer
    RoHS Compliant Not Specified By Manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 2.7 x 2.6 x 0.2"
  • Ruggard Hunter Pro 55 DSLR Holster Bag
    Material Exterior: 600D Oxford nylon
    Lining: 150D polyester
    D-rings: Metal
    Type of Closure Quick-release buckle
    Two zippers with yellow pull tabs
    Exterior Dimensions 8.25 x 7.5 x 8.6" (21.0 x 19.1 x 21.8 cm)
    Interior Dimensions 7.5 x 6.5 x 7.8" (19.1 x 16.5 x 19.8 cm)
    Carrying/Transport Options Adjustable, removable padded shoulder strap
    Top carry handle
    Belt loop
    Weight 18.3 oz (518.8 g)
    Packaging Info
    Box Dimensions (LxWxH) 13.0 x 8.0 x 7.5"
