User manual Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom

Operating instructions and pdf manual for use - Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom User manual, User manual Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom, Samsung, NX1, Mirrorless, Digital, Camera, with, 1


User manual for Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

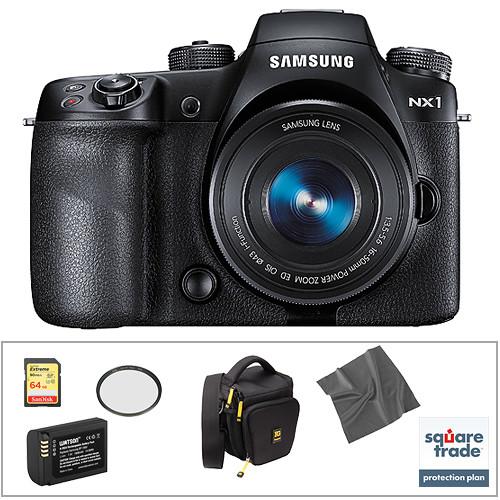

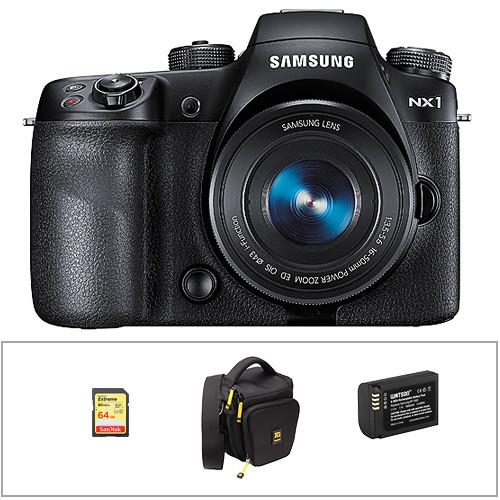

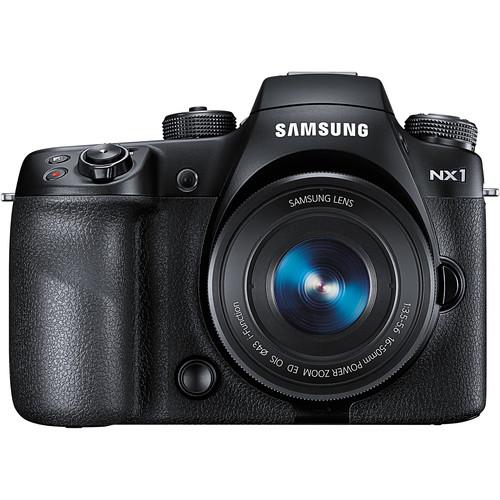

Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom
Click to enlarge image

We recommend checking out our discussion threads on the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom, which address similar problems with connecting and setting up Mirrorless System Cameras Samsung.



User manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom

The user manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

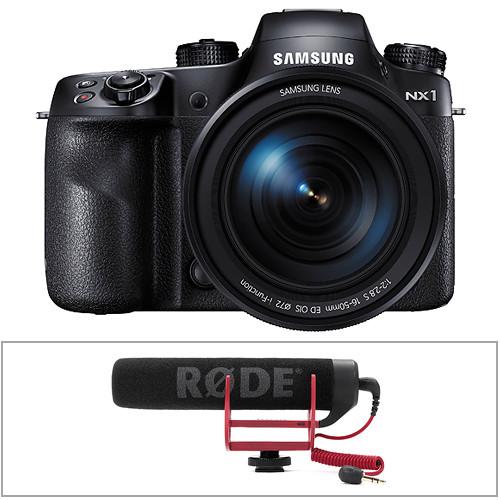

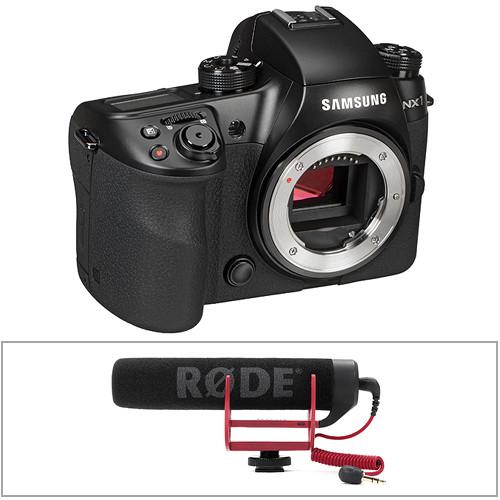

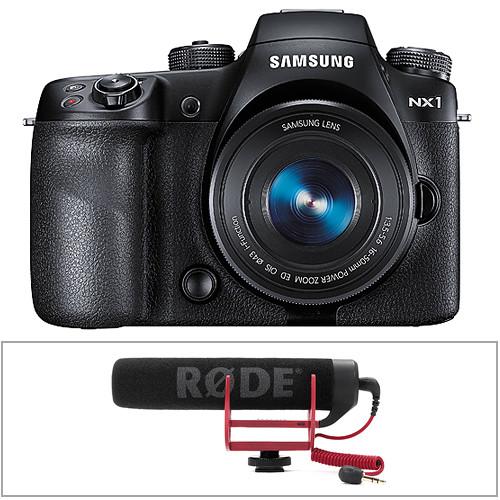

Embrace the video-specific features of the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Lens by picking up this B&H Kit, which takes the 4K-capable NX1 and lens combo and pairs it with a lightweight Rode VideoMic GO On-Camera Microphone for amplifying the quality of your sound.

The NX1 stands out from the pack with a large APS-C-format backside-illuminated CMOS sensor architecture that boosts performance across the board, enabling fast 15 fps burst shooting with autofocus, DCI 4K at 24 fps, and low noise throughout the 100-51200 ISO range. Speed is further improved thanks to an AF system with 205 phase-detection points across the sensor. Benefitting video capture is the use of the H.265 codec for high efficiency and maximum resolution. For comfortable operation, the NX1 is equipped with both a 3.0" 1,036k-dot touchscreen LCD for intuitive control and a 2.36m-dot XGA OLED EVF for natural eye-level shooting.

The camera is compatible with Samsung NX-mount lenses and included in this kit is the Samsung 16-50mm f/3.5-5.6 Power Zoom ED OIS lens. Offering a 24.6-77mm-equivalent focal length range, this versatile wide-to-short telephoto utilizes low dispersion and aspherical elements to reduce aberrations throughout the zoom range. Optical image stabilization minimizes the appearance of camera shake and Electro zoom control realizes smooth zooming performance that is especially beneficial to video recording.
If you own a Samsung mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom:
Specifications
  • Samsung Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom Lens
    Imaging
    Lens Mount Samsung NX
    Camera Format APS-C (1.5x Crop Factor)
    Pixels Actual: 30.7 Megapixel
    Effective: 28.2 Megapixel
    Max Resolution 28 MP: 6480 x 4320
    Aspect Ratio 1:1, 3:2, 16:9
    Sensor Type / Size CMOS, 23.5 x 15.7 mm
    File Formats Still Images: JPEG, RAW
    Movies: AVI, MP4
    Audio: AAC
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SDXC (up to 64 GB)
    Image Stabilization Optical
    AV Recording
    Video Recording Yes, NTSC/PAL
    Resolution 4096 x 2160: 24 fps
    3840 x 2160: 30 fps
    1920 x 1080: 60 fps, 30 fps, 24 fps, 50 fps, 25 fps
    1280 x 720: 60 fps, 30 fps, 24 fps, 50 fps, 25 fps
    640 x 480: 60 fps, 30 fps, 24 fps, 50 fps, 25 fps
    Video Format MP4

    AVI
    Aspect Ratio 4:3, 16:9, 26:9
    Video Clip Length Up to 29 Minute 59 Seconds
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Automatic (A), Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Phase Detection: 205
    Contrast Detection: 209
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Pixel Count 2,360,000
    Viewfinder Eye Point 21.00 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 1.04x
    Diopter Adjustment - 4 to +2 m
    Display Screen 3" Rear Touchscreen Tilting  AMOLED (1,036,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 100-25600 (Extended Mode: 100-51200)
    Shutter 30 - 1/8000 seconds in  Manual Mode
    Remote Control ED-SR2NX02 (Optional)
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, C1, C2, Manual, Program, Shutter Priority, Smart
    Metering Range: EV 0.0 - EV 18.0
    Compensation: -5 EV to +5 EV (in 1/3 EV steps)
    White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent, Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (White), Kelvin, Tungsten
    Burst Rate Up to 15 fps at 28 MP
    Flash
    Flash Modes 1st Curtain Sync
    Auto
    Auto/Red-eye Reduction
    Fill-in
    Fill-in/Red-eye Reduction
    Off
    Rear Sync
    Smart
    Built-in Flash Yes
    Guide No. 36.1' (11 m) ISO100 at 28 mm position
    Max Sync Speed Electronic Shutter: 1 / 250 seconds
    Flash Compensation -2 EV to +2 EV (in 1/2 EV steps)
    External Flash Connection Hot Shoe
    Performance
    Continuous Shooting Up to 15 fps
    Self Timer 2 seconds, 30 seconds
    Interval Recording Yes
    Internal Memory None
    Connectivity 1/8" Headphone, 1/8" Microphone, HDMI D (Micro), USB 3.0
    Wi-Fi Capable Yes
    Software System Requirements Windows: 7, 8, 8.1
    Mac: OS X 10.7 or later
    Power
    Battery 1x BP1900 Rechargeable Lithium-ion Battery Pack1860 mAh
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 5 - 85%
    Physical
    Dimensions (WxHxD) 5.5 x 4.0 x 2.6" / 14.0 x 10.2 x 6.6 cm
    Weight 19.4 oz / 550 g
    Kit Lens
    Focal Length 16 - 50mm
    Comparable 35mm Focal Length: 24.6 - 77 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22
    Angle of View 82.6° - 31.4°
    Minimum Focus Distance 9.45" (24 cm)
    Magnification 0.24x
    Elements/Groups 9/8
    Diaphragm Blades 7
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front:43 mm
    Dimensions (DxL) Approx. 2.55 x 1.22" (64.8 x 31 mm)
    Weight 3.92 oz (111 g)
    Packaging Info
    Box Dimensions (LxWxH) 8.5 x 6.8 x 4.6"
  • Rode VideoMic GO Lightweight On-Camera Microphone
    Operating Principle Line Gradient
    Diaphragm 0.50" (12.70 mm)
    Polar Pattern Supercardioid
    Frequency Range 100 Hz to 16 kHz
    Equivalent Noise Level 34 dB A-Weighted
    Maximum SPL 120 dB SPL 1%
    Sensitivity -35 dB @ 1 kHz, re: 1 V/Pa
    Output Connectors 3.5mm TRS
    General
    Length 6.57" (167 mm)
    Diameter 2.87" (73 mm)
    Weight 2.58 oz (73 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.3 x 4.9 x 2.8"
The user manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung mirrorless system camerass, where you can use our link to download the user manual for the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom.

The user manual lists all of the functions of the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung NX1 Mirrorless Digital Camera with 16-50mm Power Zoom. User manuals are also available on the Samsung website under Photography - Digital Cameras - Mirrorless System Cameras.
