User manual Samsung OM75D-W 75" High Brightness Display OM75D-W

Operating instructions and pdf manual for use - Samsung OM75D-W 75" High Brightness Display OM75D-W User manual, User manual Samsung OM75D-W 75" High Brightness Display OM75D-W, Samsung, OM75D-W, 75, High, Brightness, Display, OM75D-W,


User manual for Samsung OM75D-W 75" High Brightness Display OM75D-W

Samsung OM75D-W 75
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 12 USD
Samsung OM75D-W 75 Samsung OM75D-W 75 Samsung OM75D-W 75 Samsung OM75D-W 75 Samsung OM75D-W 75

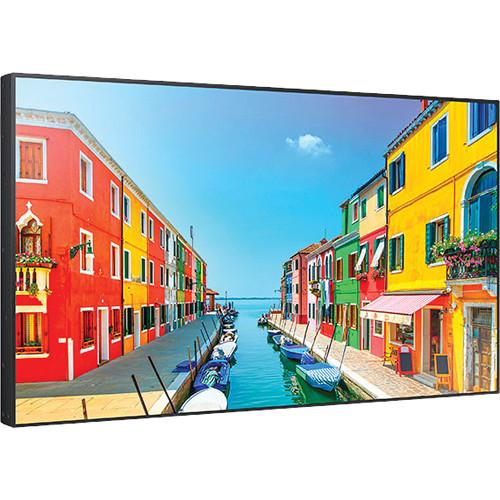

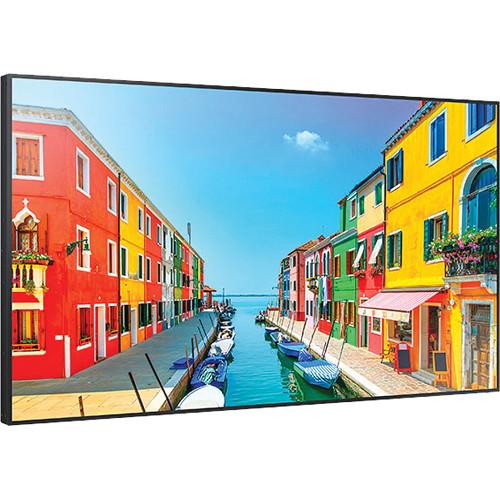

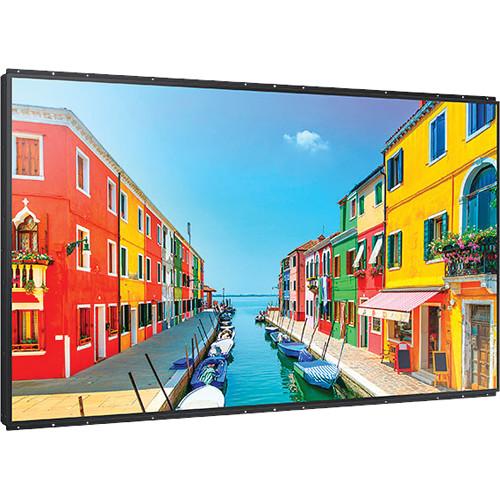

Click to enlarge image

We recommend checking out our discussion threads on the Samsung OM75D-W 75" High Brightness Display OM75D-W, which address similar problems with connecting and setting up Commercial Monitors Samsung.



User manual for the Samsung OM75D-W 75" High Brightness Display OM75D-W

The user manual for the Samsung OM75D-W 75" High Brightness Display OM75D-W provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

The Samsung OM75D-W 75" High Brightness Display has 2500 nits of brightness and a 5000:1 contrast ratio for easily readable text and bright graphics in high ambient light environments. It is a fully embedded digital signage solution designed for high ambient light indoor environments where brightness and visibility are the main requirements. The built-in System on Chip (SoC) delivers media player functionality, and content is easily controlled through Samsung MagicInfo software. With Samsung's SMART Signage Platform, you can manage your content without external devices.
If you own a Samsung commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung OM75D-W 75" High Brightness Display OM75D-W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung OM75D-W 75" High Brightness Display OM75D-W:
Specifications
    Display
    Screen Size 75.0" (189.0 cm)
    Display Area (H x V) 65.0 x 36.5" (165.0 x 92.8 cm)
    Panel Technology Direct lit
    Resolution 1920 x 1080
    Brightness 2500 nits
    Contrast Ratio (Typical) 5000:1
    Viewing Angle Horizontal: 178° Vertical: 178°
    Orientation Portrait/Landscape
    Connectivity
    Input 1 x VGA (D-sub 15 pin)
    1 x DVI-D
    1 x Display Port 1.2
    2 x HDMI
    1 x Component/Composite
    1 x Stereo mini jack
    Output 1 x Display Port 1.2 (loop-out)
    1 x Stereo mini jack
    External Control 1 x RS232C in/out
    1 x RJ45
    External Sensor Detachable (IR, ambient)
    Media Player
    Hardware CPU: Cortex-A9 1 GHz quad-core
    RAM: 1.5 GB DDR3
    Flash Memory: 8 GB
    USB Port: USB 2.0
    OS Linux
    Power
    Power Supply 100 to 240 VAC (±10%), 50/60 Hz
    Power Consumption Typical: 550 W
    Standby: <1 W
    Environmental Conditions
    Operating Temperature 32 to 86°F (0 to 30°C)
    Operating Humidity 10 to 80%
    Green Compliance RoHS compliant
    Packing materials recyclable
    General
    Speakers 2 x 10 W
    VESA Hole Pattern 900 x 600
    Bezel Width Not specified by manufacturer
    Dimensions 66.0 x 37.6 x 4.9" (1675.8 x 953.8 x 124.6 mm)
    Weight 108.7 lb (49.3 kg)
    The user manual for the Samsung OM75D-W 75" High Brightness Display OM75D-W can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung commercial monitorss, where you can use our link to download the user manual for the Samsung OM75D-W 75" High Brightness Display OM75D-W.

    The user manual lists all of the functions of the Samsung OM75D-W 75" High Brightness Display OM75D-W, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung OM75D-W 75" High Brightness Display OM75D-W. User manuals are also available on the Samsung website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
