User manual Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW

Operating instructions and pdf manual for use - Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW User manual, User manual Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW, Samsung, S24E650DW, 24, LED, Backlit, LCD, Monitor, S24E650DW,


User manual for Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW

Samsung S24E650DW 24
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 286 USD
Samsung S24E650DW 24 Samsung S24E650DW 24 Samsung S24E650DW 24 Samsung S24E650DW 24 Samsung S24E650DW 24 Samsung S24E650DW 24 Samsung S24E650DW 24
Click to enlarge image

We recommend checking out our discussion threads on the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW, which address similar problems with connecting and setting up Computer Monitors Samsung.



User manual for the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW

The user manual for the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

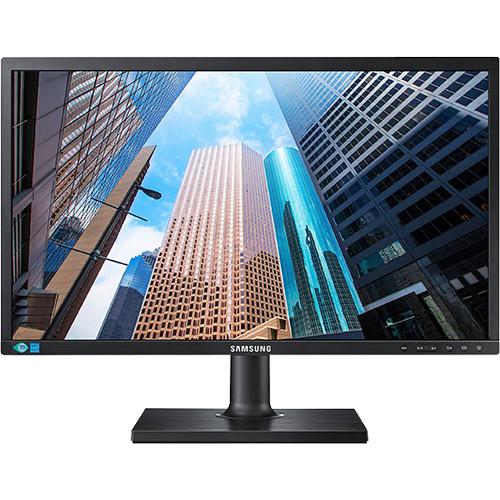

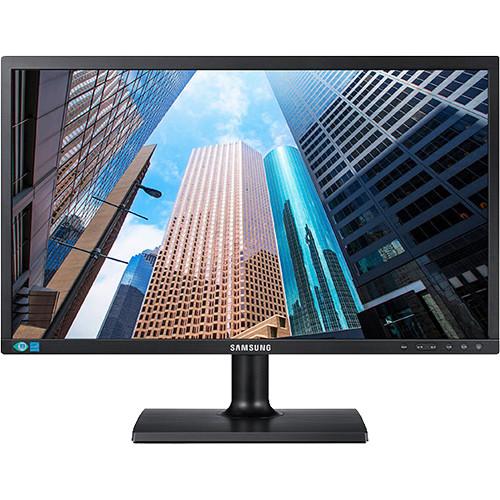

The 24" S24E650DW LED Backlit LCD Monitor from Samsung features an easy-to-use design, versatile connectivity, and a low-glare commercial-grade PLS panel. It is constructed of 30% recycled material and uses less than 0.005W of off-mode power consumption for an eco-friendly option. The LED-backlit LCD screen offers Mega ∞ Dynamic Contrast Ratio for subtle detail in the lights and darks, and there is MagicAngle technology for quality color, even when viewed off-angle. VESA and speaker bar compatibility as well as VGA, DVI, DisplayPort, and two USB hub connections are available for a wide range of applications. The monitor has a resolution of 1920 x 1200, and built-in cable management provides a clutter-free work environment. An ergonomic stand allows you to swivel, tilt, pivot, and adjust the height of the monitor.
If you own a Samsung computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samsung S24E650DW 24Download user manual for Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW
(PDF file, 6.17 MB)
Additional parameters of the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW:
Specifications
Panel 24 Class, 24" / 61 cm
Display Type PLS
Display Area 20.4 x 12.8" / 518.4 x 324 mm
Resolution 1920 x 1200
Brightness 250 cd/m2
Pixel Pitch 0.27 x 0.27 mm
Aspect Ratio 16:10
Static Contrast Ratio 1000:1
Dynamic Contrast Ratio Mega ∞
Viewing Angle 178° / 178°
Refresh Rate 60 Hz
Response Time 4 ms
Color Support 16.7 M
VESA Compatibility 100 x 100 mm
Inputs 1 x VGA
1 x DVI
1 x DisplayPort
2 x USB
Power Supply Internal, 100 to 240 VAC
Power Consumption Typical: 25 W
Stand-by: less than 0.005 W
Operating Environment Temperature: 50 to 104°F / 10 to 40°C
Humidity: 10 to 80% non-condensing
Storage Environment Temperature: -4 to 113°F / -20 to 45°C
Humidity: 5 to 95% non-condensing
Stand HAS: 5.1" / 130 mm (±2 mm)
Tilt: -3°(±2°)~ 25°(±2°)
Swivel: -45°(-2°,0°)~ 45°(0°,+2°)
Pivot: -1°(-2°,0°)~ 95°(0°,+2°)
Dimensions Maximum with stand: 21.8 x 20.4 x 8.8" / 55.4 x 51.8 x 22.4 cm
Minimum with stand: 21.8 x 15.2 x 8.8" / 55.4 x 38.6 x 22.4 cm
Without stand: 21.8 x 14.1 x 2.2" / 55.4 x 35.8 x 5.6 cm
Weight With stand: 12.8 lb / 5.8 kg
Without stand: 9.1 lb / 4.1 kg
Packaging Info
Package Weight 17.45 lb
Box Dimensions (LxWxH) 25.0 x 16.9 x 7.2"
The user manual for the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung computer monitorss, where you can use our link to download the user manual for the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW.

The user manual lists all of the functions of the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung S24E650DW 24" LED Backlit LCD Monitor S24E650DW. User manuals are also available on the Samsung website under Computers & Solutions - Monitors & Displays - Computer Monitors.
