User manual Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240

Operating instructions and pdf manual for use - Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240 User manual, User manual Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240, Samsung, SLA-12240, C-mount, Motorized, Zoom, Lens, SLA-12240,


User manual for Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240

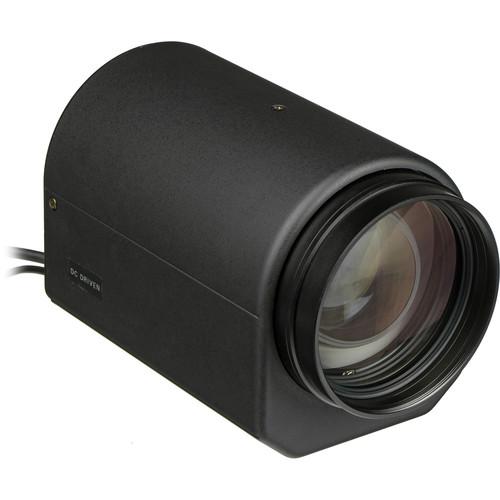

Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240, which address similar problems with connecting and setting up Lenses Samsung.



User manual for the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240

The user manual for the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

The Samsung SLA-12240 C-mount Motorized Zoom Lens (12-240mm) has a focal length of 12-240mm, is designed to be used with a 1/2" CCD sensor and offers 20x zoom. It also comes with built-in presets. Auto Iris (video) feature is highly flexible in producing consistent video signals, and it can help the camera to adjust to drastically changing light levels. The lens operates in the 14 to 122°F (-10 to 50°C) temperature range.
If you own a Samsung lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240:
Sensor 1/2" CCD
Iris Type Auto Iris (Video)
Mount Type C-Mount
Focal Length 0.47 - 9.45" (12 - 240mm)
Aperture F 1.6
Angle of View Diagonal - 38.9° - 1.9°
Horizontal - 30.8° - 1.6°
Vertical - 23° - 1.2°
Operation Iris - F 1.6 - F 720C
Focus - 2.8m - infinity
Zoom - 12 - 240mm (0.47 - 9.45")
Control Iris - 3.3 VDC
Focus - 6 - 12 VDC
Zoom - 6 - 12 VDC
Back Focal Length 0.78" (19.82mm)
Preset Built-in
Input Signal Video Signal (V or VS)
Operating Temperature 14 to 122°F (-10 to 50°C)
Dimensions (WxHxD) 4.57 x 5.31 x 8.8" (116 x 135 x 223.5mm)
Weight 5.73 lb (2.6kg)
The user manual for the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240 can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung lensess, where you can use our link to download the user manual for the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240.

The user manual lists all of the functions of the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung SLA-12240 C-mount Motorized Zoom Lens SLA-12240. User manuals are also available on the Samsung website under Surveillance - Surveillance Video - Lenses - Lenses.
