User manual Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012

Operating instructions and pdf manual for use - Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012 User manual, User manual Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012, Samsung, WiseNet, Lite, Series, 1080p, HD, Network

User manual for Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012

Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 137 USD

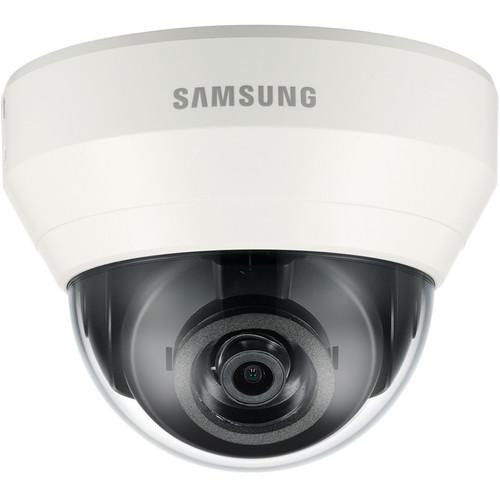

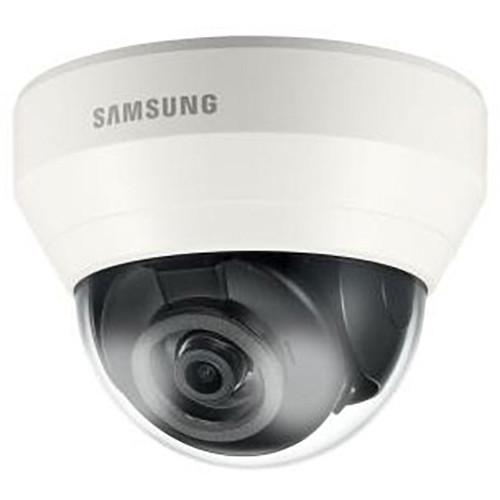

Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012 Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012
Click to enlarge image
We recommend checking out our discussion threads on the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012, which address similar problems with connecting and setting up Wired IP Cameras Samsung.


User manual for the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012

The user manual for the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The ivory WiseNet Lite Series SND-L6012 2MP Full HD Network Dome Camera from Samsung features a 1/2.9" progressive scan CMOS sensor and 2.8mm fixed lens. It delivers 2MP high definition images. Day & Night functionality combined with SSDR (Samsung Super Dynamic Range) allows this camera to capture clear, detailed images at all times of the day. H.264 compression technology allows you to save storage space while also minimizing the bandwidth requirement for operation. The multiple streaming feature allows simultaneous transmission of the recorded H.264 and MJPEG video streams. The camera also supports Hallway View and LDC (Lens Distortion Correction).
If you own a Samsung wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012:
Specifications
Video
Imaging Device 1/2.9" 2.19M CMOS
Total Pixels 2,000 (H) x 1,121 (V)
Effective Pixels 1,984 (H) x 1,105 (V)
Scanning System Progressive
Minimum Illumination Color: 0.15 lux (1/30 sec, F1.8), 0.003 lux (2 sec, F1.8)
B&W: 0.15 lux (1/30 sec, F1.8)
Lens
Focal Length (Zoom Ratio) 2.8 mm fixed lens
Maximum Aperture Ratio F1.8
Angular Field of View Horizontal: 110°
Vertical: 61°
Diagonal: 125°
Minimum Object Distance 1.64' (0.50 m)
Lens Type Fixed
Mount Type Board type
Pan / Tilt / Rotate
Pan Range 0 to 350°
Tilt Range 0 to 67°
Rotate Range 0 to 355°
Operational
Camera Title Off / On (displayed up to 15 characters)
Day & Night Electric day & night
Backlight Compensation Off / BLC
Contrast Enhancement DWDR: SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction (DNR) SSNR (Off / On)
Motion Detection Off / On (4ea rectangular zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / low / middle / high
White Balance ATW / AWC / manual / indoor / outdoor
Electronic Shutter Speed Minimum / maximum / anti flicker
Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering
Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error
Alarm Events File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 and MJPEG
Resolution 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240
Maximum Frame Rate H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 1 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, maximum 15 fps at other resolution
Video Quality Adjustment H.264: Target bitrate level control
MJPEG: Quality level control
Bitrate Control Method H.264: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (up to 3 profiles)
Audio I/O Built-in mic
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 Kb/s, 24 Kb/s, 32 Kb/s, 40 Kb/s
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication
Streaming Method Unicast / Multicast
Maximum User Access 6 Users at unicast mode
Storage microSD/SDHC maximum 32 GB, NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC
Application Programming Interface ONVIF Profile S, G, SUNAPI (HTTP API)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10 Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 35), Google Chrome (Version 15 to 40), Apple Safari (Version 8.0.2 (Mac OS X 10.10), 7.0.6(Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software: SmartViewer
Environmental
Operating Temperature / Humidity 14 to 131°F (-10 to 55°C)
Less than 90% RH
Storage Temperature -22 to 140°F (-30 to 60°C)
Storage Humidity Less than 90% RH
Electrical
Input Voltage/Current PoE (IEEE802.3af, Class2)
Power Consumption Maximum 2.4 W
Mechanical
Material Body: Plastic
Dimensions 4.3 x 3.3" (11.0 x 8.6 cm)
Weight 0.53 lb (0.24 kg)
The user manual for the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung wired ip camerass, where you can use our link to download the user manual for the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012.

The user manual lists all of the functions of the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung WiseNet Lite Series 1080p HD Network Indoor SND-L6012. User manuals are also available on the Samsung website under Surveillance - Surveillance Video - Wired IP Cameras.
