User manual Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA

Operating instructions and pdf manual for use - Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA User manual, User manual Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA, Samsung, Xpress, C1860FW, Color, All-in-One, Laser,


User manual for Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 290 USD
We recommend checking out our discussion threads on the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA, which address similar problems with connecting and setting up Laser Printers Samsung.



User manual for the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA

The user manual for the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

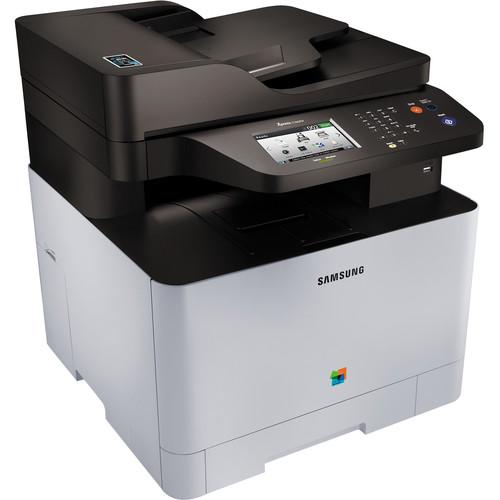

Cover all of your basic document handling needs with the Xpress C1860FW Color All-in-One Laser Printer from Samsung, which is capable of printing, scanning, copying, and faxing. It features a high print resolution of 9600 x 600 dpi and can print color or black & white documents at a rate of 19 ppm. Also, the unit has a 250-sheet input tray, 1-sheet manual feed bypass, and 50-sheet automatic document feeder that enables the handling of media up to 8.5 x 14" in size.

Scanning through the use of either the flatbed or ADF, the C1860FW can create scans optically at a resolution of 1200 x 1200 dpi or enhanced up to 4800 x 4800 dpi. The unit is quite fast as well, with a speed of about 20 ipm. Copying also benefits from the speed with the ability to produce up to 19 copies per minute. A built-in 33.6 Kb/s modem is included for added functionality.

Both USB 2.0, Ethernet, and Wi-Fi connectivity options are available, enabling direct connection to a computer or wireless printing from mobile and networked devices. Additionally, the printer features a monthly duty cycle of 40,000 pages.
If you own a Samsung laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA:
Specifications
    Functions Print, scan, copy, fax
    Printer
    Printing Technology Laser
    Print Color Black, cyan, magenta, yellow
    Maximum Resolution 9600 x 600 dpi
    Print Speed Black: 19 ppm
    Color: 19 ppm
    First Print Out Speed <16 seconds
    Toner Cartridge Compatibility CLT-K504S: 2,500 pages
    CLT-C504S: 1,800 pages
    CLT-M504S: 1,800 pages
    CLT-Y504S: 1,800 pages
    Duplex Printing Manual
    Printer Duty Cycle Monthly: 40,000 pages
    Scanner
    Scanner Type Flatbed, ADF
    Image Sensor Color CIS
    Optical Resolution 1200 x 1200 dpi
    Interpolated Resolution 4800 x 4800 dpi
    Scan Speed Up to 20 ipm
    Maximum Scan Area 8.5 x 14" (21.6 x 35.6 cm)
    Scanner Drivers TWAIN, WIA
    Color Depth Color: 24-bit
    Grayscale: 8-bit
    Scanner Features Scan to PC, USB, network, email
    Copier
    Maximum Resolution 1200 x 1200 dpi
    Copy Speed Black: 19 cpm
    Color: 19 cpm
    First Copy-Out Time <16 seconds
    Maximum Copy Size 8.5 x 14" (21.6 x 35.6 cm)
    Copy Features ID copy, N-up, reduce/enlarge, book copy
    Fax
    Modem Speed 33.6 Kb/s
    Fax Memory 6 MB
    Phone Support Yes, external interface
    Fax Capability ITU-T G3, ECM
    Fax Features Speed dial, auto redial, on hook dial, last number redial, delayed fax, fax forward to fax/PC, junk fax barrier, auto reduction, address book search, color fax, caller ID, distinctive ring
    Media Handling
    Paper Handling Input tray
    Multi-purpose/bypass
    Automatic document feeder
    Output tray
    Paper Capacity Input Tray: 250 sheets
    Multi-Purpose/Bypass: 1 sheet
    ADF: 50 sheets
    Output Tray: 100 sheets
    Paper Types Plain, thick, thin, cardstock, hole-punched, transparency, pre-printed, letterhead, recycled, archive, bond, label, envelope, cotton, colored, glossy, thicker paper
    Paper Sizes 3.0 x 5.0" to 8.5 x 14.0" (7.6 x 12.7 cm to 21.6 x 35.6 cm)
    Media Weight 16-59 lb bond (60-220 gsm)
    Connectivity
    Interfaces USB 2.0
    802.11b/g/n Wi-Fi
    10/100/1000 Base-TX Ethernet
    Wi-Fi Direct
    Wireless Printing Features Samsung Mobile Print, NFC Tap & Print, Google Cloud Print, Apple AirPrint
    Direct Print Capable Yes, USB
    OS Compatibility Windows 2000, XP, 2003, 2008 Server, Vista, 7, 8 (32/64-bit)
    Mac OS X 10.3-10.9
    Linux OS
    Memory 256 MB (up to 512 MB)
    Processor 533 MHz Dual CPU
    Printer Language PCL5C/6, PostScript 3, PDF V1.7, SPL-C (Samsung Print Language)
    Network Protocol Support TCP/IPv4, DHCP, BOOTP, DNS, WINS, Bonjour, SLP, UPnP, Standard TCP/IP Printing (RAW), LPR, IPP, WSD, SNMPv 1/2/3, HTTP, IPSec, TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)
    Network Security Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)
    Encryption: WEP64, WEP128, TKIP, AES
    General Attributes
    Display 4.3" (10.9 cm) color touchscreen
    Power Requirements 110-127 VAC
    Power Consumption Printing: 380 W
    Standby: 50 W
    Sleep: 2.4 W
    Sleep with Wi-Fi Direct: 3.6 W
    With Wi-Fi Direct: 1.68 kWh
    Certifications ENERGY STAR
    Acoustic Noise Ready: <32 db(a)
    Printing: <50 db(a)
    Copy: <52 db(a)
    Scan: <52 dB(A)
    Operating Conditions Temperature: 50 to 86°F (10 to 30°C)
    Humidity: 20 to 80%, relative
    Storage Conditions Temperature: -4 to 104°F (-20 to 40°C)
    Humidity: 10 to 90%, relative
    Dimensions 16.5 x 16.8 x 17.6" (41.9 x 42.7 x 44.7 cm)
    Weight 47.3 lb (21.5 kg)
    Packaging Info
    Package Weight 57.0 lb
    Box Dimensions (LxWxH) 23.3 x 21.7 x 21.7"
    The user manual for the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung laser printerss, where you can use our link to download the user manual for the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA.

    The user manual lists all of the functions of the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA. User manuals are also available on the Samsung website under Computers & Solutions - Printers & Accessories - Laser Printers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA

    Post new comment to Samsung Xpress C1860FW Color All-in-One Laser SL-C1860FW/XAA

    Subject: Samsung 1860CW printer
    Date: 05.10.2023 20:16:18Author: Margaret Webb
    Paper has got stuck in the exit roller. How do I remove the roller to get at the bits still tucked in the roller. I've moved all the bits of paper I could see but need to remove the stuck bits. It started smoking but I don't know how to release the roller. Can anyone help?
    Reply

    Subject: new printer
    Date: 23.07.2023 08:11:11Author: Rob
    need manual
    Reply
