User manual Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE

Operating instructions and pdf manual for use - Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE User manual, User manual Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE, Sanken, COS-11D, Omni, Lavalier, Mic, Reduced, Sen


User manual for Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE

Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE
  • Manufacturer: Sanken
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Microphones for Wireless
  • Safety instructions
  • Startup and operation of the microphones for wireless
  • Tips for setting up your Sanken
  • Settings and expert assistance
  • Contact Sanken service
  • Troubleshooting
  • Warranty information
  • Price: 379 USD
Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE
Click to enlarge image

We recommend checking out our discussion threads on the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE, which address similar problems with connecting and setting up Microphones for Wireless Sanken.



User manual for the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE

The user manual for the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Microphones for Wireless.

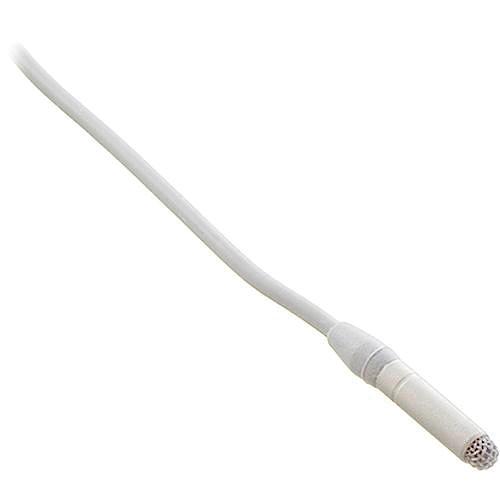

The white COS-11D Omnidirectional Lavalier Mic with Hardwired TA4F Connector for Beyerdynamic Wireless Transmitters by Sanken is a reduced sensitivity (-9 dB) capsule for capturing audio. It is designed to be used for various applications such as broadcast TV, theater, film, videography, and more.
If you own a Sanken microphones for wireless and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE:
Specifications
Directivity Omnidirectional
Transducer Self-polarized condenser
Frequency Response 50 Hz to 20 kHz
Sensitivity 3.2 mV/Pa (-50 dB, 0 dB=1 V/Pa)
Equivalent Noise Level (A-weighted): 28 dBA
Output Impedance 700 ohms at 1 kHz
Maximum Sound Pressure Level (SPL) 132 dB
Power Requirements +3 to +10 V
Current Consumption Less than 0.5 mA
Output Connectors TA4F
Cable Length 5.9' (1.8 m)
Dimensions (LxDiameter) 0.63 x 0.15" (16.1 x 4 mm)
Weight 0.84 oz (24 g)
Sanken COS-11D Lavalier Microphone: Quick Look
The user manual for the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE can be downloaded in .pdf format if it did not come with your new microphones for wireless, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sanken users keep a unique electronic library for Sanken microphones for wirelesss, where you can use our link to download the user manual for the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE.

The user manual lists all of the functions of the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE, all the basic and advanced features and tells you how to use the microphones for wireless. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sanken service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE. User manuals are also available on the Sanken website under Pro Audio - Location Sound - Microphones for Wireless.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE

Post new comment to Sanken COS-11D Omni Lavalier Mic Reduced Sens SAN-11DWRWHT4BE

Subject: Re:Sanken COS-11D
Date: 21.04.2016 22:15:53Author: Michelle
Hello Mark, try this link http://www.sanken-mic.com/ en/qanda/index.cfm or contact Sanken´s Tech Support.
Reply

Subject: Sanken COS-11D
Date: 21.04.2016 20:30:04Author: Mark Steinberg
Need manual .pdf
Reply
