User manual Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS

Operating instructions and pdf manual for use - Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS User manual, User manual Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS, Sans, Digital, EliteSTOR, 24-Bay, 6G, SAS/SATA,


User manual for Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS

Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS
  • Manufacturer: Sans Digital
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks
  • Safety instructions
  • Startup and operation of the hard drive enclosures & docks
  • Tips for setting up your Sans Digital
  • Settings and expert assistance
  • Contact Sans Digital service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS, which address similar problems with connecting and setting up Hard Drive Enclosures & Docks Sans Digital.



User manual for the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS

The user manual for the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks.

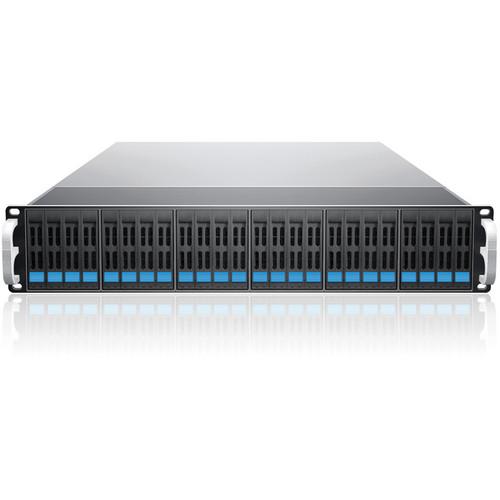

The EliteSTOR 24-Bay 6G SAS/SATA to SAS JBOD with SAS Expander Rackmount from Sans Digital is a high capacity storage solution with a 2.5" form factor. Utilizing the 6G SAS expander technology, the rackmount chassis provides over 24 Gb/s or 2400 MB/s of bandwidth to fulfill the most demanding applications. The rackmount chassis supports 2.5" SATA or SAS 6 Gb/s hard drives or solid state drives and is backwards compatible with 3 Gb/s SAS and SATA hard drives. It also supports up to 24 x 2.5" SAS or SATA drives using only one mini-SAS cable. In addition, a built-in SAS expansion port enables the system to connect up to 5 units or 120 hard disk drives daisy-chained together.
If you own a Sans Digital hard drive enclosures & docks and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS:
Interface
Form Factor 2U rackmount
Host Interface 6G SAS Expander
1 x mini-SAS/SFF-8088
Drive Interface SAS 6G or SATA 6G
HDD Tray 24 x 2.5" hot-swappable drive bays
Controller Interface Type Via RAID controller
Maximum Capacity 24 TB
Expandable to 120 TB
Connectivity
RAID / JBOD Support JBOD (RAID is supported by additional RAID card)
Expansion Ports 1 x mini-SAS/SFF-8088 (Up to 5 units supported)
Compatibility
Supported RAID Controller Areca ARC-1880X
Areca ARC-1680X
ARC-1882X
LSI SAS MegaRAID
Dell Perc SAS RAID
Intel SAS RAID
ATTO SAS RAID
General
Cooling Fan 2 x case cooling fan
2 x cooling fans in power supply
Indicators Hard drive and failure LEDs
Power Supply 1 x 460 W power supply
Compliance CE, FCC, UL and RoHS
Dimensions (W x H x D) 19.0 x 3.5 x 23.0" (482.6 x 88.9 x 584.2 mm)
Weight 35.00 lb (15.87 kg)
The user manual for the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS can be downloaded in .pdf format if it did not come with your new hard drive enclosures & docks, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sans Digital users keep a unique electronic library for Sans Digital hard drive enclosures & dockss, where you can use our link to download the user manual for the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS.

The user manual lists all of the functions of the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS, all the basic and advanced features and tells you how to use the hard drive enclosures & docks. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sans Digital service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sans Digital EliteSTOR 24-Bay 6G SAS/SATA to SAS KT-ES224X6 BS. User manuals are also available on the Sans Digital website under Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks.
