User manual Sea & Sea YS-D2 Underwater Strobe SS-03117

Operating instructions and pdf manual for use - Sea & Sea YS-D2 Underwater Strobe SS-03117 User manual, User manual Sea & Sea YS-D2 Underwater Strobe SS-03117, Sea, Sea, YS-D2, Underwater, Strobe, SS-03117, Video


User manual for Sea & Sea YS-D2 Underwater Strobe SS-03117

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

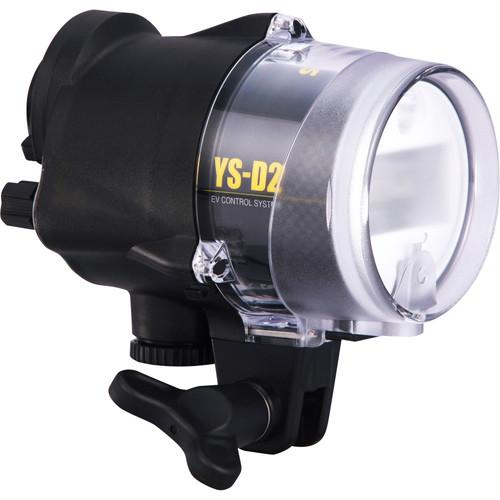

Sea & Sea  YS-D2 Underwater Strobe SS-03117
  • Manufacturer: Sea & Sea
  • Basic description and contents of package
  • Product classification: Photography - Underwater Photography - Strobe Lights
  • Safety instructions
  • Startup and operation of the strobe lights
  • Tips for setting up your Sea & Sea
  • Settings and expert assistance
  • Contact Sea & Sea service
  • Troubleshooting
  • Warranty information
  • Price: 650 USD
We recommend checking out our discussion threads on the Sea & Sea YS-D2 Underwater Strobe SS-03117, which address similar problems with connecting and setting up Strobe Lights Sea & Sea.



User manual for the Sea & Sea YS-D2 Underwater Strobe SS-03117

The user manual for the Sea & Sea YS-D2 Underwater Strobe SS-03117 provides necessary instructions for the proper use of the product Photography - Underwater Photography - Strobe Lights.

Illuminate the underwater world in rich, natural color at depths up to 328' with the YS-D2 Underwater Strobe from Sea & Sea. It features a guide number of 104' / 32 m on land at ISO 100. This value changes to 65' with the supplied Diffuser 120 or 78' with the supplied Diffuser 100. The flash has a beam angle of 80 x 80°, which is widened to 100 x 100° when used with Diffuser-100 and 120 x 120° when used with Diffuser-120. A daylight-balanced color temperature of 5600K enables the strobe to restore colors absorbed underwater for more vibrant and accurate images.

Both TTL and manual flash exposure modes are available. Unlike the previous YS-D1, the YS-D2 features audible and ready-light TTL confirmation. The rear side of the strobe features a glowing panel with easy-to-read controls. The YS-D2 is configured with a 5-pin sync cord connector and a fiber-optic port for connection to an underwater camera housing. It is powered by 4 AA Alkaline or NiMH batteries.
If you own a Sea & Sea strobe lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sea & Sea YS-D2 Underwater Strobe SS-03117 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sea & Sea YS-D2 Underwater Strobe SS-03117:
Specifications
Configuration Flash head
Guide Number 104' / 32 m on land at ISO 100
With Diffuser 120 (supplied): 65' / 20 m on land at ISO 100
With Diffuser 100 (supplied): 78' / 24 m on land at ISO 100
Coverage Angle 80°
100° (with Diffuser 100)
120° (with Diffuser 120)
Depth Rating 328' / 100 m
Exposure Control DS-TTL II
Slave TTL
Manual in 11 steps: 1 / 1.4 / 2 / 2.8 / 4 / 5.6 / 8 / 11 / 16 / 22 / 32
Pre-flash cancel mode
Color Temperature 5600 K
With Diffuser: 5250 K
Controls Mode, target light, light level
Recycle Time Alkaline: Approx 3.0 sec
Ni-MH: Approx 1.5 sec
Flashes With Alkaline Batteries: 150
With NiMH Batteries: 200
Indicators Ready / TTL lamp
Power 4x 1.5V AA Alkaline or 1.2V AA Ni-MH batteries
Has auto power off function
Connectivity 5-pin sync cord/N connector
Fiber-optic port
Dimensions 3.5 x 5.2 x 4.6" / 8.9 x 13.3 x 11.6 cm including YS mount base
Weight Without Batteries: Approx 1.3 lb / 0.6 kg including YS mount and bolt
With Batteries Underwater: Approx 1.4 oz / 40 g
Packaging Info
Package Weight 2.25 lb
Box Dimensions (LxWxH) 7.9 x 5.8 x 5.5"
The user manual for the Sea & Sea YS-D2 Underwater Strobe SS-03117 can be downloaded in .pdf format if it did not come with your new strobe lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sea & Sea users keep a unique electronic library for Sea & Sea strobe lightss, where you can use our link to download the user manual for the Sea & Sea YS-D2 Underwater Strobe SS-03117.

The user manual lists all of the functions of the Sea & Sea YS-D2 Underwater Strobe SS-03117, all the basic and advanced features and tells you how to use the strobe lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sea & Sea service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sea & Sea YS-D2 Underwater Strobe SS-03117. User manuals are also available on the Sea & Sea website under Photography - Underwater Photography - Strobe Lights.
