User manual for the Seagate 2TB (1 x 2TB) NAS Pro 2-Bay STDD2000100
The user manual for the Seagate 2TB (1 x 2TB) NAS Pro 2-Bay STDD2000100 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

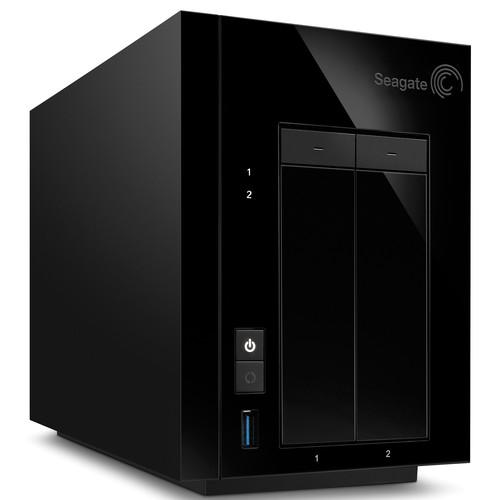

The 2TB (1 x 2TB) NAS Pro 2-Bay from Seagate is a complete network storage solution and private cloud for power users and businesses with up to 50 employees. It offers a user-friendly setup with an intelligent interface. This NAS Pro features hardware, software, and Seagate drives designed to work together, which helps to minimize setup time and deliver reliable performance.
This NAS Pro runs Seagate NAS OS 4 software, which helps to deliver ease of use, performance, reliability, and a platform for running add-on apps. With the App Manager in NAS OS 4, it is possible to install apps to enhance the functionality of your NAS, such as the surveillance app that turns the NAS into a recording solution for IP cameras. There is also an anti-virus app that scans your system to identify potential threats.
This NAS operates using a 1.7 GHz Intel Dual-Core 64-bit processor and 2GB DDR3 RAM. It also features 2 x USB 3.0 ports, 1 x USB 2.0 port, and 2 x 10/100/1000 Base-TX Gigabit Ethernet ports. All of these help this NAS to deliver the performance needed for data-intensive backup tasks, such as photo and video editing, accessing large databases, or multiple simultaneous PC/Mac backups. This NAS is also able to run multiple NAS OS 4 add-on apps simultaneously to help increase user productivity.
In terms of storage, Seagate uses Seagate NAS HDD drives, which are designed specifically for the 24x7 operating environments of NAS systems. The drive bays of this NAS support SATA II 3 Gb/s drives and while this NAS does come pre-configured with 2TB (1 x 2TB) of storage in a 3.5" form factor, 2.5" hard drives and SSDs are also supported. This NAS is also capable of achieving file transfer speeds of up to 200 MB/s.
In addition to the NAS being pre-configured with a capacity of 2TB, the storage volume itself is also pre-configured, which can help save setup time when compared to traditional RAID configurations. If you do wish to change the default configuration, SimplyRAID technology is offered and is built into the NAS OS software. SimplyRAID will help you choose the RAID configuration that is best by balancing performance, capacity, and redundancy. SimplyRAID also allows you to begin storing files and using the NAS after selecting a preferred configuration, therefore eliminating the waiting periods of hours or days while a RAID volume is built.
This Seagate NAS also allows you to collaborate, share, and access file from virtually anywhere while on-the-go. Seagate makes this possible with their Sdrive software for PC, Mac, Android, iPhone, and iPad. The software for PC and Mac provides access to the files stored on your NAS from virtually anywhere that you have an Internet connection. Sdrive makes the NAS appear as another drive connected to your computer, so you can drag-and-drop, view thumbnails, open files, and more. The Sdrive app for mobile devices also helps keep you connected to your file with enhanced security. All files are encrypted before they leave the NAS and only the Sdrive app on your mobile device, combined with proper user credentials, can decrypt and access the files.
The 2TB (1 x 2TB) NAS Pro 2-Bay is compatible with Windows, Windows Server, Mac OS, Linux, and Unix. It operates on 100 to 240VAC at 50/60 Hz and includes an Ethernet cable and a power cord. Please be aware that since this NAS comes with 1 x 2TB of storage, the second drive bay will be empty.
If you own a Seagate network attached storage drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Seagate 2TB (1 x 2TB) NAS Pro 2-Bay STDD2000100 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Seagate 2TB (1 x 2TB) NAS Pro 2-Bay STDD2000100:
Intel 1.7 GHz Dual-Core 64-bit processor 2 GB DDR3 Small desktop form factor chassis Power on/off button System reset button (pinhole) One-touch backup Kensington Security Slot
External Ports
2 x USB 3.0 1 x USB 2.0 2 x 10/100/1000 Base-TX
HDD Support
2 x SATA II 3 Gb/s channels Hot swappable HDD trays Support of 2.5 and 3.5" HDDs Pre-configured with Seagate 2x1 TB 3.5" NAS HDD
RAID and Data Management
RAID 0, 1 JBOD SimplyRAID (default) Auto RAID migration, volume expansion, and HDD mix and match Volume encryption Rescue mode for volume recovery Network recycle bin
Security
HTTPS access to management UI Windows Active Directory support Password authentication and access control User, user group Secure Shell (SSH) AES 256-bit volume encryption CHAP authentication for iSCSI target Mutual CHAP
System Management
Web-based GUI through HTTP/HTTPS System resource monitoring (CPU, memory, network) Hardware monitoring (chassis, board, fan status) S.M.A.R.T. info Event log and management Product discovery with Seagate Network Assistant NAS OS installer for diskless setup Rescue mode and restore to factory settings Automatic and manual firmware update System configuration backup / restore Alert management and email notification
Power
External PSU: 60 W, 100 ~ 240 V AC, 50/60 Hz
Power Consumption: Operation mode: 44 W Power-saving mode: 30 W WOL mode: 0.5 W
Scheduled power on / off Power-saving mode w/disk spin-down Wake-on-LAN (WOL) Auto power-on after power outage UPS support for graceful shutdown (USB and network via SNMP)
Environmental
Temperature, Operating: 32 to 104°F / 0 to 40°C Temperature, Non-Operating: -40 to 149°F / -40 to 65°C Relative Humidity, Operating (non-condensing): 0 to 80% Relative Humidity, Non-Operating (non-condensing): 0 to 95%
Windows XP, Vista, 7, 8 Windows Server 2003/2008R2/2012 Mac OS 10.6 and later Linux / Unix
Supported Browsers
Internet Explorer Firefox Safari Google Chrome
Software Languages
English, Spanish, German, French, Italian, Dutch, Chinese Traditional, Chinese Simplified, Korean, Portuguese, Russian, Czech
Media Streaming
UPnP A/V media server DLNA Compatible iTunes (DAAP) server MTP and PTP support Photo browser and audio streaming through web interface
Backup Solution
Support of third-party backup software Time Machine backup Manual or scheduled backup job to back up NAS to/from external USB drive NAS-to-NAS backup, compression options (incremental or full) NAS to/from Rysnc server, local, or remote Back up and restore via CIFS/NFS/HTTP/FTP Back up to Amazon S3 Back up to Box.com Back up and restore system configuration
Remote Access
Remote access with PC, Mac, smartphones, and tablets (iOS, Android) Sdrive cloud-based secure remote access (no port forwarding needed) MyNAS web-based remote access HTTP/FTP remote access with customer configuration
App Manager and Apps
Open API for third-party applications App Manager - Available app packages for customized installation - Pre-installed apps - Web-based GUI for install/delete/run/suspend apps
Surveillance Manager (NVR)
Turn your NAS into a full-featured NVR (network video recorder) with Seagate Surveillance Manager. Supports up to 1000+ network cameras Local and remote LiveView Search and timeline-based playback Camera and event management Support up to four camera licenses License management (includes 1 free camera license) Mobile app and surveillance client
Antivirus
With the Daily Updates engine, Seagate Antivirus will help protect your data and systems from threats
