User manual for Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002
- Manufacturer: Seagate
- Basic description and contents of package
- Product classification: Computers & Solutions - Drives & Storage - Internal Drives
- Safety instructions
- Startup and operation of the internal drives
- Tips for setting up your Seagate
- Settings and expert assistance
- Contact Seagate service
- Warranty information
- Price: 116 USD

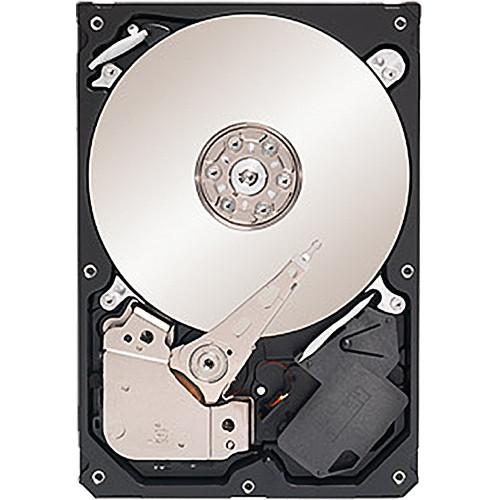

Click to enlarge image
We recommend checking out our discussion threads on the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002,
which address similar problems with connecting and setting up Internal Drives Seagate.
User manual for the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002
The user manual for the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002 provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.
The 3TB ST3000VX002 SATA III 3.5" Internal Surveillance HDD from Seagate is a surveillance hard drive that can be integrated into DVRs and NVRs, with a surveillance-optimized platform for improved video streaming, drive performance, and data integrity. With its low power consumption options and current-limited startup, it is designed to maintain multiple-video-stream recording and high write-cycle workloads operating on a 24/7 schedule. The Surveillance HDD supports high resolution cameras and operates in multi-drive systems, including ones with RAID support, with added stability from its Rotational Vibration (RV) sensor. It includes a power setting that allows for immediate recording when motion is detected. The hard drive also has spin control features that enable power-on in standby mode or drive spin-down to conserve power and improve reliability during archival periods.
If you own a Seagate internal drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002:
| Capacity || 3 TB |
| Interface || SATA III (6 Gb/s transfer rate) |
| Cache || 64 MB |
| Bytes per Sector || 4096 |
| Areal Density || 536 Gb/in2 |
| Connector Size || 3.5" / 88.9 mm |
| Drive Bays Supported || Up to 16 |
| Cameras Supported || Up to 32 per drive |
| Max Sustained Data Rate, OD Read || 180 MB/s |
| Voltage Tolerance (Including Noise) || 5 V: ±5% |
12 V: ±10%
| Startup Current (Average, 12 V) || 1.8 A |
| Operating Mode (Typical) || 5.6 W |
| Idle Average || 4.0 W |
| Standby Mode || 0.5 W |
| Sleep Mode || 0.5 W |
| Operating Temperature || Ambient: 32°F / 0°C minimum |
Drive case: 158°F / 70°C maximum
| Nonoperating Temperature || Ambient minimum: -40°F / -40°C |
Ambient maximum: 158°F / 70°C
| Workload || 180 TB per year |
| Load/Unload Cycles || 300,000 |
| Nonrecoverable Read Errors per Bits Read || Maximum: 1 per 10E14 |
| Mean Time Between Failures (MTBF) || 1,000,000 h |
| Annualized Failure Rate (AFR) || <1% |
| Power-On Hours || 8760 |
| Dimensions || 5.8 x 4.0 x 1.0" / 147.00 x 101.85 x 26.11 mm |
| Weight || 1.35 lb / 610 g |
| Package Weight || 1.7 lb |
| Box Dimensions (LxWxH) || 9.0 x 6.1 x 3.0" |
The user manual for the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002 can be downloaded in .pdf
format if it did not come with your new internal drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Seagate users keep a unique electronic library
for Seagate internal drivess,
where you can use our link to download the user manual for the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002.
The user manual lists all of the functions of the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002,
all the basic and advanced features and tells you how to use the internal drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Seagate service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Seagate 3TB ST3000VX002 SATA III Internal ST3000VX002. User manuals are also
available on the Seagate website under Computers & Solutions - Drives & Storage - Internal Drives.
