User manual for SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3
- Manufacturer: SeaSonic Electronics
- Basic description and contents of package
- Product classification: Computers & Solutions - Computer Components - Power Supplies
- Safety instructions
- Startup and operation of the power supplies
- Tips for setting up your SeaSonic Electronics
- Settings and expert assistance
- Contact SeaSonic Electronics service
- Troubleshooting
- Warranty information
- Price: 210 USD

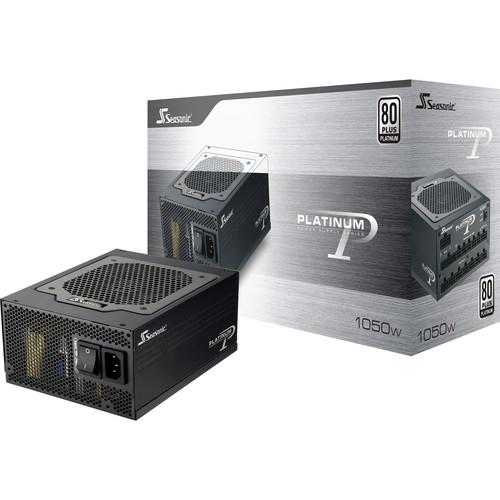

Click to enlarge image
|
We recommend checking out our discussion threads on the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3,
which address similar problems with connecting and setting up Power Supplies SeaSonic Electronics.
|
User manual for the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3
The user manual for the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.
The Platinum Series SS-1050XP3 Active PFC F3 1050W Power Supply Unit from Sea Sonic Electronics is designed for high-performance PCs where reliability is essential. It offers ultra-tight voltage regulation (0 to 2%), virtually silent operation, and a fully-modular design. The 80 PLUS Platinum efficiency ensures power savings with up to 92% efficiency at 50% operating load.
|
If you own a SeaSonic Electronics power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3:
| Compliance | Intel ATX12V / EPS12V | | 80 PLUS Certification Level | Platinum | | Power Efficiency | >90, 92, and 89% efficiency at 20, 50, and 100% operating load respectively | | AC Input Range | Full Range: 100 to 240 V (maximum 90 to 264 V), 13 to 6.5 A, 50/60 Hz | | DC Output | Total: 1050 W | | Load | At +3.3 & +5 VDC Output:
Maximum Load: 25 A
Combined Load: 125 W
At +12 VDC Output:
Maximum Load: 87 A
Combined Load: 1044 W
At -12 VDC Output:
Maximum Load: 0.5 A
Combined Load: 6 W
At +5 Vsb DC Output:
Maximum Load: 3 A
Combined Load: 15 W | | Connectors | 1 x 20/24-pin motherboard power [24" (610 mm)]
1 x 6/8-pin EPS12V / ATX12V [25.5" (650 mm)]
1 x 8-pin EPS12V [25.5" (650 mm)]
10 x 6/8-pin PCIe [21.7 / 25.5" (550 / 650 mm)]
5 x 4-pin Peripheral
14 x SATA
1 x 4-pin floppy | | Fan Control | Fanless, Silent, and Cooling modes | | PFC (Power Factor Correction) | 99% | | Efficiency | ENERGY STAR
ErP Lot 6 2013 complaint | | Protection Features | OPP / OVP / UVP / SCP / OCP / OTP | | Safety Certificates | WEEE, RoHS, UL, FCC, CB, CE, TÜV, C-Tick, BSMI, Green Dot | | Dimensions (L x W x H) | 7.5 x 5.9 x 3.4" (19.0 x 15.0 x 8.6 cm) | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 15.276 x 7.953 x 5.512" | |
The user manual for the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3 can be downloaded in .pdf
format if it did not come with your new power supplies, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other SeaSonic Electronics users keep a unique electronic library
for SeaSonic Electronics power suppliess,
where you can use our link to download the user manual for the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3.
The user manual lists all of the functions of the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3,
all the basic and advanced features and tells you how to use the power supplies.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from SeaSonic Electronics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the SeaSonic Electronics Platinum Series PLATINUM-1050 SS-1050XP3. User manuals are also
available on the SeaSonic Electronics website under Computers & Solutions - Computer Components - Power Supplies.
