User manual for the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050
The user manual for the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

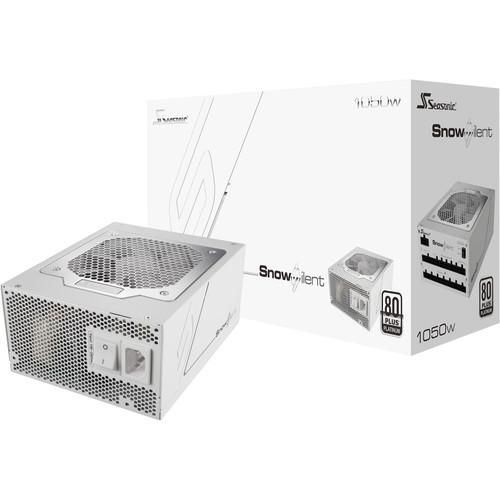

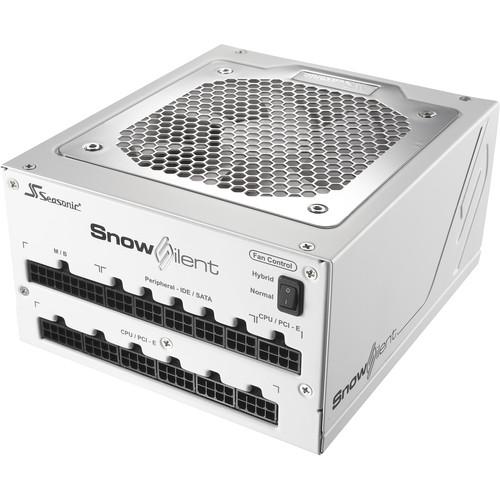

The Snow Silent-1050 Active PFC 1050W Power Supply Unit from Sea Sonic Electronics delivers reliable and stable power to your desktop's components. Besides the standard motherboard, floppy, and CPU power connectors, it also comes with eight PCIe, five peripheral, and fourteen SATA connectors. To help improve the airflow within the case, you can remove the unused cables from the power supply. Furthermore, an 80 PLUS Platinum efficiency ensures power savings with up to 92% efficiency at 50% operating load.
This power supply unit employs a hybrid silent fan control to balance between silence and cooling. In addition, it uses high-quality conductive polymer aluminum solid capacitors and 221°F (105°C) Japanese aluminum electrolytic capacitors, ensuring stable operation under extreme conditions and extended life.
|
If you own a SeaSonic Electronics power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050:
| Compliance | Intel ATX12V / EPS12V | | Efficiency | 80 PLUS Platinum / Energy Star / ErP Lot 6 2013 compliant | | Protection Features | Over Power Protection (OPP) / Over Voltage Protection (OVP) / Short Circuit Protection (SCP) / Under Voltage Protection (UVP) / Over Current Protection (OCP) / Over Temperature Protection (OTP) | | Restriction on Hazardous Substances | WEEE / RoHS | | AC Input Range | Full Range: 100 to 240 V (90 to 264 V maximum), 13 to 6.5 A, 50 / 60 Hz | | Connectors | 1 x M/B 24/20 pin connector (610 mm)
1 x CPU 8/4 pin connector (650 mm)
1 x CPU 8 pin (650 mm)
8 x PCI-E 8/6 pin
5 x Peripheral 4 pin
14 x SATA
1 x Floppy | | Maximum Load | +3.3 V: 25 A
+5 V: 25 A
+12 V: 87 A
-12 V: 0.5 A
+5 Vsb: 3 A | | Combined Wattage | +3.3 V: 125 W
+5 V: 125 W
+12 V: 1044 W
-12 V: 6 W
+5 Vsb: 15 W | | Total Output Power | 1050 W | | Approvals and Certifications | TUV, CB, PCT, CCC, FCC, CE, C-Tick, RoHS | | Dimensions (L x W x H) | 7.5 x 5.9 x 3.4" / 190.0 x 150.0 x 86.0 mm | | Package Weight | 9.35 lb | | Box Dimensions (LxWxH) | 15.4 x 8.0 x 5.3" | |
The user manual for the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050 can be downloaded in .pdf
format if it did not come with your new power supplies, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other SeaSonic Electronics users keep a unique electronic library
for SeaSonic Electronics power suppliess,
where you can use our link to download the user manual for the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050.
The user manual lists all of the functions of the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050,
all the basic and advanced features and tells you how to use the power supplies.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from SeaSonic Electronics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the SeaSonic Electronics Snow Silent-1050 Active SNOW SILENT-1050. User manuals are also
available on the SeaSonic Electronics website under Computers & Solutions - Computer Components - Power Supplies.
