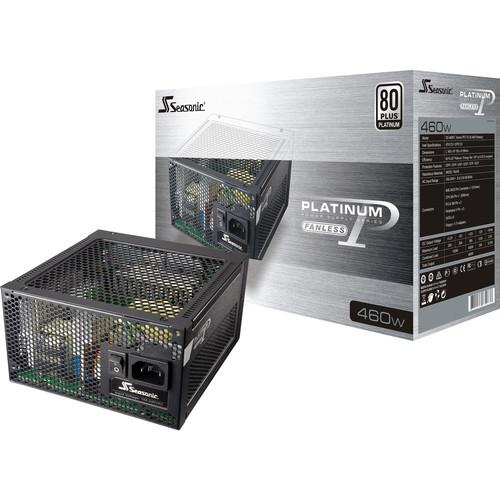

The SS-460FL2 Active PFC F3 460W 80 PLUS Platinum Certified Fully Modular Fanless Power Supply Unit from Sea Sonic Electronics offers reliability and low-noise operation. This power supply improves load regulation resulting in smooth and stable operation. The built-in 6-pin and 8-pin PCI-E connector supports all GPU platforms. The honeycomb shaped ventilation holes optimize airflow for improved cooling and reduced noise. The unit supports ATX12V and EPS12V standards and is also ErP Lot 6 2013 compliant.
If you own a SeaSonic Electronics power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SeaSonic Electronics SS-460FL2 Active PFC F3 460W 80 SS-460FL2 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SeaSonic Electronics SS-460FL2 Active PFC F3 460W 80 SS-460FL2:
Specifications
Compliance
Intel ATX12V / EPS12V
Efficiency
80 PLUS Platinum / Energy Star / ErP Lot 6 2013 compliant
Protection Features
Over Power Protection (OPP) / Over Voltage Protection (OVP) / Short Circuit Protection (SCP) / Under Voltage Protection (UVP) / Over Current Protection (OCP) / Over Temperature Protection (OTP)
Restriction on Hazardous Substances
WEEE / RoHS
AC Input Range
Full Range: 100 to 240 V, 6.5 to 3.5 A, 50 to 60 Hz
Connectors
1 x M/B 24/20 pin connector (610 mm) 1 x CPU 8/4 pin connector (650 mm) 2 x PCI-E 8/6 pin 5 x Peripheral 4 pin 6 x SATA 1 x Floppy (Y adapter)
Maximum Load
3.3 V: 20 A 5 V: 20 A 12 V: 38 A -12 V: 0.5 A 5 Vsb: 2.5 A
Combined Wattage
3.3 V: 100 W 5 V: 100 W 12 V: 456 W -12 V: 6 W 5 Vsb: 12.5 W
