User manual Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL

Operating instructions and pdf manual for use - Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL User manual, User manual Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL, Senal, ENG-18RL, Broadcast, Omnidirectional, Dynamic, ENG-


User manual for Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL
  • Manufacturer: Senal
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Handheld
  • Safety instructions
  • Startup and operation of the handheld
  • Tips for setting up your Senal
  • Settings and expert assistance
  • Contact Senal service
  • Troubleshooting
  • Warranty information
  • Price: 99 USD

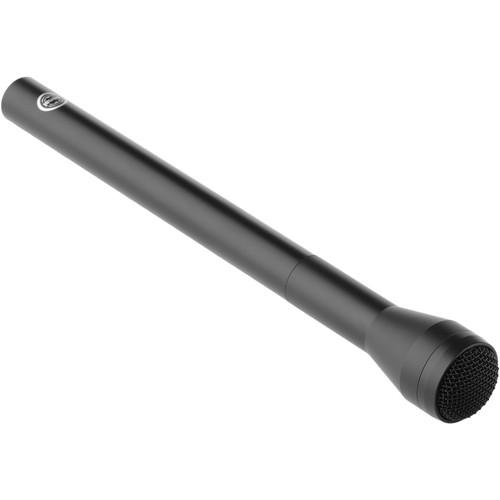

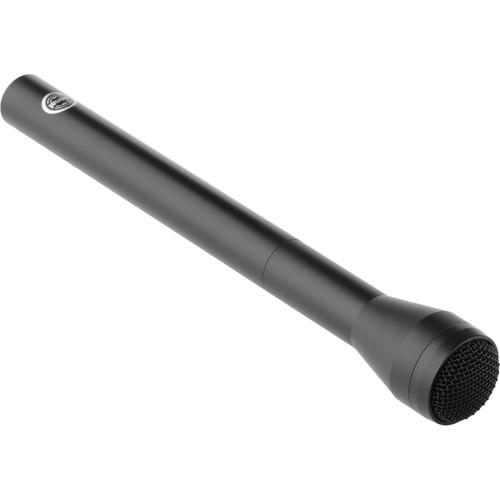

Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL
Click to enlarge image

We recommend checking out our discussion threads on the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL, which address similar problems with connecting and setting up Handheld Senal.



User manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL

The user manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Handheld.

The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
If you own a Senal handheld and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RLDownload user manual for Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL
(PDF file, 0.39 MB)
Additional parameters of the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL:
Transducer Dynamic
Polar Pattern Omnidirectional
Frequency Response 50 Hz to 18 kHz
Sensitivity -53 dB/Pa (2.2 m/V/Pa) ± 3 dB, 1Pa = 94 dB SPL
Impedance 500 Ω
Connector XLR male
Material Cast aluminum alloy
Dimensions 1.3 x 9.1" (3.4 x 23.1 cm)
Weight 4.8 oz (137 g)
Packaging Info
Package Weight 0.75 lb
Box Dimensions (LxWxH) 11.1 x 5.1 x 2.6"
The user manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL can be downloaded in .pdf format if it did not come with your new handheld, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Senal users keep a unique electronic library for Senal handhelds, where you can use our link to download the user manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL.

The user manual lists all of the functions of the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL, all the basic and advanced features and tells you how to use the handheld. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Senal service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Senal ENG-18RL Broadcast Omnidirectional Dynamic ENG-18RL. User manuals are also available on the Senal website under Pro Audio - Location Sound - Handheld.
