User manual Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77

Operating instructions and pdf manual for use - Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77 User manual, User manual Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77, Senal, MS-77, DSLR/Video, Mini, Shotgun, Microphone, Kit, MS


User manual for Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77
  • Manufacturer: Senal
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Shotgun
  • Safety instructions
  • Startup and operation of the shotgun
  • Tips for setting up your Senal
  • Settings and expert assistance
  • Contact Senal service
  • Troubleshooting
  • Warranty information
  • Price: 150 USD
We recommend checking out our discussion threads on the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77, which address similar problems with connecting and setting up Shotgun Senal.



User manual for the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77

The user manual for the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Shotgun.

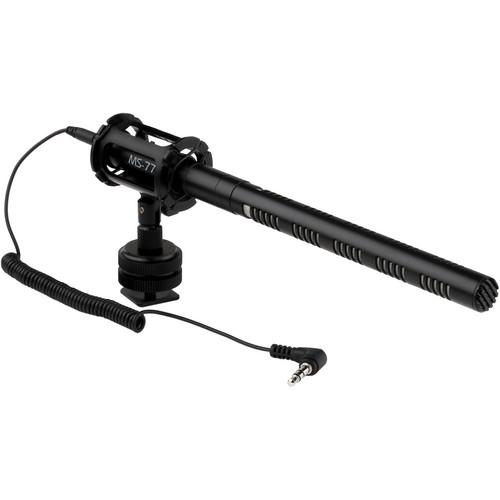

The MS-77 DSLR/Video Mini Shotgun Microphone Kit from Senal is a complete professional solution for recording audio directly to your DSLR or camcorder. With a professional electret condenser capsule and a lightweight pen-sized design, it allows for accurate dialog capture without compromising your compact setup or getting in the way of your shot.

The MS-77 has a hypercardioid polar pattern that allows it to clearly pick up subjects directly in front of it while strongly rejecting unwanted off-axis sound. Designed for the clear capture of dialog, the MS-77 is optimized for applications such as capturing interviews both in and outdoors. Its small, 7.6" frame stays out of the frame when mounted to your DSLR, assuring your mic will never be in your shot, even with most wide-angle lenses.

The MS-77 has an SPL handling of up to 126dB, allowing it be used with ease on louder sources. For quieter or more subtle subjects, the MS-77 has a 3-stage gain control offering 0, 10, or 20dB of additional gain, allowing you to bypass the notoriously noisy preamps aboard many cameras and camcorders. Featuring flexible, convenient and durable detachable cabling, the mic comes with a partially coiled 7-inch 3.5mm cable for camera mounting and a 10' straight 3.5mm cable for boom mounting. The kit also includes a rugged shockmount that can be mounted directly to a boompole, and a shoe-mount you can attach for mounting to a camera. The shockmount slides effortlessly onto the base of the microphone for a sturdy hold and the camera shoe-mount screws easily into the bottom of the shockmount. Its slim profile allows fast and easy access to all controls and it can be tilted on the shockmount, allowing you to adjust the angle of the mic as needed. The included windscreen helps reduce wind noise while in use. The kit includes a limited 10-year warranty.
If you own a Senal shotgun and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77Download user manual for Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77
(PDF file, 0.99 MB)
Additional parameters of the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77:
Transducer Type Back Electret Condenser
Polar Pattern Hypercardioid
Frequency Response 30 Hz to 18 kHz
Impedance 250 ohms ±30% (@ 1 kHz)
SPL 126 dB (at 1kHz no more 1% T.H.D)
Sensitivity -42 dB ±3 dB (0 dB = 1 V/Pa @ 1 kHz)
Connector 1/8" (3.5 mm) stereo
Cables Camera mounting cable: 7" (17.8 cm) {2" (5 cm) straight + 3" (7.62 cm) coiled + 2" (5 cm) straight}
Boom mounting cable: 10' (305 cm) straight
Power Requirements 2x 377 (SR6265W) Button-Cell Batteries
Battery Life 60 Hours of Continuous Use (Approximate) @ 0dB Unity Gain
Dimensions (Ø x L) 0.5 x 7.6" (1.3 x 19.3 cm)
Weight 1.6 oz (45 g), microphone only
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 9.1 x 4.5 x 1.8"
The user manual for the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77 can be downloaded in .pdf format if it did not come with your new shotgun, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Senal users keep a unique electronic library for Senal shotguns, where you can use our link to download the user manual for the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77.

The user manual lists all of the functions of the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77, all the basic and advanced features and tells you how to use the shotgun. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Senal service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Senal MS-77 DSLR/Video Mini Shotgun Microphone Kit MS-77. User manuals are also available on the Senal website under Pro Audio - Location Sound - Shotgun.
