User manual for Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A
- Manufacturer: Sennheiser
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Wireless Systems
- Safety instructions
- Startup and operation of the wireless systems
- Tips for setting up your Sennheiser
- Settings and expert assistance
- Contact Sennheiser service
- Troubleshooting
- Warranty information
Click to enlarge image
|
We recommend checking out our discussion threads on the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A,
which address similar problems with connecting and setting up Wireless Systems Sennheiser.
|
User manual for the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A
The user manual for the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

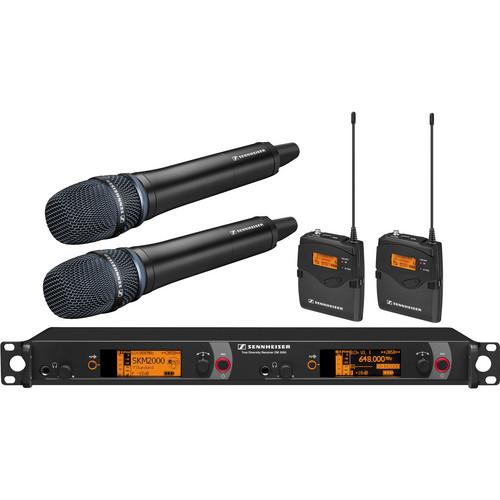

The black 2000 Series Dual Handheld and Dual Bodypack Transmitter Wireless Microphone System from Sennheiser is a professional wireless microphone package designed to deliver high- quality, reliable wireless performance for concerts, lectures, meetings, and a wide variety of other pro audio applications. This system includes the EM 2050 twin wireless receiver, two black SKM 2000-XP handheld microphone transmitters with black Neumann KK 205 condenser capsules, and two SK 2000-XP bodypack transmitters.
|
If you own a Sennheiser wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A:
| Modulation | wideband FM | | RF Frequency Range | Aw: 516 - 558MHz | | Carrier Frequency | max. 3,000 | | Presets | max. 64 | | Switching Bandwidth | max. 75 MHz | | Audio Equalizer Presets | none, flat
-3 dB at 200 Hz, low cut
-3 dB at 200 Hz and +5.5 dB at 10 kHz, low cut/high boost
+5.5 dB at 10 kHz, high boost | | Peak Deviation | ± 48 kHz | | Nominal Deviation | ± 24 kHz | | Output Voltage | +12 dBu, 1/4" jack +18 dBu, XLR jack | | Principle of Operation | true diversity | | Sensitivity | 2 μV for 52 dBA rms S/N | | Adjacent Channel Rejection | typ. ≥ 80 dB | | Blocking | ≥ 80 dB | | Squelch | off, 5 - 25 dBμV | | Intermodulation Spacing | typ. ≥ 75 dB | | Antenna Connector | 2 BNC (50Ω) | | Cascadable | 2 BNC (50Ω) | | Gain | 0 dB ±0.5 dB | | Compander | HDX | | Frequency Response | 25 - 18,000 Hz | | Signal-to-Noise Ratio | > 120 dB(A) | | Total Harmonic Distortion | < 0.9% | | Outputs | 2x 1/4" TRS headphone out
2x XLR balanced out
2x 1/4" TRS balanced out | | Audio Output Level | +18 dBu max | | Booster | 12 V DC, 2 x 200 mA | | Operating Temperature | 14 °F - 131 °F (-10 °C - +55 °C) | | Power Supply | 100 - 200 V AC, 50/60 Hz | | Current Consumption | max 0.25 A | | Dimensions | 8.5 x 19 x 1.7" (217 x 483 x 43 mm) | | Weight | 6.4 lb (2,900 g) | | Modulation | FM | | Input Sensitivity | 48 dB, adjustable in 6 dB steps | | Frequency Stability | ≤± 15 ppm | | RF Frequency Range | Aw: 516 - 558MHz | | Carrier Frequency | max. 3,000 | | Presets | max. 64 | | Power Consumption | typ. 180 mA (30 mW), nominal voltage
≤ 25 μA, with switched off radio microphone | | Switching Bandwidth | max. 75 MHz | | RF Output Power | selectable from 10, 30, 50, or 100 mW | | Nominal Deviation | ±24 kHz | | Peak Deviation | ± 48 kHz | | Compander | HDX | | Frequency Response | 80 - 18,000 Hz | | Total Harmonic Distortion | < 0.9% | | Signal-to-Noise Ratio | ≥ 120 dBA (@ 1mV peak deviation) | | Compliance | CE, FCC IC | | Power Supply | 2x 1.5 V (AA) | | Operating Time | typ. 8 h | | Operating Temperature | 14 °F - 131 °F (-10 °C - +55 °C) | | Dimensions | 1.96 x 10.07" (50 x 265 mm) | | Weight | .99 lb (450 g) | | Type | externally polarized condenser microphone capsule | | Polar Pattern | super cardioid | | Dimensions | not specified by manufacturer | | Weight | not specified by manufacturer | | Modulation | FM | | RF Frequency Range | Aw: 516 - 558MHz | | Carrier Frequency | max. 3,000 | | Frequency Stability | ≤± 15 ppm | | Presets | max. 64 | | Switching Bandwidth | max. 75 MHz | | RF Output Power | selectable from 10, 30, 50, or 100 mW | | Nominal Deviation | ±24 kHz | | Peak Deviation | ± 48 kHz | | Compander | HDX | | Frequency Response | line: 25 - 18,000 Hz
mic: 80 - 18,000 Hz | | Total Harmonic Distortion | < 0.9% | | Signal-to-Noise Ratio | > 120 dB(A) (@ 1 mV, peak deviation) | | Compliance | CE, FCC IC | | Audio Input Connectors | Sennheiser (3-pin) socket | | Power Supply | 2x 1.5 V (AA) | | Operating Time | typ. 8 h | | Maximum Input Voltage | 3 Veff (mic + line) | | Input Impedance | mic: 40 kΩ
line: 1 MΩ | | Input Sensitivity | 60 dB, adjustable in 3 dB steps | | Operating Temperature | 14 °F - 131 °F (-10 °C - +55 °C) | | Dimensions | 3.2 x 2.5 x .94" (82 x 64 x 24 mm) | | Weight | 5.6 oz (160 g) | |
The user manual for the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sennheiser users keep a unique electronic library
for Sennheiser wireless systemss,
where you can use our link to download the user manual for the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A.
The user manual lists all of the functions of the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sennheiser service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sennheiser 2000 Series Dual Handheld and Dual 2000C2-205BK-A. User manuals are also
available on the Sennheiser website under Pro Audio - Live Sound - Wireless Systems.
