User manual for the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B

The user manual for the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Personal Monitoring.

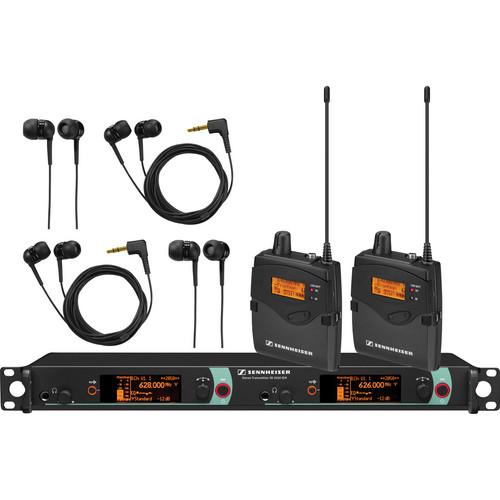

Combining superior construction with artistic and technical freedom, the Sennheiser Dual Channel Stereo IEM System B (626 - 698 MHz) is built for professional use, yet affordable enough to fit the budget of even a modest size venue, post-production house, audio studio or mobile broadcast setup. The system is both rugged and reliable; it was designed to be portable, rack-mountable and road dependable. This particular Dual Channel Stereo IEM System was designed specifically for the 626 - 698 MHz frequency range and features Sennheiser's twin channel, wireless SR 2050-XP IEM Audio Transmitter and two EK 2000 IEM Portable Monitoring Diversity Receivers. The system also comes with four sets of matching Sennheiser IE4 Earphones for Wireless Monitor Applications.
If you own a Sennheiser personal monitoring and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B:
Transmitter
Channels Dual Channel
Frequency Response 25 Hz - 15 kHz
Modulation FM / MPX-Stereo
RF Frequency Range 626 - 698 MHz (B)
Carrier Frequency 3000 (max)
Presets 32 (max)
Switching 75 MHz (max)
RF Output Up to 100mW
Deviation ±24 kHz (Nominal)
±48 kHz (Peak)
Compander HDX
Signal to Noise Ratio >90dB(A)
Total Harmonic Distortion (THD) <0.9%
Antenna BNC x 2
Connectors BNC Antenna Connectors x 2
XLR Connectors x 2
1/4" (6.35 mm) Jacks x 2
Input Voltage +22dBu (max)
Power AC 100 - 240 V, 50/60 Hz
Current Consumption 0.2A
Dimensions (WxDxH) 17.2 x 8.5 x 1.7" (43.6 x 21.5 x 4.3 cm)
Weight 6.4 lb (2.9 kg)
Receiver
Overall Frequency Response 25 Hz - 15 kHz
Type of Receiver FM / MPX-Stereo
RF Carrier Frequency Range 626 - 668 MHz (B)
Signal-to-Noise Ratio >90dB(A)
# Of Channels 32 (max)
Type of Output(s) 1/8" (3.5 mm) Mini-Jack
Power Requirements AA Alkaline Batteries (1.5 V) x 2
Last up to 4 - 6 Hrs
Display LCD
Dimensions (WxHxD) 3.22 x 2.52 x 0.94" (8.2 x 6.4 x 2.4 cm)
Weight 7.05 oz (200 g)
Earphones
Type In-Ear Dynamic
Frequency Range Not specified by manufacturer
Impedance 16 Ohms
Sensitivity 106dB
Maximum Input Power Not specified by manufacturer
Connectors 1/8" (3.5 mm) Mini-Plug
Cable Length 55.2" (140.2 cm)
Weight Not specified by manufacturer
The user manual for the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B can be downloaded in .pdf format if it did not come with your new personal monitoring, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sennheiser users keep a unique electronic library for Sennheiser personal monitorings, where you can use our link to download the user manual for the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B.

The user manual lists all of the functions of the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B, all the basic and advanced features and tells you how to use the personal monitoring. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sennheiser service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sennheiser Dual Channel Stereo IEM System B 2000IEM2-B. User manuals are also available on the Sennheiser website under Pro Audio - Live Sound - Personal Monitoring.
