User manual Sennheiser ew 100 ENG G3 Wireless and Water-Resistant

Operating instructions and pdf manual for use - Sennheiser ew 100 ENG G3 Wireless and Water-Resistant User manual, User manual Sennheiser ew 100 ENG G3 Wireless and Water-Resistant, Sennheiser, ew, 100, ENG, G3, Wireless, Water-Resistant,


User manual for Sennheiser ew 100 ENG G3 Wireless and Water-Resistant

Sennheiser ew 100 ENG G3 Wireless and Water-Resistant
  • Manufacturer: Sennheiser
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Sennheiser
  • Settings and expert assistance
  • Contact Sennheiser service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant, which address similar problems with connecting and setting up Wireless Systems Sennheiser.



User manual for the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant

The user manual for the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

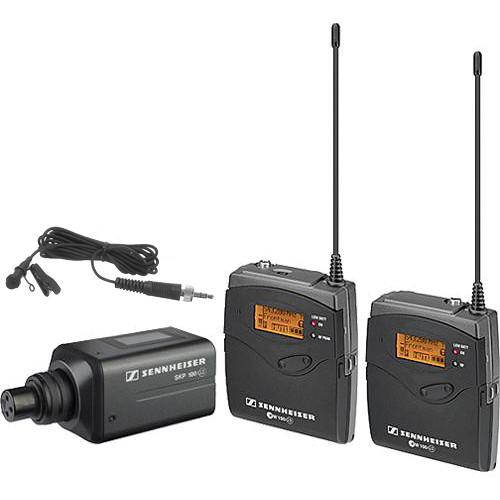

The Sennheiser ew 100 ENG G3 Wireless and Water-Resistant Omnidirectional Lavalier Microphone Kit from B&H includes an EK 100 G3 bodypack receiver, an SK 100 G3 bodypack transmitter, an ME2 clip-on lavalier mic, a second water-resistant lavalier mic, and an SKP 100 G3 plug-on transmitter. The water-resistant mic is protected against bad weather, humidity, and perspiration, allowing it to be used in theater and broadcast applications. The system is tuned between 626 and 668 MHz.
If you own a Sennheiser wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant:
Specifications
    • Sennheiser ew 100 ENG G3 Wireless Microphone Combo System - B (626-668 MHz)
      System
      Type of System Camera Mount Lavalier HDX Wideband FM
      RF Carrier Frequency Range B (626-668 MHz)
      10 + 1 user bank, 12 presets per bank
      Approx. Working Range Maximum 490'
      Overall Frequency Response 40 Hz - 18 kHz
      Signal-to-Noise Ratio Greater than 110 dB
      # Of Channels 1680
      RF Output Power 30 mW
      Diversity Circuitry Adaptive Antenna Diversity
      Squelch Off / Low / Medium / High
      Receiver
      Type of Receiver EK 100 G3 Bodypack/Camera Mount Receiver
      Type of Outputs 1/8" Mini-Jack
      Headphone Monitoring None, (Monitor Audio VIA your Camcorder's Audio Output)
      Battery Type/Approx. Life 2x AA Batteries, 8 - 10 hours
      Display Backlit LCD Display
      Mounting Options Camera / Belt
      Antenna Type Single Flexible Antenna (M3 Type)
      Closed Dimensions (WxHxD) 3.23 x 2.52 x 0.94" (82 x 64 x 24 mm)
      Weight 5.5 oz (156 g)
      Transmitter
      Type of Transmitter SK 100 G3 Bodypack Transmitter
      Type of Input Connector Unbalanced Locking 1/8" (3.5 mm), Mic/Line
      Type of Microphone ME 2 Lavalier Microphone
      Polar Pattern Omnidirectional
      Interchangeable Mic Heads Yes, User Has the Option of using Other Sennheiser Evolution Series Lavaliers
      Battery Type/Approx. Life 2x AA Batteries
      Life: 8 - 10 hours
      Mute Switch Yes
      Level Control Yes, Variable Microphone Input Level
      Antenna Type M3 Type
      Display Backlit LCD Display
      Dimensions (WxHxD) 3.22 x 2.51 x 0.86" (82 x 64 x 22 mm)
      Weight 5.64 oz (160 g)
      Transmitter
      Type of Transmitter SKP 100 G3 Plug-on Transmitter
      Type of Input Connector XLR Female
      Interchangeable Mic Heads Any Dynamic Microphone with 3-pin XLR male Output
      Battery Type/Approx. Life 2x AA Batteries
      Life: 8 - 10 hours
      Mute Switch Yes
      Level Control Yes, Variable Microphone Input Level
      Antenna Type Utilizes Microphone Body as Antenna
      Display LCD Display: Channel, Low Battery Warning
      Dimensions 4.13 x 1.69 x 1.69" (105 x 43 x 43 mm)
      Weight 6.88 oz (195 g)
      Packaging Info
      Box Dimensions (LxWxH) 14.8 x 8.0 x 3.0"
    • Sanken COS-11D Normal Sens, Omnidirectional Lavalier Microphone & Hardwired 3.5 mm Connector for Sennheiser Evolution Wireless Transmitter (Black)
      Transducer Self-polarized condenser
      Polar Pattern Omnidirectional
      Frequency Response 50 Hz - 20 kHz
      Dynamic Range (Typical) Not Specified By Manufacturer
      Signal-to-Noise Ratio 28 dB-A
      Maximum Input Sound Level 127 dB
      Power Requirements +2.5 V to +12 V from transmitter
      Output Impedance 180 ohms
      Output Connectors 1/8" (3.5 mm) Mini Connection
      Pad No
      Low Frequency Roll-Off No
      Dimensions (LxDiameter) 0.63 x 0.15" (16.1 x 4 mm)
      Weight 2.89 oz (82 g)
      Packaging Info
      Box Dimensions (LxWxH) 4.6 x 3.1 x 1.4"
    The user manual for the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sennheiser users keep a unique electronic library for Sennheiser wireless systemss, where you can use our link to download the user manual for the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant.

    The user manual lists all of the functions of the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sennheiser service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sennheiser ew 100 ENG G3 Wireless and Water-Resistant. User manuals are also available on the Sennheiser website under Pro Audio - Location Sound - Wireless Systems.
