User manual Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom

Operating instructions and pdf manual for use - Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom User manual, User manual Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom, Sennheiser, ew, 112-P, G3-A, Wireless, Lavalier, Syste

User manual for Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom
  • Manufacturer: Sennheiser
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Sennheiser
  • Settings and expert assistance
  • Contact Sennheiser service
  • Troubleshooting
  • Warranty information
  • Price: 679 USD

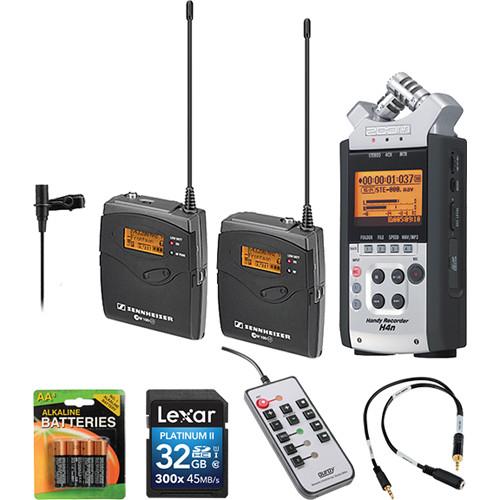

Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom
Click to enlarge image
We recommend checking out our discussion threads on the Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom, which address similar problems with connecting and setting up Wireless Systems Sennheiser.


User manual for the Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom

The user manual for the Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

The Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom H4nSP Recorder & Accessories Kit from B&H includes everything you'll need in portable wireless for capturing and recording audio. It can be used in several environments for applications such as video, ENG (Electronic News Gathering), field recording, interviews, and more.
If you own a Sennheiser wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sennheiser ew 112-P G3-A Wireless Lavalier System with Zoom:
Specifications
  • Sennheiser EK 100 G3 Wireless Camera-Mount Receiver (A: 516-558 MHz)
    System
    Type of System Camera-Mountable, Adaptive-Diversity UHF Wireless Lavalier Mic System
    RF Carrier Frequency Range A (516-558 MHz)
    RF Output Power 30 mW
    Diversity Circuitry Adaptive Antenna Diversity
    Squelch Off / Low / Medium / High
    Overall Frequency Response 25 Hz - 18 kHz
    Signal-to-Noise Ratio > 110 dBA
    # Of Channels 1680
    20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
    Microphone
    Transducer Electret Condenser
    Polar Pattern Omnidirectional
    Frequency Response 60 Hz - 18 kHz
    Signal-to-Noise Ratio > 110 dB
    Power Requirements Phantom Power Provided by Wireless Transmitter
    Output Connector 1/8" (3.5 mm) (TS, Unbalanced) Mini Jack
    Receiver
    Type of Receiver EK 100 Portable Receiver
    Type of Outputs 1/8" (3.5 mm) Mini
    Headphone Monitoring No
    Power Requirements 1.5 V
    Battery Type/Approx. Life AA Batteries 1.5 V x2
    Life: 8 - 10 hours
    Display Backlit LCD Display
    Mounting Options CA 2 Shoe Mount Adapter (Included)
    Dimensions 3.23 x 2.52 x 0.94" (82 x 64 x 25 mm)
    Weight 5.64 oz (160 g)
    Transmitter
    Type of Transmitter SK 100 Bodypack Transmitter
    Type of Input Connector Locking 1/8" (3.5 mm) Mini
    Type of Microphone ME 2 Lavalier Microphone
    Polar Pattern Omnidirectional
    Battery Type/Approx. Life AA 1.5 V Batteries x2
    Life: 8 - 10 hours
    Mute Switch Programmable Mute Function
    Level Control Yes
    Antenna Type 1/4 Wave
    Display Backlit LCD
    Dimensions (WxDxH) 3.23 x 2.52 x 0.94" (82 x 64 x 25 mm)
    Weight 5.64 oz (160 g)
    Packaging Info
    Box Dimensions (LxWxH) 15.984 x 5.0 x 3.071"
  • Sennheiser SK 100 G3 Wireless Bodypack Transmitter - A: 516-558 MHz
    System
    Type of System Camera-Mountable, Adaptive-Diversity UHF Wireless Lavalier Mic System
    RF Carrier Frequency Range A (516-558 MHz)
    RF Output Power 30 mW
    Diversity Circuitry Adaptive Antenna Diversity
    Squelch Off / Low / Medium / High
    Overall Frequency Response 25 Hz - 18 kHz
    Signal-to-Noise Ratio > 110 dBA
    # Of Channels 1680
    20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
    Microphone
    Transducer Electret Condenser
    Polar Pattern Omnidirectional
    Frequency Response 60 Hz - 18 kHz
    Signal-to-Noise Ratio > 110 dB
    Power Requirements Phantom Power Provided by Wireless Transmitter
    Output Connector 1/8" (3.5 mm) (TS, Unbalanced) Mini Jack
    Receiver
    Type of Receiver EK 100 Portable Receiver
    Type of Outputs 1/8" (3.5 mm) Mini
    Headphone Monitoring No
    Power Requirements 1.5 V
    Battery Type/Approx. Life AA Batteries 1.5 V x2
    Life: 8 - 10 hours
    Display Backlit LCD Display
    Mounting Options CA 2 Shoe Mount Adapter (Included)
    Dimensions 3.23 x 2.52 x 0.94" (82 x 64 x 25 mm)
    Weight 5.64 oz (160 g)
    Transmitter
    Type of Transmitter SK 100 Bodypack Transmitter
    Type of Input Connector Locking 1/8" (3.5 mm) Mini
    Type of Microphone ME 2 Lavalier Microphone
    Polar Pattern Omnidirectional
    Battery Type/Approx. Life AA 1.5 V Batteries x2
    Life: 8 - 10 hours
    Mute Switch Programmable Mute Function
    Level Control Yes
    Antenna Type 1/4 Wave
    Display Backlit LCD
    Dimensions (WxDxH) 3.23 x 2.52 x 0.94" (82 x 64 x 25 mm)
    Weight 5.64 oz (160 g)
    Packaging Info
    Box Dimensions (LxWxH) 15.984 x 5.0 x 3.071"
  • Sennheiser ME 2 Lavalier Mic
    System
    Type of System Camera-Mountable, Adaptive-Diversity UHF Wireless Lavalier Mic System
    RF Carrier Frequency Range A (516-558 MHz)
    RF Output Power 30 mW
    Diversity Circuitry Adaptive Antenna Diversity
    Squelch Off / Low / Medium / High
    Overall Frequency Response 25 Hz - 18 kHz
    Signal-to-Noise Ratio > 110 dBA
    # Of Channels 1680
    20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
    Microphone
    Transducer Electret Condenser
    Polar Pattern Omnidirectional
    Frequency Response 60 Hz - 18 kHz
    Signal-to-Noise Ratio > 110 dB
    Power Requirements Phantom Power Provided by Wireless Transmitter
    Output Connector 1/8" (3.5 mm) (TS, Unbalanced) Mini Jack
    Receiver
    Type of Receiver EK 100 Portable Receiver
    Type of Outputs 1/8" (3.5 mm) Mini
    Headphone Monitoring No
    Power Requirements 1.5 V
    Battery Type/Approx. Life AA Batteries 1.5 V x2
    Life: 8 - 10 hours
    Display Backlit LCD Display
    Mounting Options CA 2 Shoe Mount Adapter (Included)
    Dimensions 3.23 x 2.52 x 0.94" (82 x 64 x 25 mm)
    Weight 5.64 oz (160 g)
    Transmitter
    Type of Transmitter SK 100 Bodypack Transmitter
    Type of Input Connector Locking 1/8" (3.5 mm) Mini
    Type of Microphone ME 2 Lavalier Microphone
    Polar Pattern Omnidirectional
    Battery Type/Approx. Life AA 1.5 V Batteries x2
    Life: 8 - 10 hours
    Mute Switch Programmable Mute Function
    Level Control Yes
    Antenna Type 1/4 Wave
    Display Backlit LCD
    Dimensions (WxDxH) 3.23 x 2.52 x 0.94" (82 x 64 x 25 mm)
    Weight 5.64 oz (160 g)
    Packaging Info
    Box Dimensions (LxWxH) 15.984 x 5.0 x 3.071"
  • Zoom H4nSP 4-Channel Handy Recorder (2015)
    Type Handheld multi-track stereo SD card recorder
    Recording/Reading Methods SD/SDHC card (up to 32 GB, 2 GB included)
    USB connection to Windows computer/Mac
    Recording Bit Rate WAV: 16- and 24-bit
    MP3: 48 to 320 kbps
    Sampling Frequency WAV: 44.1/48/96 kHz
    MP3 - 44.1/48 kHz
    Number of Channels 2 or 4, depending on mode
    Recording Time Per 1GB of SD memory
    Stereo Mode:
    MP3: 17 hours 21 mins (128 kbps), 6 hours 56 mins (320 kbps)
    WAV: 1 hour 34 mins (16-bit/44.1 kHz), 1 hour 26 mins (16-bit/48 kHz), 28 mins (24-bit/96 kHz)
    4-Channel Mode:
    WAV: 47 mins (16-bit/44.1 kHz), 28 mins (24-bit/48 kHz)
    MTR Mode:
    WAV: 3 hours 8 mins (16-bit/44.1 kHz)
    AD/DA Conversion 24-bit, 128x oversampling
    Signal Processing 32-bit
    Phantom Power 48 V, 24 V, off
    Inputs 2 x XLR/TRS combo inputs (balanced, unbalanced)
    1 x 3.5mm mic input
    2 x Built-in condenser microphones
    1 x USB 2.0 port
    Output 1 x 3.5mm mini stereo headphone/line-out jack
    1 x USB 2.0 port (same as input)
    Power 2 x AA or LR6 batteries
    AC wall power
    USB bus power
    Battery Life Approx 6 hours (normal) or 11 hours (stamina mode)
    Display 128 x 64 pixel 1.9" backlit LCD
    Dimensions (WxDxH) 2.75 x 6.1 x 1.4" (70 x 156 x 35mm)
    Weight 9.9 oz (280g) (without batteries)
    Packaging Info
    Box Dimensions (LxWxH) 7.6 x 5.6 x 2.9"
  • Lexar 32GB Platinum II UHS-I 300x SDHC Memory Card (Class 10)
    Card Type SDHC
    Storage Capacity 32 GB
    Speed Class 10
    UHS Speed Class U1
    Speed (X-rating) 300x
    Bus Interface Speed UHS Class I
    Data Transfer Read Speed 45 MB/s Maximum
    Write Speed 20 MB/s Maximum
    Durability Not Specified By Manufacturer
    Insertion/Removal Cycles Not Specified By Manufacturer
    Operating Temperature -13 to 185°F/ -25 to 85°C
    Storage Temperature -40 to 185°F/ -40 to 85°C
    Error Correction Not Specified By Manufacturer
    Built-in Write-Protect Switch Yes
    File System Not Specified By Manufacturer
    RoHS Compliant Yes
    Packaging Info
    Box Dimensions (LxWxH) 4.78 x 3.5 x 1.0"
  • Auray RCH4N - Remote Control for Zoom H4n
    Dimensions 3.6 × 1.6 × 0.4" (9 × 4.1 × 1.1 cm)
    Cable Length 6.4' (1.95 m)
    Weight 1.9 oz (53 g)
    Packaging Info
    Box Dimensions (LxWxH) 5.9 x 3.1 x 1.8"
  • Duracell 1.5V AA Coppertop Alkaline Batteries (4-Pack)
    Chemistry Alkaline
    Size AA
    Capacity 2850 mAh
    Output Voltage 1.5 V
    Storage Life 7 years
    Operating Temperature -4 to 129.2°F / -20 to 54°C
    Packaging Info
    Box Dimensions (LxWxH) 2.9 x 2.3 x 0.6"
  • Kopul ACH4-25MON Line-to-Mic Attenuator Cable
    Cable Length 1' (30.5 cm)
    Attenuation 25 dB
    Connector 1 1/8" (3.5 mm) straight TRS
    Connector 2 1/8" (3.5 mm) straight TRS
    Headphone Connector 1/8" (3.5 mm)
    Compatibility Canon:
  • EOS Rebel T2i(550D)/T3i(600D)/T4i(650D)/T5i(700D)/SL1(100D)
  • EOS 60D/70D/7D/6D
  • EOS 5D MK ll/MK lll
  • EOS 1DX/1DC/1D MK lV
    Nikon:
  • D5100/D5200
  • D7000/D7100
  • D300S
  • D600/D610
  • D800/D800E
  • D3S
  • D4
    Pentax:
  • K-5 ll/K-5 llS
    • Packaging Info
    Box Dimensions (LxWxH) 4.8 x 3.9 x 0.5"
