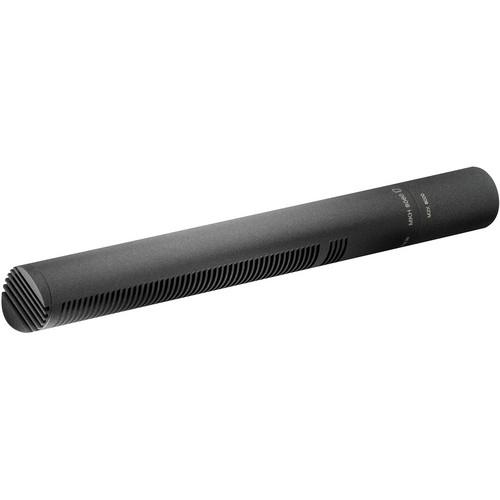

Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060
  • Manufacturer: Sennheiser
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Shotgun
  • Safety instructions
  • Startup and operation of the shotgun
  • Tips for setting up your Sennheiser
  • Settings and expert assistance
  • Contact Sennheiser service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060, which address similar problems with connecting and setting up Shotgun Sennheiser.


User manual for the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060

The user manual for the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Shotgun.

The MKH 8060 from Sennheiser is a lightweight and rugged short shotgun microphone that offers true and natural sound. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.

The enhanced short interference tube yields a pleasing supercardioid/lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. Due to its compact design, it is ideal for boom or camera mounting.

The microphone ships with an analog output module with an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module.
If you own a Sennheiser shotgun and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060Download user manual for Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060
(PDF file, 1.26 MB)
Additional parameters of the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060:
Specifications
    Transducer Symmetrical RF
    Polar Pattern Supercardioid/Lobar
    Frequency Response 50Hz to 25kHz
    Sensitivity -24 dBV/Pa (63mV/Pa)
    Noise EIN: 11dB (A) (DIN-IEC 651), 23dB (CCIR 268-3)
    Maximum Sound Pressure Level (SPL) 129dB
    Impedance Nominal: 25Ω
    Minimum Terminating: 2kΩ
    Output Connectors 1 x XLR (as supplied)
    Pad No
    Low Frequency Roll-Off No
    Power Requirements 48V, +/-4V phantom (P48, IEC 61938)
    3.3mA current consumption
    Operating Temperature -14°F to 140°F (-10°C to 60°C)
    Dimensions Diameter: 0.75" (19mm)
    Length (Microphone): 5.7" (145mm)
    Length (with MZX 8000 Module): 7.0" (178mm)
    Weight Microphone: 2.8 oz (79g)
    With MZX 8000 Module: 3.9 oz (111g)
    Packaging Info
    Package Weight 0.95 lb
    Box Dimensions (LxWxH) 9.7 x 6.9 x 3.6"
    Sennheiser MKH 8060/8070 Demo
    The user manual for the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060 can be downloaded in .pdf format if it did not come with your new shotgun, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sennheiser users keep a unique electronic library for Sennheiser shotguns, where you can use our link to download the user manual for the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060.

    The user manual lists all of the functions of the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060, all the basic and advanced features and tells you how to use the shotgun. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sennheiser service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sennheiser MKH 8060 - Short Shotgun Microphone MKH8060. User manuals are also available on the Sennheiser website under Pro Audio - Location Sound - Shotgun.
