User manual for the Sennheiser MKH 8070 - Long Shotgun Microphone MKH8070
The user manual for the Sennheiser MKH 8070 - Long Shotgun Microphone MKH8070 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Shotgun.

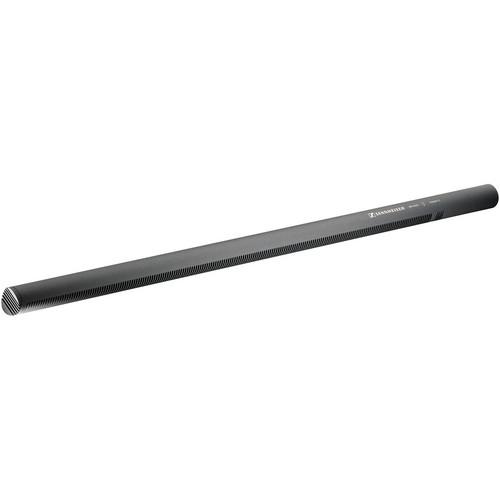

The MKH 8070 from Sennheiser is a long shotgun microphone that is ideal for broadcast and sporting applications. With high directivity, the microphone captures true and natural sound at great distances. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.
The long interference tube yields a pleasing lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. The microphone performs even under the toughest sonic and environmental conditions. It ships with an analog output module featuring an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module.
|
If you own a Sennheiser shotgun and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sennheiser MKH 8070 - Long Shotgun Microphone MKH8070 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sennheiser MKH 8070 - Long Shotgun Microphone MKH8070:
| Transducer | Symmetrical RF | | Polar Pattern | Lobar | | Frequency Response | 45Hz to 20kHz | | Sensitivity | -19dBV/Pa (112mV/Pa) | | Noise | EIN: 8dB (A) (DIN-IEC 651), 21dB (CCIR 268-3) | | Maximum Sound Pressure Level (SPL) | 124dB | | Impedance | Nominal: 25Ω
Minimum Terminating: 2kΩ | | Output Connectors | 1 x XLR (as supplied) | | Pad | No | | Low Frequency Roll-Off | No | | Power Requirements | 48V, +/-4V phantom (P48, IEC 61938)
3.3mA current consumption | | Operating Temperature | -14°F to 140°F (-10°C to 60°C) | | Dimensions | Diameter: 0.75" (19mm)
Length (Microphone): 17" (432mm)
Length (with MZX 8000 Module): 18.3" (465mm) | | Weight | Microphone: 10.6 oz (301g)
With MZX 8000 Module: 11.7 oz (331g) | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 20.0 x 7.0 x 3.5" | |
