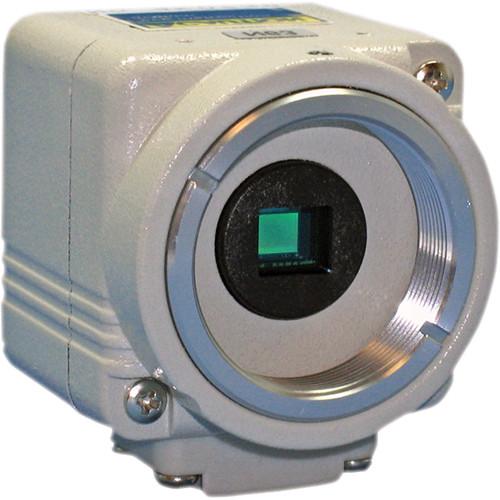

The Sentech 2:1 Interlace Cased Color Camera is a high resolution, 1/3" color CCD, NTSC camera that offers 480 TVL and a 10-bit DSP in a very compact, cased configuration 1.42 x 1.42 x 1.46” (36 x 36 x 37mm). This camera offers an optional user-programmable DSP and setup.
If you own a Sentech wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sentech 2:1 Interlace Cased Color Camera STC-N63CJ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sentech 2:1 Interlace Cased Color Camera STC-N63CJ:
Specifications
    Signal Format NTSC
    Image Sensor 1/3" Interline CCD (ICX408AK)
    Effective Picture Elements 768 (H) x 494 (V)
    Chip Size 5.59 mm (H) x 4.69 mm (V)
    Unit Cell Size 6.35 um (H) x 7.4 um (V)
    Pixel Frequency 14.318 MHz
    Horizontal Frequency 15.734 kHz
    Vertical Frequency 59.94 Hz
    Scanning System 2:1 Interlace
    Video Output Level 1.0 Vpp / 75 Ω
    Horizontal Resolution 480 TVL
    Minimum Illumination 0.17 lux with F1.2 lens
    Lens Type CS-mount
    S/N Ratio More than 48 dB
    Gamma Correction 0.45
    White Balance AWB, White Balance lock, PWB modes
    Aperture Correction On
    AGC (Automatic Gain Control) On
    Blemish Compensation On
    Flicker Correction On / Off
    Back Light Compensation On / Off
    Shutter 1/60, Electronics Iris
    Electronics Iris 1/60 to 1/100,000 sec
    Boards 3x
    Output Format VBS & Y/C
    External Sync None
    Communications DSP: I2 C (Requires USB adapter Jig)
    Power Supply Input Voltage 10.5 to 14 VDC
    Power Consumption 180 mA at 12 VDC
    Dimensions (W x H x D) 1.38 x 1.67 x 2.15" (35 x 42.5 x 54.5 mm)
    Packaging Info
    Package Weight 0.2 lb
    Box Dimensions (LxWxH) 2.7 x 2.2 x 1.9"
