User manual Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U

Operating instructions and pdf manual for use - Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U User manual, User manual Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U, Sharp, LC-80LE661U, 80, -Class, Full, HD, Commercial, LC


User manual for Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U

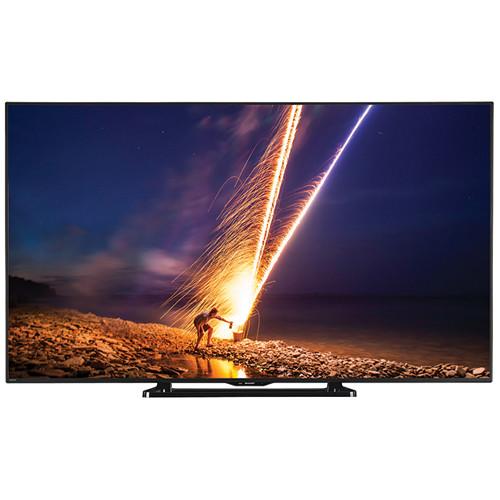

Sharp LC-80LE661U 80
  • Manufacturer: Sharp
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your Sharp
  • Settings and expert assistance
  • Contact Sharp service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U, which address similar problems with connecting and setting up Commercial Monitors Sharp.



User manual for the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U

The user manual for the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

Display detailed 1080p content and enjoy streaming content with the LC-80LE661U 80"-Class Full HD Commercial Smart LED TV from Sharp. This model has an 80"-class LED display and features a Full HD 1920 x 1080 native resolution for viewing detailed high-definition content. The 300 cd/m² brightness output and 5000:1 typical contrast ratio showcases this TV's ability to handle light and dark on-screen images. It also features AquoMotion 240 refresh rate technology to minimize distortion on fast-moving content. As a Smart TV, the LC-80LE661U offers Ethernet and Wi-Fi connectivity, which allows you access Internet streaming content.

This Sharp commercial TV is digital-signage-ready and is suitable for environments such as sports bars and retail stores. With VGA, component video, composite video, and three HDMI inputs, you have a wide assortment of connectivity options. A USB port is also available for multimedia playback. The built-in digital tuner offers free over-the-air programming when connecting an optional antenna. Additionally, the LC-80LE661U delivers stereo sound thanks to its built-in dual 10W speakers. With a 0.4" bezel size, this TV was designed to offer a thin profile.
If you own a Sharp commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U:
Specifications
Display
Size 80.0" / 203.2 cm
Panel Type TFT LCD
Maximum Resolution 1920 x 1080
Display Colors 1.06 billion
Pixel Pitch 0.9225 x 0.9225 mm
Brightness Maximum: 300 cd/m²
Contrast Ratio 5000:1
Dynamic Contrast Ratio 4,000,000:1
Viewing Angle (H/V) 176/176° (CR≥10)
Active Screen Area 71.7 x 40.7" / 182.1 x 103.4 cm
Response Time 4 ms (g-to-g, average)
Orientation Landscape
Backlight LED, edge-lit
Computer Inputs
Video HDMI
Analog RGB
Synchronization Horizontal/vertical separation (TTL:positive/negative), sync on green, composite sync (TTL:positive/negative)
Plug & Play VESA DDC2B
Power Management VESA DPMS
Video
Color System NTSC-M, PAL-N, PAL-M
Tuner NTSC, ATSC
Connectivity
Input 3 x HDMI
1 x VGA
1 x 3 RCA component video
1 x RCA composite video
2 x Stereo RCA audio L/R
1 x 1/8" / 3.5 mm audio
1 x RF
1 x USB
Output 1 x Stereo RCA
1 x Digital optical
Other Ports 1 x Ethernet RJ-45
1 x RS-232C
1 x AC power cord
General
Bezel Width 0.4" / 10.2 mm
VESA Compatibility 600 x 400 mm
Speakers 2 x 10 W
Power Requirements 100 to 240 VAC, 50/60 Hz
Power Consumption 320 W
Operating Environment Temperature: 32 to 104°F / 0 to 40°C
Humidity: 30 to 80% (no condensation)
Dimensions (WxHxD) Without Stand: 70.3 x 41.5 x 4.5" / 1784.9 x 1055.0 x 114.0 mm
With Stand: 70.3 x 43.0 x 18.1" / 1784.9 x 1091.0 x 461.0 mm
Weight Approximately: 112.4 lb / 51.0 kg
Packaging Info
Package Weight 140.0 lb
Box Dimensions (LxWxH) 78.0 x 46.0 x 11.0"
The user manual for the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sharp users keep a unique electronic library for Sharp commercial monitorss, where you can use our link to download the user manual for the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U.

The user manual lists all of the functions of the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sharp service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sharp LC-80LE661U 80"-Class Full HD Commercial LC-80LE661U. User manuals are also available on the Sharp website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
