User manual Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM

Operating instructions and pdf manual for use - Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM User manual, User manual Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM, Shinybow, 8x8, Component, Video, HDTV, Matrix, Routing


User manual for Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM

Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM
  • Manufacturer: Shinybow
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Routers & Switchers
  • Safety instructions
  • Startup and operation of the routers & switchers
  • Tips for setting up your Shinybow
  • Settings and expert assistance
  • Contact Shinybow service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM, which address similar problems with connecting and setting up Routers & Switchers Shinybow.



User manual for the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM

The user manual for the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

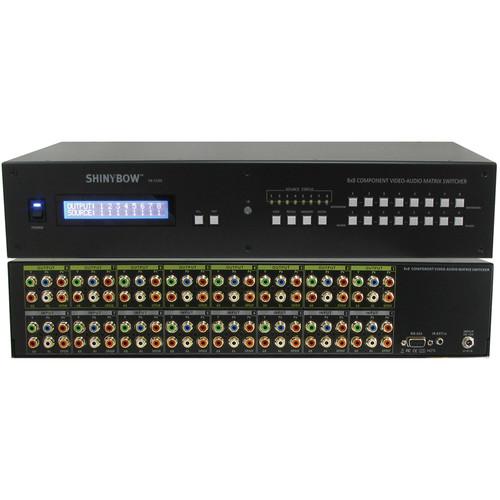

The 8x8 Component Video HDTV Matrix Routing Switcher with Analog and Digital Audio features eight individual component video inputs and eight individual component video outputs, each with analog stereo and SPDIF digital audio connectors. Because it is a matrix router, any input may be routed to any output, or the same input may be routed to all outputs, or any combination thereof. This prevents the need to constantly move around A/V input and output cables. This is useful for matrix signals from A/V source devices, such as personal computers, set top boxes, and satellite receivers, to destination devices such as monitors, HDTVs, and projectors.

Control is provided via front push-buttons with LED readout or the included IR remote controller. A RS232 interface is also provided for interfacing with third party control options. A Windows-based control software package is included to provide complete control of the switcher from a PC. Also included is an IR extender receiver, RS-232 cable, CD-ROM with RS-232 driver, 12 VDC power supply, and rack mount brackets.
If you own a Shinybow routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM:
Chassis Material Metal
Thickness: 0.04" (1 mm)
Inputs 8 x Component video (YPbPr)
8 x SPDIF digital audio, RCA connector
8 x Stereo audio (R/L), RCA connectors
Outputs 8 x Component video (YPbPr)
8 x SPDIF digital audio, RCA connector
8 x Stereo audio (R/L), RCA connectors
Supported Resolutions 480i/p
576i/p
720p
1080i/p
Video Bandwidth 325 MHz, (-3 dB) 200 mV p-p, 380 MHz, (-3 dB) 2V p-p,
R=325 MHz, G=325 MHz, B=325 MHz, Digital=110 MHz, Audio=60 MHz
Audio Bandwidth 60MHz, (-3 dB) per channel (R/L)
Audio Frequency Response 20 Hz to 20 KHz
Gain Flatness 90 MHz, 0.1 dB
Differential Gain Error 0.01%, 0.1 dB
Differential Phase Error 0.02, 0.1 dB (RL=150 W)
Fast Settling Time 15 ns to 0.1%
All Hostile Crosstalk -84 dB at 5 MHz
-54 dB at 50 MHz
Channel Crosstalk -56 dB at 100 MHz
Slew Rate 1000 V/us, G=+1.2 V Step
High OFF Isolation -100 dB at 10 MHz
Output Current 100 mA
Infrared Frequency 38 KHz
Control 1 x Function buttons on front panel (data status via LCM panel show out)
1 x IR Remote Controller
1 x RS 232 series interface
Safety Approvals CE, FCC, VCCl
Power Supply 12 VDC, 2 A
Universal switch type 50/60 Hz, 100 to 230 VAC
Power Consumption 1.6 A, maximum
Rackmountable 2 RU, 19" rack (using included rack mount brackets)
Dimensions (L x W x H) 17.3 x 7.8 x 3.5" (44.0 x 20.0 x 8.8 cm)
Weight 7.17 lb (3.25 kg)
Packaging Info
Package Weight 12.0 lb
The user manual for the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shinybow users keep a unique electronic library for Shinybow routers & switcherss, where you can use our link to download the user manual for the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM.

The user manual lists all of the functions of the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shinybow service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shinybow 8x8 Component Video HDTV Matrix Routing SB-5588LCM. User manuals are also available on the Shinybow website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
