User manual Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8

Operating instructions and pdf manual for use - Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 User manual, User manual Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8, Shure, BLX24, Vocal, Wireless, System, With, SM58,


User manual for Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 349 USD
Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8
Click to enlarge image

We recommend checking out our discussion threads on the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8, which address similar problems with connecting and setting up Wireless Systems Shure.



User manual for the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8

The user manual for the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

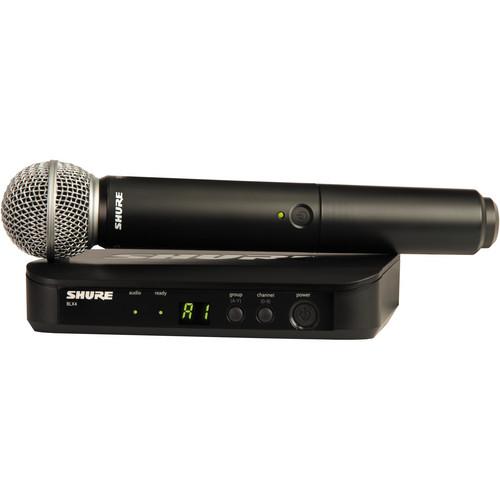

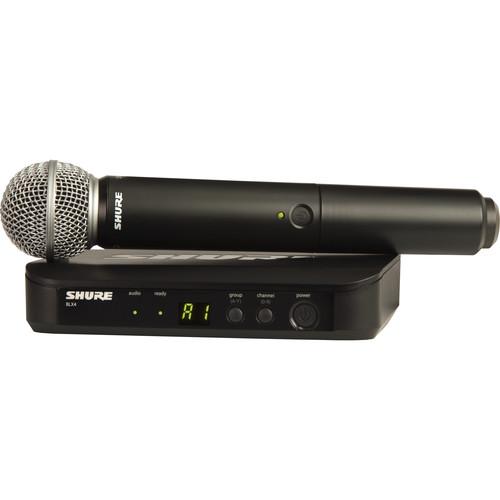

The BLX24 Vocal Wireless System with SM58 Mic from Shure includes a BLX4 wireless receiver and a BLX2 handheld transmitter with an SM58 microphone. This system is set to Shure's H8 frequency band between 518 to 542 MHz. The system has up to a 300' line-of-sight range of operation and is designed for easy setup.

The BLX4 receiver's one-touch QuickScan frequency selection finds the clearest available channel and tunes the unit to it. Its front panel LCD display indicates the group and channel it is tuned to, allowing you to set the BLX2 transmitter to match. A dual-colored LED indicator displays green for normal audio levels and red to alert you if your levels are clipping. The unit has a microprocessor-controlled internal diversity antenna to prevent interference and dropouts.

Two included AA batteries provide the BLX2 transmitter with up to 14 hours of operation. You can use up to 12 compatible BLX systems simultaneously per frequency band.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8:
Specifications
    • BLX4 Single-Channel Wireless Receiver (H8: 518 - 542 MHz)
      Output 1x XLR Output
      1x 1/4" (6.35 mm) Output
      Output Impedance XLR: 200 ohms
      1/4": 50 ohms
      Audio Output Level XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
      1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
      RF Sensitivity -105 dBm for 12 dB SINAD, Typical
      Image Rejection >50 dB, Typical
      Housing Molded ABS
      Power Requirement 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
      Dimensions (H x W x D) 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
      Weight 8.5 oz (241 g)
      Packaging Info
      Box Dimensions (LxWxH) 13.5 x 11.9 x 4.0"
    • BLX2 Handheld Transmitter with SM58 Microphone (H8: 518 - 542 MHz)
      Transmitter
      Audio Input Level 0 dB Gain: -20 dBV Maximum
      -10 dB Gain: -10 dBV Maximum
      Gain Adjustment Range 10 dB
      RF Output 10 mW, Typical (Varies by Region)
      Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
      Housing Molded ABS
      Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm)
      Weight 7.7 oz (218 g)
      Microphone
      Frequency Response 50 Hz to 15 kHz
      Polar Pattern Cardioid
      Output Level -54.5 dBV/PA (1.85 mV)
      Packaging Info
      Box Dimensions (LxWxH) 10.9 x 5.4 x 3.3"
    The user manual for the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8.

    The user manual lists all of the functions of the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure BLX24 Vocal Wireless System With SM58 Mic BLX24/SM58-H8. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Systems.
