Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 549 USD

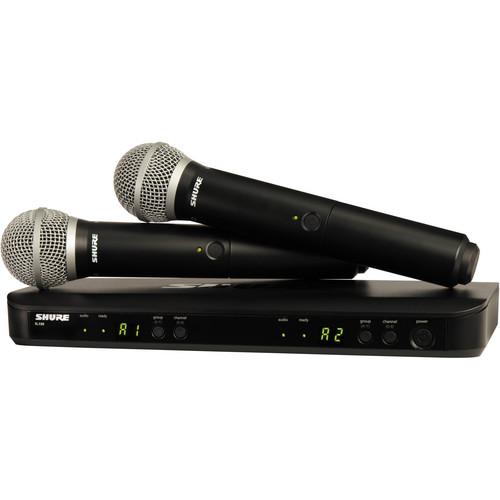

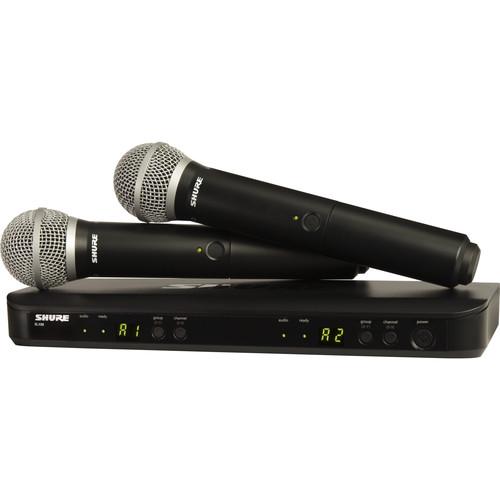

Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9 Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9 Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9
Click to enlarge image
We recommend checking out our discussion threads on the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9, which address similar problems with connecting and setting up Wireless Systems Shure.


User manual for the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9

The user manual for the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

The BLX288/PG58 Dual-Transmitter Handheld Wireless System from Shure includes a BLX88 dual-channel wireless receiver and two BLX2 handheld transmitters, both with PG58 microphone capsules. The system is set to Shure's H9 frequency band and operates between 512 to 542 MHz.

Both of the BLX2 handheld transmitters have a 300' line of sight operation range with the BLX88 receiver. They are each powered by two included AA batteries that can operate for up to 14 hours. The BLX88 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. The BLX2 handheld transmitters feature an on/off switch on the mic body and are tuned for vocal applications.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9:
Specifications
  • BLX88 Dual-Channel Wireless Receiver (H9: 512 - 542 MHz)
    Output 2x XLR Output
    2x 1/4" (6.35 mm) Output
    Output Impedance XLR: 200 ohms
    1/4": 50 ohms
    Audio Output Level XLR Connector: -20.5 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone)
    1/4": -13 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone)
    RF Sensitivity -105 dBm for 12 dB SINAD, Typical
    Image Rejection >50 dB, Typical
    Housing Molded ABS
    Power Requirement 12 to 15 VDC @ 320 mA, Supplied by External Power Supply (Tip Positive)
    Dimensions (H x W x D) 1.5 x 15 x 4.5" (40 x 388 x 116 mm)
    Weight 15.1 oz (429 g)
    Packaging Info
    Box Dimensions (LxWxH) 19.1 x 16.2 x 3.6"
  • 2 x
    BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
    Transmitter
    Audio Input Level 0 dB Gain: -20 dBV Maximum
    -10 dB Gain: -10 dBV Maximum
    Gain Adjustment Range 10 dB
    RF Output 10 mW, Typical (Varies by Region)
    Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
    Housing Molded ABS
    Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm)
    Weight 7.7 oz (218 g)
    Microphone
    Type Dynamic (Moving Coil)
    Polar Pattern Cardioid
    Frequency Response 60 Hz to 15 kHz
    Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
    Sensitivity -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz)
    Electromagnetic Hum Sensitivity 26 dB equivalent SPL in a 1 millioersted field (60 Hz)
    Temperature Range -20 to 153°F (-29 to 57°C)
    Relative Humidity 0 to 95%
    Packaging Info
    Box Dimensions (LxWxH) 11.1 x 5.3 x 3.0"
The user manual for the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure BLX288/PG58 Dual-Transmitter Handheld BLX288/PG58-H9.
