User manual Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4

Operating instructions and pdf manual for use - Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 User manual, User manual Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4, Shure, FP1, Wireless, Bodypack, Transmitter, w


User manual for Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4

Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 813 USD
Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4
Click to enlarge image

We recommend checking out our discussion threads on the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4, which address similar problems with connecting and setting up Wireless Systems Shure.



User manual for the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4

The user manual for the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

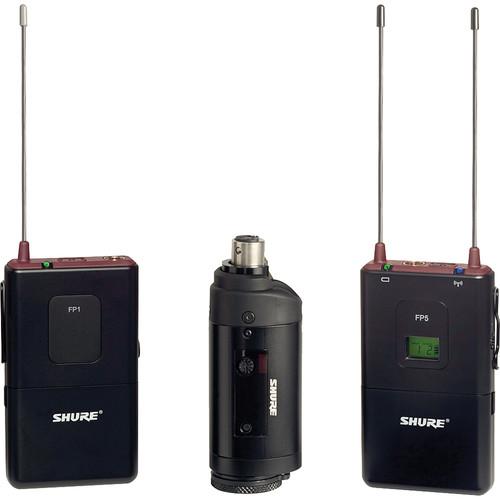

The FP1 Wireless Bodypack Transmitter with Wireless Transmitter/Receiver from Shure includes the Shure FP1 wireless bodypack transmitter, the FP3 wireless plug-in transmitter, and the FP5 wireless portable receiver.

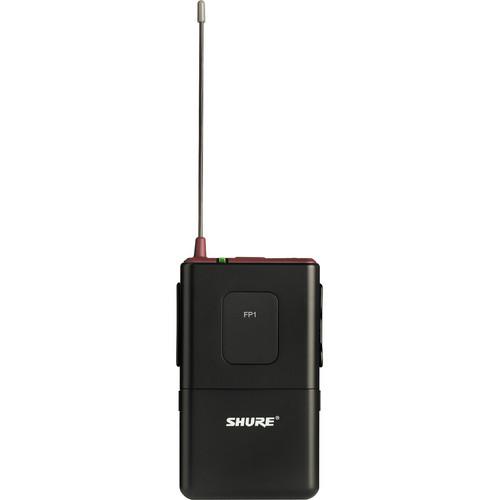

The FP1 Wireless Bodypack Transmitter is tuned to Shure's G4 frequency band and operates between 470 and 494 MHz. The FP1 features Automatic Transmitter Setup for syncing to your receiver's frequency and employs Shure's Audio Referencing Companding for clear reproduction of your audio.

The transmitter has a 300-foot line of sight range of operation with ideal conditions and is powered by 2 AA batteries for up to 12 hours. It features a TA4F connector for compatibility with a range of lavalier and headset microphones. Thanks to the FP1's Audio Input Gain control, you can adjust your volume levels at the source and before transmission.

The FP3 Wireless Plug-on Transmitter provides professional, portable wireless operation in the 24 MHz band, is easy to operate and affordable. The FP3 plug-on transmitter features a 3-pin XLR input for connecting dynamic or self-powered handheld microphones, and line level outputs from mixers, player devices, etc. Infrared sync provides quick and easy channel syncing between the transmitter and FP5 receiver. The FP3 transmitter is ruggedly built and powered on a pair of AA batteries.

The FP5 Wireless Portable Receiver provides professional, portable wireless operation in the 24 MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing. Infrared sync provides quick and easy channel syncing between the FP5 receiver and the FP3 transmitter. The FP5 receiver is ruggedly built and powered on a pair of AA batteries.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4:
Specifications
  • Shure FP1 Wireless Bodypack Transmitter (G4: 470 - 494 MHz)
    Gain Adjustment Range −10 to 20 dBV
    Input Impedance 1 MΩ
    RF Output Power 10 to 30 mW, varies by region
    Connector TA4F (pin 1 = ground, pin 2 = +5 V bias, pin 3 = audio, pin 4 = tied through active load to ground, on instrument adapter cable pin 4 floats)
    Power Requirements 2x LR6 AA batteries
    Battery Life Up to 12 hours
    Dimensions (H x W x D) 7 x 2.5 x 0.7" (108 x 64 x 19 mm)
    Weight 3 oz (81 g)
    Packaging Info
    Box Dimensions (LxWxH) 12.1 x 4.8 x 3.4"
  • Shure FP3 Wireless Plug-In Transmitter (G4 / 470 - 494MHz)
    Packaging Info
    Box Dimensions (LxWxH) 12.4 x 4.4 x 3.5"
  • Shure FP5 Wireless Portable Receiver (G4: 470 - 494MHz)
    Packaging Info
    Box Dimensions (LxWxH) 12.2 x 4.7 x 3.3"
The user manual for the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4.

The user manual lists all of the functions of the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure FP1 Wireless Bodypack Transmitter with Wireless FP135=-G4. User manuals are also available on the Shure website under Pro Audio - Location Sound - Wireless Systems.
