User manual Shure KSM137/SL Cardioid Microphone (Single Microphone)

Operating instructions and pdf manual for use - Shure KSM137/SL Cardioid Microphone (Single Microphone) User manual, User manual Shure KSM137/SL Cardioid Microphone (Single Microphone), Shure, KSM137/SL, Cardioid, Microphone, Single, Microphone,


User manual for Shure KSM137/SL Cardioid Microphone (Single Microphone)

Shure KSM137/SL Cardioid Microphone (Single Microphone)
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Small Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the small diaphragm condenser
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD

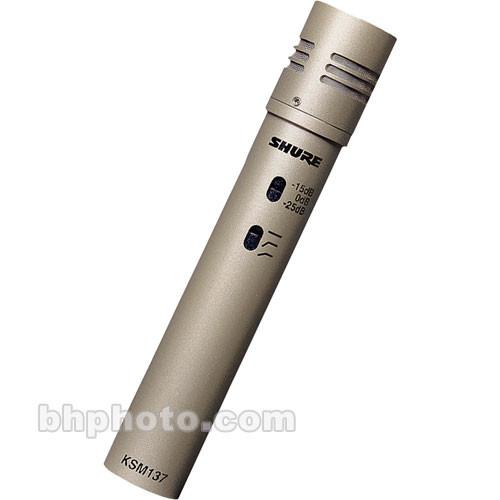

Shure KSM137/SL Cardioid Microphone (Single Microphone) Shure KSM137/SL Cardioid Microphone (Single Microphone)
Click to enlarge image

We recommend checking out our discussion threads on the Shure KSM137/SL Cardioid Microphone (Single Microphone), which address similar problems with connecting and setting up Small Diaphragm Condenser Shure.



User manual for the Shure KSM137/SL Cardioid Microphone (Single Microphone)

The user manual for the Shure KSM137/SL Cardioid Microphone (Single Microphone) provides necessary instructions for the proper use of the product Pro Audio - Recording - Small Diaphragm Condenser.

The KSM137/SL from Shure is a cardioid condenser studio microphone designed for instrument recording and sound reinforcement. The KSM137/SL offers a wide 20 Hz to 20 kHz frequency response making it a flexible microphone for a variety of applications. The KSM137/SL features a cardioid element and permanently biased transducer design resulting in clean, accurate signal reproduction and frequency response. The transformer-less, class-A output circuitry provides a noise free output signal path while maintaining high gain levels. The tight cardioid pattern is effective in attenuating off-axis signal due to room ambiance, instruments, monitor noise etc.
If you own a Shure small diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure KSM137/SL Cardioid Microphone (Single Microphone) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Shure KSM137/SL Cardioid Microphone (Single Microphone)Download user manual for Shure KSM137/SL Cardioid Microphone (Single Microphone)
(PDF file, 0.57 MB)
Additional parameters of the Shure KSM137/SL Cardioid Microphone (Single Microphone):

Go To

Transducer Condenser
Polar Pattern Cardioid
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 80 dB
Equivalent Noise Level 14 dB A-Weighted
Maximum SPL 145 dB SPL
160 dB SPL with 15 dB Pad Engaged
170 dB SPL with 25 dB Pad Engaged
Impedance 150 ohms
Sensitivity -37 dB @ 1 kHz, re: 1 V/Pa
Power Requirements 48 V+/- 4 V
Low-Cut Filter Yes, 6 dB/Octave @ 115 Hz
Yes, 18 dB/Octave @ 80 Hz
Pad Yes, 0 dB
Yes, 15 dB
Yes, 25 dB
Output Connectors 3-Pin XLR
Operating Current Consumption 4.65mA
Dynamic Range 131 dB
General
Length 4.8" (121.92 mm)
Diameter 0.8" (20.32 mm)
Weight 3.53 oz (100 g)
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 12.0 x 9.1 x 3.0"
The user manual for the Shure KSM137/SL Cardioid Microphone (Single Microphone) can be downloaded in .pdf format if it did not come with your new small diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure small diaphragm condensers, where you can use our link to download the user manual for the Shure KSM137/SL Cardioid Microphone (Single Microphone).

The user manual lists all of the functions of the Shure KSM137/SL Cardioid Microphone (Single Microphone), all the basic and advanced features and tells you how to use the small diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure KSM137/SL Cardioid Microphone (Single Microphone). User manuals are also available on the Shure website under Pro Audio - Recording - Small Diaphragm Condenser.
