User manual for the Shure QLXD4 Digital Wireless Receiver QLXD4-L50
The user manual for the Shure QLXD4 Digital Wireless Receiver QLXD4-L50 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.

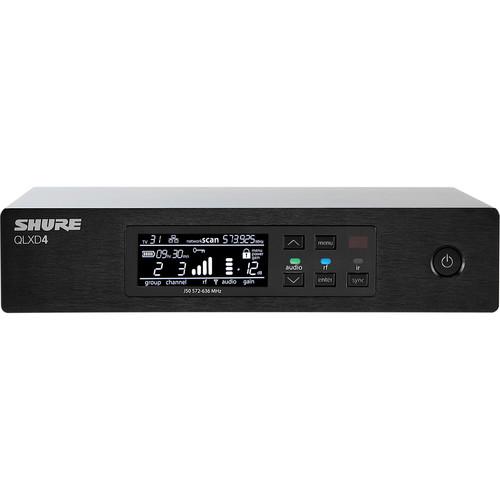

When capturing audio the QLXD4 Digital Wireless Receiver by Shure offers 24-bit digital audio quality and good RF spectrum reception. When paired with a wireless transmitter and microphone, it can be used for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, live performance spaces, and more. It features more than 60 preset channels per frequency band, network control, and AES-256-bit encryption. The QLXD4 wireless receiver is built with switching diversity and automatic channel scan, and has IR one-touch sync capabilities to make finding an open frequency quick. This receiver features a 20 Hz to 20 kHz frequency range, and a high-contrast LCD display. This allows for clear navigation though the menus and controls. With clearly defined performance, the QLXD4 delivers good clean audio and provides professional features for demanding live sound events and installations.
If you own a Shure wireless receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Shure QLXD4 Digital Wireless Receiver QLXD4-L50 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure QLXD4 Digital Wireless Receiver QLXD4-L50:
328' (100 m) Note: Actual range depends on RF signal absorption, reflection and interference
RF
Tuning Step Size: 25 kHz, varies by region
Image Rejection
Greater than 70 dB, typical
RF Sensitivity
−97 dBm at 10-5 BER
Latency
Less than 2.9 ms
Audio Frequency Response
QLXD1: 20 Hz - 20 kHz (±1 dB) QLXD2: Dependent on microphone type
Audio Dynamic Range
System Gain @ +10: Greater than 120 dB, A-weighted, typical
Total Harmonic Distortion (THD)
−12 dBFS Input, System Gain @ +10: Less than 0.1%
Polarity
System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
Operating Temperature Range
0 to 122°F (-18 to 50°C) Note: Battery characteristics may limit this range
Storage Temperature Range
-20 to 165°F (-29 to 74°C) Note: Battery characteristics may limit this range.
Gain Adjustment Range: -18 to +42 dB in 1 dB steps Configuration: 1/4" (6.35 mm), Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio −) Impedance 1/4" (6.35 mm), 100 ohms (50 ohms Unbalanced) XLR: 100 ohms Full Scale Output: 1/4" (6.35 mm), +12 dBV XLR: LINE setting= +18 dBV, MIC setting= −12 dBV Mic/Line Switch: 30 dB pad Phantom Power Protection: 1/4" (6.35 mm), Yes XLR: Yes
Networking
Network Interface: Single Port Ethernet 10/100 Mbps Network Addressing Capability: DHCP or Manual IP address Maximum Ethernet Cable Length: 328' (100 m)
Power Requirement
12 VDC @ 0.4 A, supplied by external power supply (tip positive)
Dimensions (H x W x D)
1.63 x 7.75 x 5.94" (41 x 197 x 151 mm)
Weight
1.71 lb (777 g)
The user manual for the Shure QLXD4 Digital Wireless Receiver QLXD4-L50 can be downloaded in .pdf
format if it did not come with your new wireless receivers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Shure users keep a unique electronic library
for Shure wireless receiverss,
where you can use our link to download the user manual for the Shure QLXD4 Digital Wireless Receiver QLXD4-L50.
The user manual lists all of the functions of the Shure QLXD4 Digital Wireless Receiver QLXD4-L50,
all the basic and advanced features and tells you how to use the wireless receivers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Shure service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Shure QLXD4 Digital Wireless Receiver QLXD4-L50. User manuals are also
available on the Shure website under Pro Audio - Live Sound - Wireless Receivers.
