User manual for the Shure SCM268 4-Channel Microphone Mixer SCM268
The user manual for the Shure SCM268 4-Channel Microphone Mixer SCM268 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Mixers.

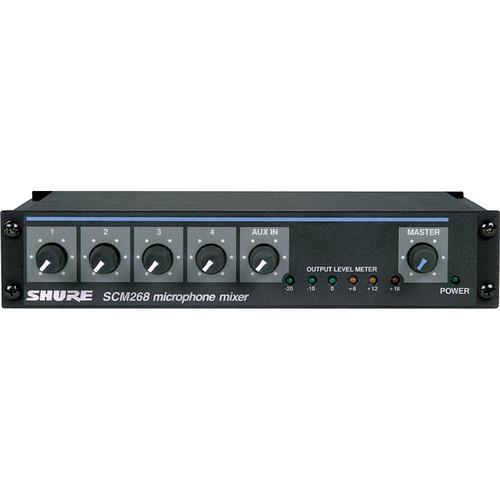

The Shure SCM268 4-Channel Microphone Mixer offers simplicity and routing flexibility in a convenient, compact, and rugged enclosure. The SCM268 features 4 high quality transformer-balanced XLR inputs and mic/line level switchable XLR output. Transformer balanced I/O provides maximum audio gain, minimizing hum and line noise. Two stereo paired (4 mono) RCA inputs except line level signal from consumer audio devices such as CD and cassette players, DVD players, VCR's etc.
If you own a Shure install sound mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Shure SCM268 4-Channel Microphone Mixer SCM268 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
No - AUX output serves as secondary output and cab be used as a monitor source
ALT I/O
2 - AUX RCA phono as described under outputs
Link Input/Output
No
Impedance
Input MIC (XLR): Designed for use with 19-600 ohm load, 1.2k ohms actual, -5dBV clipping level AUX: Designed for use with - / < 2k ohm load, 21k ohms actual, >28 dBV clipping level Outputs MIC: Designed for use with low-Z inputs, 0.2 ohms actual, -21 dBV clipping level LINE: Designed for use with > 600 ohms, 72 ohms actual, +18 dBV clipping level AUX: Designed for use with > 2k ohms, 870 ohms actual, +7dBV clipping level
Gain
Low-Impedance Mic Input (150 ohms): MIC 32dB, LINE 72dB, AUX 60dB - Outputs Line Input: MIC -9dB, LINE 31dB, AUX 19dB - Outputs Stereo Input: MIC -5dB, LINE 35dB, AUX 23dB - Outputs
Hum & Noise
Equivalent Input Hum and Noise: -124 dBV (150 ohm source; 22Hz to 22kHz) Output Hum and Noise: (22 Hz to 22kHz; channel controls full counterclockwise) Master full counterclockwise -92dBV Master full clockwise -70dBV
Frequency Response
(Ref 1kHz, channel and master controls centered) MIC/LINE Inputs: 150Hz to 20kHz + / - 2dB AUX Inputs: 20Hz to 20kHz + / -2dB
Distortion
<0.25% at +4 dBu output level, (through 22Hz -22kHz filter; MIC inout 1 and Master at center, all other controls full counterclockwise)
Metering
6-segment LED meters
Controls
Sealed Rotary Potentiometers: MIC 1-2, STEREO 1-3 and MASTER gain controls. BASS and TREBLE control. DIP Switches
Control Voltage Out
No
Phantom Power
12 Vdc open-circuit through 340 ohm series resistors
Operating Temperature
Operating: -7 to 49 degrees C (20 to 120 degrees F) Storage: -29 to 74 degrees C (-20 to 165 degrees F)
The user manual for the Shure SCM268 4-Channel Microphone Mixer SCM268 can be downloaded in .pdf
format if it did not come with your new install sound mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Shure users keep a unique electronic library
for Shure install sound mixerss,
where you can use our link to download the user manual for the Shure SCM268 4-Channel Microphone Mixer SCM268.
The user manual lists all of the functions of the Shure SCM268 4-Channel Microphone Mixer SCM268,
all the basic and advanced features and tells you how to use the install sound mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Shure service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Shure SCM268 4-Channel Microphone Mixer SCM268. User manuals are also
available on the Shure website under Pro Audio - Installation Sound - Install Sound Mixers.
Question and answer discussion forum concerning user instructions and resolving problems with the Shure SCM268 4-Channel Microphone Mixer SCM268
Hi, I have a shure scm268 mixer, however when I power the unit up, the first three leds light up and stay lit, with all pots and master controls counter clockwise (off) and no mics connected.
What can be my issue here
