The Shure ULX-D Dual Receiver with Dual Handheld Beta 87C Microphones Kit from B&H consists of one ULX-D4D dual channel receiver and two ULXD2 handheld transmitters with Beta 87C capsules. It can be used in various environments for capturing audio in applications such as live stage, theater, houses of worship, boardrooms, conferences, public speaking events, and more. It features 24-bit audio clarity, 20 Hz to 20 kHz frequency range, AES 256-bit encryption and runs on or two AA or rechargeable batteries. It is tuned to the H50 frequency band between 534 to 598 MHz. The ULX-D series brings a professional level of performance to sound reinforcement and will get the job done.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure ULX-D Dual Receiver with Dual Handheld ULXD24D/B87C-H50 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure ULX-D Dual Receiver with Dual Handheld ULXD24D/B87C-H50:
Specifications

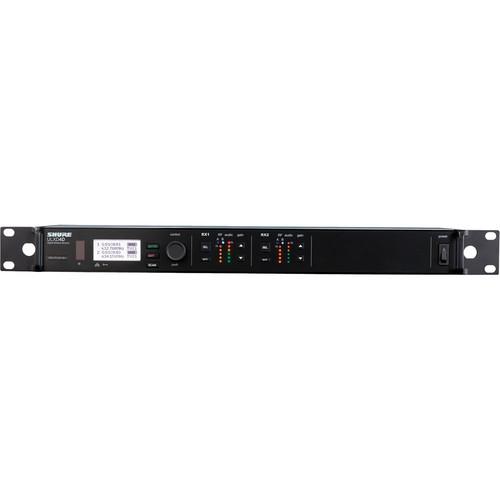

  • Shure ULXD4D Dual-Channel Wireless Receiver (H50)
    RF Input Specs
    Spurious Rejection >80 dB, typical
    Connector BNC
    Impedance 50 Ω
    Bias Voltage(s) 12-13 V DV, 150 mA maximum, per antenna
    Audio Output
    Gain Range -18 to 42 dB in 1 dB step (plus mute setting)
    Configuration XLR: Balanced (1= ground, 2= audio +, 3= audio -)
    Impedance 100 Ω
    Full Scale Output Line: 18 dBV
    Mic: -12 dBV
    Switch Mic/Line: 30 dB pad
    Phantom Power Protection Yes
    Networking
    Network Interface Dual port Ethernet 10/100 Mbps, 1 Gbps
    Network Addressing Capability DHCP or Manual IP
    Ethernet Maximum Cable Length: 328' (100 m)
    Cascade Output Connector Type: BNC
    Configuration: Unbalanced, passive
    Impedance: 50 Ω
    General
    Power Requirements 100 to 240 V AC, 50-60 Hz, 0.26 A maximum
    Dimensions (H x W x D) 1.73 x 18.97 x 10.79" (44 x 482 x 274 mm)
    Weight 7.4 lb (3.36 kg)
    Packaging Info
    Box Dimensions (LxWxH) 27.5 x 17.5 x 3.6"
  • 2 x Shure QLXD2/Beta87C Handheld Wireless Transmitter (H50: 534 to 598)
    RF Carrier Frequency Range H50: 534 to 598
    Working Range 328' (100 m)
    RF Tuning Step Size: 25 kHz, varies by region
    Image Rejection Better than 70 dB, typical
    RF Sensitivity −97 dBm at 10−5 BER
    Latency Less than 2.9 ms
    Frequency Response 20 Hz to 20 kHz
    Audio Dynamic Range System Gain @ +10: Better than 120 dB, A-weighted, typical
    Total Harmonic Distortion (THD) −12 dBFS input, System Gain @ +10: Less than 0.1%
    Polarity System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
    Operating Temperature Range 0° to 122°F (-18° to 50°C)
    Note: Battery characteristics may limit this range.
    Storage Temperature Range -20° to 165°F (-29° to 74°C)
    Note: Battery characteristics may limit this range.
    Mic Offset Range 0 to 21 dB (in 3 dB steps)
    Battery Type Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V
    Battery Runtime At 10 mW
    Shure SB900: up to 10 hours
    Alkaline: up to 9 hours
    Audio Input Configuration: unbalanced
    Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
    Note: Dependent on microphone type
    Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
    Note: Dependent on microphone type
    Capsule Beta 87C
    RF Output Antenna Type: Integrated single band helical
    Occupied Bandwidth: Less than 200 kHz
    Modulation Type: Shure proprietary digital
    Power: 1 mW or 10 mW (varies by region)
    Housing Machined aluminum
    Dimensions (L x Diam) 10.1 x 1.5" (256 x 37 mm)
    Weight 12.2 oz (347 g) without batteries
