User manual Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T

Operating instructions and pdf manual for use - Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T User manual, User manual Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T, Shure, WBH54, Headworn, Mic, with, TA4F, Connector, Tan, WBH54


User manual for Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T

Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Microphones for Wireless
  • Safety instructions
  • Startup and operation of the microphones for wireless
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD

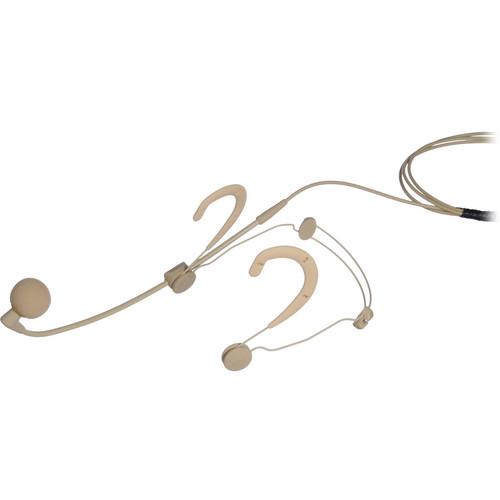

Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T
Click to enlarge image

We recommend checking out our discussion threads on the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T, which address similar problems with connecting and setting up Microphones for Wireless Shure.



User manual for the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T

The user manual for the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Microphones for Wireless.

The Shure WBH54 is a fully adjustable supercardioid condenser microphone, designed for applications where inconspicuous appearance and incredible sound quality are required. Its lightweight, adjustable, modular headband, flexible wireframe and soft earpieces provide a comfortable fit while still allowing the WMH54 to be positioned as close to the left or right corner of the mouth as possible, assuring maximum voice pickup. The WMH54 microphone itself features an extended frequency response and high SPL handling ability.
The WMH54 is uniquely designed to provide the sound quality and performance consistency required for environments such as professional theater, event production, trade shows or seminars - the best sound with minimal visibility.
If you own a Shure microphones for wireless and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T:
Transducer Electret Bias Condenser
Polar Pattern Supercardioid
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 103 dB
Signal-to-Noise Ratio 55 dB at 94 dB SPL
Maximum Input Sound Level 143 dB at 1% THD/1 K Ohm Load
Power Requirements +5 Vdc on Pin 2, Return on Pin 1 (Ground) Note: Power is Provided by Wireless Transmitter
Output Impedance 150 Ohms
Output Connectors 4-Pin, Tini Q-G Connector
Dimensions 5' (1.5 m), small-diameter, shielded, with mini 4-pin connector (TA4F)
Weight 1.25 oz (35.35 g) microphone only
Packaging Info
Package Weight 1.85 lb
Box Dimensions (LxWxH) 10.9 x 8.4 x 4.7"
The user manual for the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T can be downloaded in .pdf format if it did not come with your new microphones for wireless, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure microphones for wirelesss, where you can use our link to download the user manual for the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T.

The user manual lists all of the functions of the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T, all the basic and advanced features and tells you how to use the microphones for wireless. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure WBH54 Headworn Mic with TA4F Connector Tan WBH54T. User manuals are also available on the Shure website under Pro Audio - Location Sound - Microphones for Wireless.
