User manual Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830

Operating instructions and pdf manual for use - Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830 User manual, User manual Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830, Sky-Watcher, 14, f/4.9, Collapsible, GoTo, Dobsonian, S11830,


User manual for Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830

Sky-Watcher 14
  • Manufacturer: Sky-Watcher
  • Basic description and contents of package
  • Product classification: Optics - Telescopes - Reflectors
  • Safety instructions
  • Startup and operation of the reflectors
  • Tips for setting up your Sky-Watcher
  • Settings and expert assistance
  • Contact Sky-Watcher service
  • Troubleshooting
  • Warranty information
Sky-Watcher 14 Sky-Watcher 14 Sky-Watcher 14 Sky-Watcher 14 Sky-Watcher 14
Click to enlarge image

We recommend checking out our discussion threads on the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830, which address similar problems with connecting and setting up Reflectors Sky-Watcher.



User manual for the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830

The user manual for the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830 provides necessary instructions for the proper use of the product Optics - Telescopes - Reflectors.

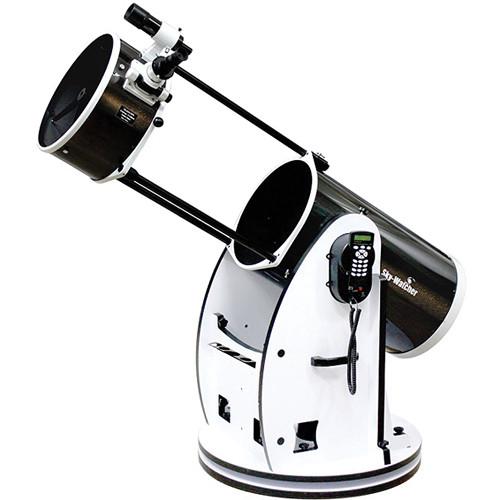

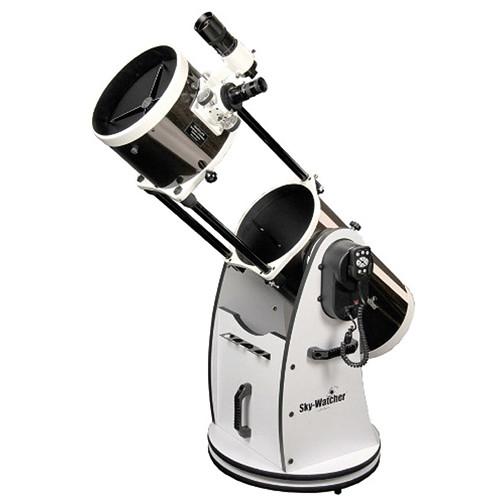

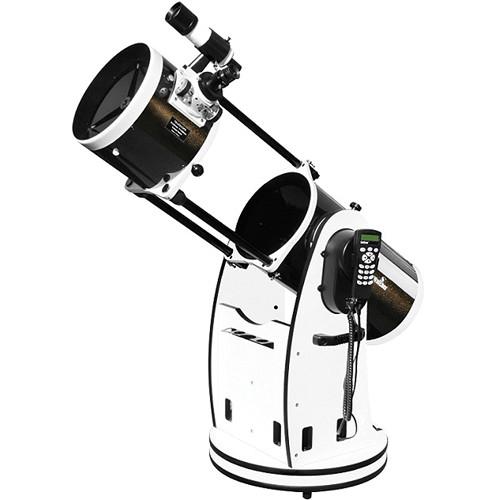

Sky-Watcher improves on the often unwieldy standard design of Dobsonians with their 14" f/4.9 Collapsible GoTo Dobsonian Telescope. It features a patented truss tube system that enables the front corrector plate/eyepiece assembly to be moved back and locked against the main rear tube to greatly reduce the size of the OTA for storage and transportation. This open OTA also has the benefit of reducing overall weight versus standard Dobs. To add another level of usability to the scope is a motorized ground-based rocker alt-az mount. Equipped with dual servo motors, they are controlled using the SynScan computer hand controller. This self-contained system features over 42,000 celestial objects with alignment assistance, guided tours and full go-to capabilities. Its dual encoders, coupled with the patented Tension Control Handle, enable users to manually move the scope without having to realign it.
If you own a Sky-Watcher reflectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830:
Specifications
    Optical Design Reflector
    Aperture 14" / 356 mm
    Focal Length 1650 mm
    Focal Ratio f/4.9
    Eyepiece Barrel Diameter 2" directly to focuser
    1.25" with included adapter
    Diagonal N/A
    Finderscope 8x50 right angle erect-image
    Tripod None
    Mount Type Motorized alt-az
    Power Source 10 - 15 VDC 1 A
    2.1 mm plug
    Optical Tube Dimensions Not specified by manufacturer
    Weight Tube: 53.0 lb / 24.0 kg
    Base: 94.0 lb / 42.6 kg
    Assembled: 147.0 lb / 66.7 kg
    Packaging Info
    Package Weight 207.0 lb
    Box Dimensions (LxWxH) 58.0 x 43.0 x 27.0"
    The user manual for the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830 can be downloaded in .pdf format if it did not come with your new reflectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sky-Watcher users keep a unique electronic library for Sky-Watcher reflectorss, where you can use our link to download the user manual for the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830.

    The user manual lists all of the functions of the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830, all the basic and advanced features and tells you how to use the reflectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sky-Watcher service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian S11830. User manuals are also available on the Sky-Watcher website under Optics - Telescopes - Reflectors.
