User manual for the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS
The user manual for the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.

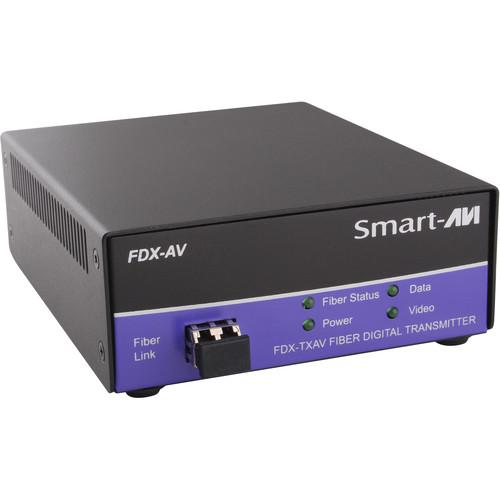

The FDX-TXAVS from Smart-AVI is a digital signage & multimedia over multimode fiber transmitter designed to work with the FDX-RXAVS receiver (sold separately) to extend audio, DVI-D, and RS-232 signals up to 1,500'. A single multimode fiber optic cable is used for interconnecting the two extender units. This transmitter supports resolutions of 1920 x 1200 at 60 Hz and 1280 x 1024 at 75 Hz. Typical applications include use in corporate & educational presentations, information terminals & kiosks, airport installations, sports arenas, public facilities, restaurants & lounges, resorts & casinos, houses of worship, theme parks, civic centers, shopping malls, concert halls & other large-scale multimedia venues, mass-transit vehicles, and convention centers.
|
If you own a Smart-AVI dvi/vga kvm extenders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS:
| Resolution | 1920 x 1200 at 60 Hz
1280 x 1024 at 75 Hz | | Transmission Range | 738.2' (225 m) over multimode 62.5u
1,476.4' (450 m) over multimode 50u | | Serial Control | Data Rate: up to 115 kb/s | | Connectors | 1 x 9-pin D-sub female, RS-232 serial control
1 x Duplex LC connector, interface
1 x 3.5 mm stereo phone jack, audio input
1 x DVI-D female, video input | | DDC | Internal table can be re-programmed | | Bandwidth | 15 MHz, 0 dB | | Impedance | 10 kOhms | | Power | 5 VDC, 3 A | | Dimensions | 4.5 x 5.5 x 1.7" (11.4 x 14.0 x 4.3 cm) | | Weight | 0.7 lb (0.3 kg) | |
The user manual for the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS can be downloaded in .pdf
format if it did not come with your new dvi/vga kvm extenders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Smart-AVI users keep a unique electronic library
for Smart-AVI dvi/vga kvm extenderss,
where you can use our link to download the user manual for the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS.
The user manual lists all of the functions of the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS,
all the basic and advanced features and tells you how to use the dvi/vga kvm extenders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Smart-AVI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Smart-AVI FDX-TXAVS Digital Signage and Multimedia FDX-TXAVS. User manuals are also
available on the Smart-AVI website under Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.
