User manual for the Solid State Logic E-Series Dynamics Module for API 500 729719X1

The user manual for the Solid State Logic E-Series Dynamics Module for API 500 729719X1 provides necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

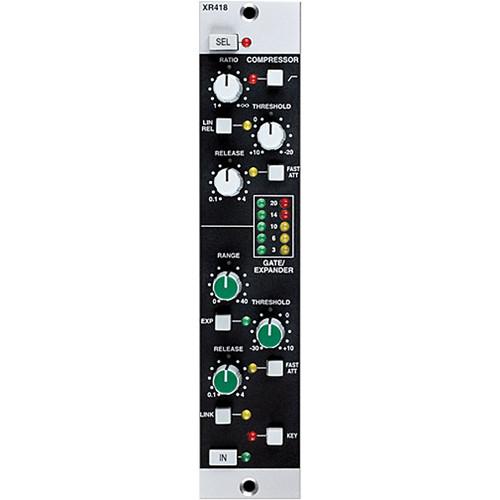

The Solid State Logic E-Series Dynamics Module for API 500 Series Rack is a single-unit API 500 Series lunchbox-style compressor/limiter and expander/gate module. The device utilizes a similar circuit design and components as the original SSL E-Series channel strip, including a true RMS converter in the sidechain and a gain element that replicates the original Class A VCA chip.

Half of the module consists of a compressor/limiter with a ratio control that allows you to select from no compression to full limiting. You can change the curve from over-easy to hard-knee style compression with the push of a button. A threshold knob allows you to set the threshold at which point compression occurs between +4 and -26 dB. A release knob allows you to set the release time between 0.1 and 4 mS. A linear release button allows you to switch between a linear and a logarithmic release curve, and a fast attack button allows you to change the attack time from 3 ms for a 20 dB gain reduction to 30 ms for a 20 dB gain reduction. For metering, the unit has a 5-segment LED meter that shows the Compressor/Limiter activity in red and yellow and the Expander/Gate activity in green.

The Expander/Gate component of the module features an EXP button for switching between a 20:1 gate and a 2:1 expander. You can set the range of gating or expansion between totally inactive to up to 40 dB. A threshold knob sets the level at which the gate or expander engages between +4 dBu and -26 dBu. The threshold circuitry is designed with variable hysteresis which increases in relation to the threshold being lowered. This allows the sound of a musical instrument to decay below the threshold and before being gated or expanded by the module. The Expander/Gate section of the unit generally has a linear attack time of 1.5 ms per 40 dB, but this can be changed to a faster attack time of 100μs per 40 dB with the push of the FAST ATT button. A release knob allows you to adjust the time between 0.1 and 4 seconds at which the Expander/Gate will reduce the signal level after it is under the threshold. There is also a dynamics "In" button that allows you to put the entire module in or take it out of the circuit in your API 500 lunchbox-style rack.
If you own a Solid State Logic dynamics processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Solid State Logic E-Series Dynamics Module for API 500 729719X1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Solid State Logic E-Series Dynamics Module for API 500 729719X1:
Format 500 Series
Type Discrete
I/O 500 Series with:
1 x balanced XLR input
1 x balanced XLR output
Power connection from lunchbox rack enclosure
Compressor
Ratio 1 to ∞
Threshold +4 to -26 dB
Release Time 0.1 to 4 ms
Gate
Range 0 to 40 dB
Threshold -30 to 10 dB
Release Time 0.1 to 4 s
Dimensions (HxW) 5.25 x 1.5" (13.34 x 3.8 cm)
Weight 15.3 oz (434 g)
Packaging Info
Package Weight 0.75 lb
Box Dimensions (LxWxH) 10.866 x 7.402 x 2.677"
The user manual for the Solid State Logic E-Series Dynamics Module for API 500 729719X1 can be downloaded in .pdf format if it did not come with your new dynamics processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Solid State Logic users keep a unique electronic library for Solid State Logic dynamics processorss, where you can use our link to download the user manual for the Solid State Logic E-Series Dynamics Module for API 500 729719X1.

The user manual lists all of the functions of the Solid State Logic E-Series Dynamics Module for API 500 729719X1, all the basic and advanced features and tells you how to use the dynamics processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Solid State Logic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Solid State Logic E-Series Dynamics Module for API 500 729719X1. User manuals are also available on the Solid State Logic website under Pro Audio - Recording - Dynamics Processors.
