User manual for the SOLOSHOT SOLOSHOT3 and Optic65 Camera Bundle SS3O65B

The user manual for the SOLOSHOT SOLOSHOT3 and Optic65 Camera Bundle SS3O65B provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

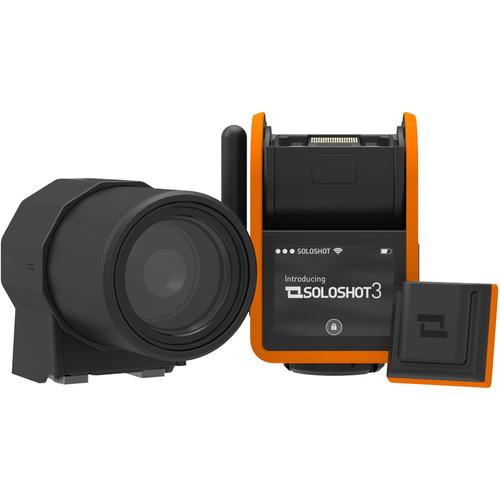

The SOLOSHOT3 and Optic65 Camera Bundle from SOLOSHOT is a robotic camera and tracking system that allows you to capture yourself at resolutions up to 4K UHD as you move through the scene, with no cameraman required. Simply wear the waterproof and shockproof Tag transmitter using an included armband and clip, and the SOLOSHOT3 Base automatically pans, tilts, and sends zoom and focus commands to the included Optic65 camera to keep you in the shot and in focus at distances up to 2,000' away.

The SOLOSHOT3 Base has a load capacity of 1.5 lb and accepts either an optional Camera Adapter plate to support lightweight cameras, or the custom-designed Optic25 and Optic65 cameras that clip directly to the top of the Base. This bundle includes the Optic65 camera, which features a 12.4 megapixel 1/2.3" backside-illuminated CMOS sensor that supports 4K UHD video at 30 fps, 1080p up to 60 fps, and 720p up to 240 fps for slow-motion playback. It is equipped with a 65x telescopic optical zoom lens that provides a 35mm-equivalent focal range of 24 to 1560mm, making it perfectly suited to tracking a SOLOSHOT3 Tag-wearing subject, even over long distances. In addition to video, the camera can also take 12MP still photos in bursts up to 30 fps, as well as set intervals for creating time lapse videos.

Designed for quick-and-easy setup, the entire SOLOSHOT3 system can be fired up in under a minute. Just attach the Base to your tripod head via the 3/8"-16 threaded hole and clip in the Optic65 camera. Unlike previous generations of SOLOSHOT systems, no calibration is required, and it can even be moved at anytime and it will continue to automatically track the subject. The system can be controlled using a built-in touchscreen display or remotely over Wi-Fi on your smartphone or tablet.

The SOLOSHOT3 Base is powered using a built-in 6,600mAh lithium-ion battery that provides around 3.5 hours of continuous use. For added convenience, the Optic65 camera draws power from the same battery. The Tag uses a built-in 550mAh battery that lasts around 3.5 hours and can be re-charged by attaching to an accessory port found on the front of the Base.

Note: The SOLOSHOT3 is for outdoor use only. For Indoor Use, the separately-available Indoor Accessory is required.
If you own a sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SOLOSHOT SOLOSHOT3 and Optic65 Camera Bundle SS3O65B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SOLOSHOT SOLOSHOT3 and Optic65 Camera Bundle SS3O65B:
Specifications
Base
Load Capacity 1.5 lb (0.68 kg)
Pan Range 360° (continuous)
Pan Speed 120°/sec (max)
Tilt Range 140° (+50 to -90°)
Tilt Speed 60°/sec (max)
Expansion Ports Front Accessory Port
SS Camera Adapter Interface
Connectivity Mini-USB
Wi-Fi 802.11 b/g/n
Battery 6,600 mAh lithium-ion
Battery Life Approx. 3.5 hours
Tripod Mounting Thread 3/8"-16
Dimensions Not specified by manufacturer
Weight 1.6 lb (0.7 kg)
Transmitter
Transmission Range 2,000' (609.6 m)
Frequency Band 2.4 GHz
Waterproof Depth 100' (30.5 m)
Shock Resistance 100 G
Screen Type OLED
Wi-Fi 802.11 b/g/n
Wi-Fi Range 30' (9.1 m)
Battery 550 mAh LiPo
Battery Runtime 3.5 hours (outdoors)
4.5 hours (indoors)
Charging Via Front Accessory Port on SOLOSHOT3 Base
Dimensions 1.7 x 1.7 x 0.6" (42 x 42 x 15 mm)
Weight 1.4 oz (40 g)
Camera
Sensor 12.4 Megapixel 1/2.33" CMOS (backside illuminated)
Focal Length 4.3 to 279.5 mm
35mm Equivalent Focal Length 24 to 1560 mm
Lens Construction 18 elements / 14 groups
Focusing Distance 11.8" (30.0 cm) to infinity
Angle of View 72.6° (wide, horizontal FOV)
1.3° (telephoto, horizontal FOV)
Zoom Optical: 65x
Image Stabilization Optical
Filter Size 52 mm
Recording Media microSD/HC/XC 64 GB
Video Format MP4
3840 x 2160p / 30 fps
2704 x 1520p / 60 fps
2704 x 1520p / 30 fps
1920 x 1080p / 60 fps
1920 x 1080p / 30 fps
1280 x 720p / 240 fps
1280 x 720p / 120 fps
1280 x 720p / 60 fps
1280 x 720p / 30 fps
Still Image Resolution JPEG: 12 Megapixel, 4000 x 3000 (4:3)
Audio Format AAC, 48 kHz, 128 kbps
Exposure Modes Auto, Manual

Manual mode lasts up to 10 minutes max.

Burst Shooting 3 fps (up to 10 seconds)
5 fps (up to 6 seconds)
10 fps (up to 3 seconds)
30 photos (up to 1 second)
Built-in Mic Yes
Microphone Input 2.5 mm jack
Dimensions 4.3 x 2.7 x 3.2" (109.0 x 68.0 x 81.0 mm)
Weight 13.16 oz (373 g)
