User manual SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868

Operating instructions and pdf manual for use - SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 User manual, User manual SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868, SonicWALL, SonicPoint, ACe, Wireless, Access, Point, 01-


User manual for SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868

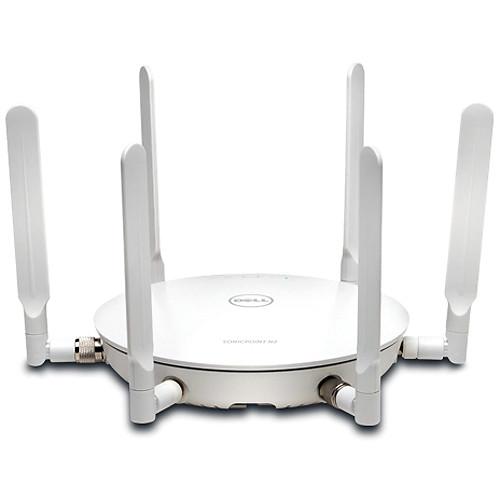

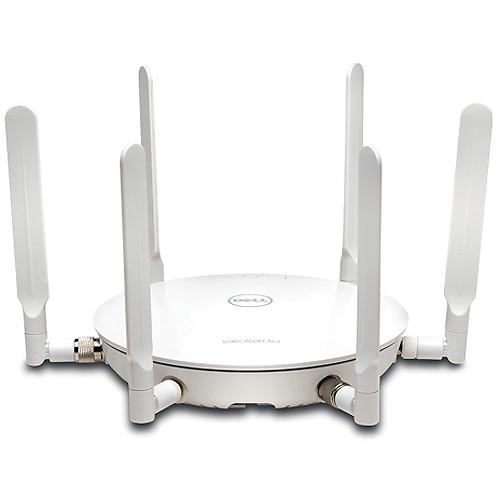

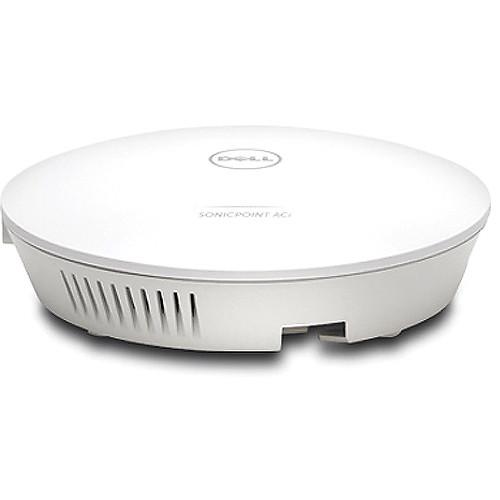

SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868
  • Manufacturer: SonicWALL
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your SonicWALL
  • Settings and expert assistance
  • Contact SonicWALL service
  • Troubleshooting
  • Warranty information
  • Price: 470 USD
SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868
Click to enlarge image

We recommend checking out our discussion threads on the SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868, which address similar problems with connecting and setting up Wireless Access Points SonicWALL.



User manual for the SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868

The user manual for the SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

With the SonicPoint ACe Wireless Access Point from Dell you can greatly expand the reach of your wireless network while keeping the number of access points needed to a minimum. Dual band connectivity allows you to connect to either the 2.4 GHz or 5 GHz frequencies while operating using the 802.11ac networking standard. This SonicPoint Access Point also supports FairNet Wireless Bandwidth Allocation effectively guaranteeing a minimum amount of bandwidth to each user to ensure that all users have access to crucial Internet based applications, email, and more.

You can rest assured your network will remain secure after installing the SonicPoint Access point as it comes equipped with a variety of security features. Deep packet inspection technology scans all inbound and outbound traffic to help eliminate threats, intrusions, and other attacks that may harm your network. You can also take complete control of all aspects of your network, both wired and wireless, using Granular Security Policy Enforcement which gives you complete control over firewall rules. If you would like to restrict access to specific areas of your network to certain users you can implement wireless guest services protocols to ensure those users have internet-only access.

This SonicPoint Access point from Dell provides the complete solution to your wireless networking needs. You can easily install this device within a drop ceiling or on the wall while the included PoE injector makes it is easy to bring power to the unit eliminating the need to run addition power sources.
If you own a SonicWALL wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SonicWALL SonicPoint ACe Wireless Access Point 01-SSC-0868:
Specifications
    Hardware
    PoE Power Requirements 802.3at
    Power Supply 802.3at + AC Adapter (12 V)
    Power Consumption 15.2 W (maximum)
    Status Indicators 6 x LED (WLAN/Link) (LAN/Link) Power, Test
    Antennas 3+3 (SMA 2.4 GHz + TNC 5 GHz)
    Ethernet Ports 2 x 10/100/1000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE)
    1 x RJ-45 console
    1 x USB 2.0
    Mounting Wall or ceiling mount kit
    Virtual Access Points Up to 8 per SonicPoint
    Maximum Clients Supported 256 (128 per radio)
    Chassis UL2043 plenum rated
    Standards and Certifications
    Compliance IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11i, IEEE 802.3e, IEEE 802.3i, IEEE 802.3at, WPA/WPA2, TKIP, AES
    Regulatory FCC/ICES Class B, CE, RCM/ACMA, VCCI Class B, TELEC, BSMI, NCC, MSIP, ANATEL, Customs Union, RoHS (Europe/China), WEEE
    Certifications Pending Wi-Fi, Dynamic Frequency Selection (DFS)
    Safety UL, cUL, TUV/GS, CB, CE, BSMI, Mexico CoC, Customs Union
    Environmental
    Temperature 32 to 104°F / 0 to 40°C
    Humidity 10 - 95% (non-condensing)
    Radio Specifications
    Supported Radios Dual: 3x3 11n + 3x3 11ac
    Frequency Bands 802.11a: 5.180-5.825 GHz
    802.11b/g: 2.412-2.472 GHz
    802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz
    802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz
    Operating Channels 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4
    802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only)
    802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13
    802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
    802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
    Transmit Output Power Based on the regulatory domain specified by the system administrator
    Transmit Power Control Supported
    Data Rates Supported 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel
    802.11b: 1,2,5.5,11 Mbps per channel
    802.11g: 6,9,12,18,24,36,48,54 Mbps per channel
    802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel
    802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel
    Modulation Technology Spectrum 802.11a: Orthogonal Frequency Division Multiplexing (OFDM)
    802.11b: Direct Sequence Spread Spectrum (DSSS)
    802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS)
    802.11n: Orthogonal Frequency Division Multiplexing (OFDM)
    802.11ac: Orthogonal Frequency Division Multiplexing (OFDM)
    Security
    Data Encryption WPA2; IPSec, 802.11i, WPA; 64/128/152-bit WEP, TKIP, AES, SSL VPN
    (When used with Dell SonicWALL Secure Remote Access Series appliance)
    User Authentication
    Authentication RADIUS, Active Directory, Novell e-Directory, SAMBA, single sign-on (SSO)
    Dimensions & Weight
    Dimensions 6.9 x 1.5" / 175 x 38 mm
    Weight 1.2 lb / 0.53 kg
    PoE Injector
    Hardware Number of Ports
    2: 2 x Data In; 1 x data and power out
    Connectors
    Shielded RJ-45, EIA 568A and 568B
    Indicators
    System indicator: AC power (green); User indicator: channel power active (green)
    Data Rate
    10/100/1000 Mbps
    Power Over LAN Output Pin Assignment and Polarity
    4/5 (+), 7/8 (-)
    Output Power Voltage
    -48 VDC
    User Port Power
    30 W minimum
    Input Power Requirements AC Input Voltage
    100 to 240 VAC
    AC Frequency
    50 to 60 Hz
    AC Input Current
    0.8 A at 100 to 240 VAC
    Standards and Compliance Regulatory Compliance
    CE, RoHS, WEEE
    Electromagnetic Emission and Immunity
    EN 55022 Class B (Emissions), FCC Part 15, Class B EN 55024 (Immunity), VCCI
    Safety
    UL/cUL 60950-1, GS Mark per IEC 60950-1
    Operating Temperature 32 to 104 °F / 0 to 40 °C
    Operating Humidity 90% maximum (non-condensing)
    Storage Temperature -4 to 158 °F / -20 to 70 °C
    Storage Humidity 95% maximum (non-condensing)
    Operating Altitude -1,000 to 10,000 ft. / -304.8 to 3,048 m
    Dimensions 1.22 x 1.97 x 6.30" / 31 x 50 x 160 mm
    Weight 0.5 lb / 0.3 kg
    Packaging Info
    Package Weight 6.1 lb
    Box Dimensions (LxWxH) 18.0 x 12.2 x 6.4"
